- Sku: 1640112

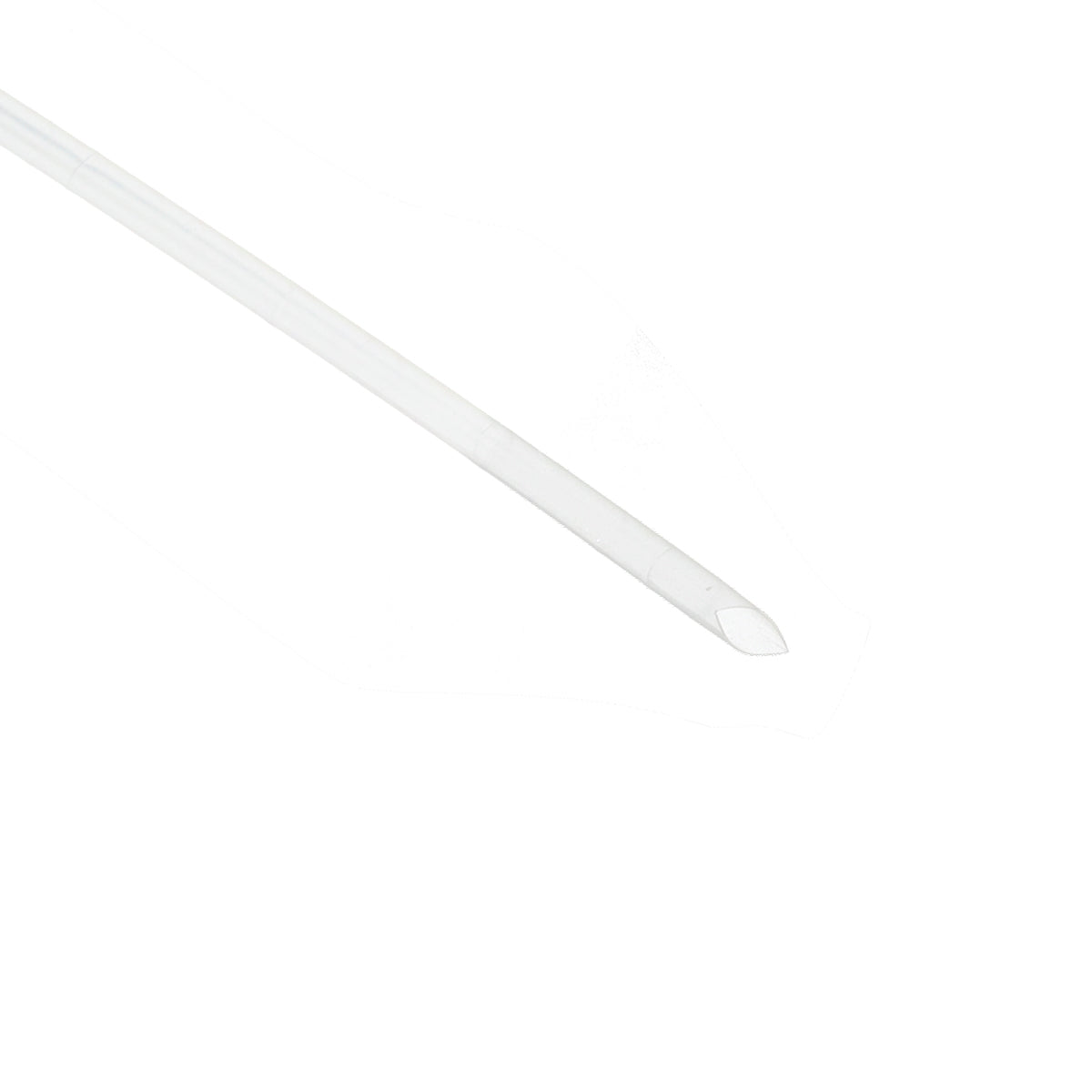

Kynar® Transparent/Clear Heat Shrink Cable Sleeving/Tubing
Order by 2pm for next day UK delivery*
Product out of stock? Size not available? CONTACT US
Get Your Sleeving Cut to Length
Get Your Sleeving Cut to Length
Save time and money
Minimum order is just one reel
Add a note to your order with the required length and we'll get back to you with a quote
DESCRIPTION
Our heat shrink sleeving is the perfect way to protect your cables. Made from Polyvinylidene Fluoride, KYNAR ®, it is resistant to flames and most industrial fuels, solvents, and chemical agents. With a heat shrink ratio of 2:1, it provides superior protection against abrasion and perforation. The operating temperature range of -55 to +175 degrees Celsius makes it ideal for a wide variety of applications.
The sleeving has thin walls making it semi-rigid and flexible while still being highly durable. This clear tubing provides superior visibility of cables and wire harnesses and quickly and evenly covers wires, cables, terminations and other components.
Clear heat shrink sleeving is perfect for areas where you need to maintain a high level of visibility such as on circuit boards or when splicing multiple cables together. The sleeving is extremely tough and you won’t need to worry about abrasion, cuts, fluids, mechanical damage or strain, it is also highly flame-retardant.
Clear heat shrink sleeving can be shrunk using a heat gun or a heat shrink oven; however, before heating always check to ensure you know the correct heating temperature of your tubing.
APPLICATIONS
- Component protection
- Strain relief of wire, connectors, solder joints, switches
- Suitable for use in harsh, hostile environments
- Aerospace and defense applications
TECHNICAL INFO
| PROPERTY | TEST METHOD | VALUES |
| Tensile Strength | IEC 60684-2 Clause 19.1 and 19.2 | 35 Mpa (min) |
| Ultimate Elongation | IEC 60684-2 Clause 19.1 and 19.2 | 150% (min) |
| Heat Shock | IEC 60684-2 Clause 6 (4hrs at 300°C) | no dripping, cracking or flowing of outer wall |
| Heat Ageing | IEC 60684-2 Clause 39 (168hrs at 200°C) | - |
| Heat Ageing (Tensile Strength) | Clause 19.1 and 19.2 | 15 Mpa (min) |
| Heat Ageing (Ultimate Elongation) | Clause 19.1 and 19.2 | 75% (min) |
| Corrosion (Copper Mirror) | IEC 60684-2 Clause 33 | no corrosion |
| Electric Strength | - | 32KVolts/mm |
| Resistance to Selected Fluids | IEC 60684-2 Clause 36 | excellent (for list of fluids and test temperatures please ask) |
| Resistance to Selected Fluids (Tensile Strength) | Clause 19.1 and 19.2 | 25 MPa (min) |
| Resistance to Selected Fluids (Ultimate Elongation) | - | 150% (min) |
| Fungus Resistance | ISO 846 Method B | - |
| Fluid Resistance (Tensile Strength) | IEC 60684 - 2 Clause 19.1 and 19.2 | 35 Mpa (min) |
| Fluid Resistance (Ultimate Elongation) | - | 150% (min) |
FEATURES AND BENEFITS
- Outstanding abrasion resistance
- Excellent resistance to chemicals
- Excellent resistance to solvents
- High temperature performance
- Self-extinguishing
- Flame retarded
- Transparent material – allows visual inspection
- Very good electrical and mechanical properties
MATERIAL DATA
|
Shrink ratio |
2:1 |
|
Operating Temperature Range |
-55ËšC to 175ËšC |
|
Shrink Temperature |
170ËšC |
APPROVALS
|
Military |
AMS-DTL 23053/8, DEF STAN 59-97, VG 95343 Pt5 |
|
Underwriters Lab |
UL 224 VW1, 600V, 125ËšC FILE N0. E196685 |
|
CSA |
LR 31929, 600V, 125ËšC (OFT) FILE NO. LR228795 |
PRICE MATRIX
|
SIZE |
1-999 MTRS |
1000-2999 MTRS |
3000 MTRS + |
|
1.6mm |
£1.53 |
£1.43 |
£1.33 |
|
2.4mm |
£1.68 |
£1.57 |
£1.46 |
|
3.2mm |
£2.13 |
£1.99 |
£1.85 |
|
4.8mm |
£2.74 |
£2.56 |
£2.37 |
|
6.4mm |
£3.84 |
£3.58 |
£3.33 |
