- Sku: 7600101

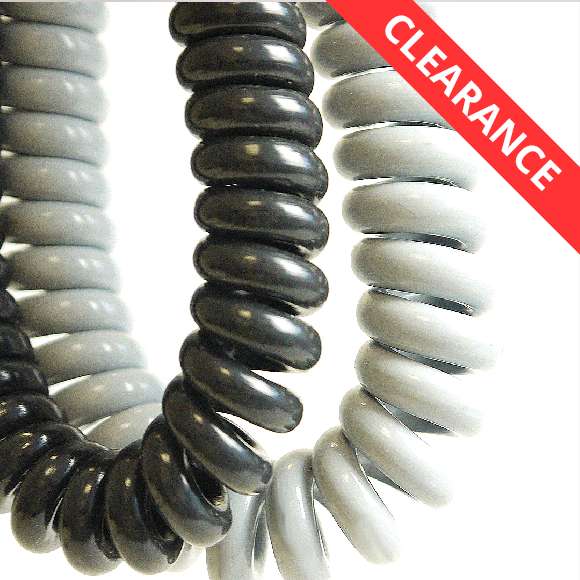

Croyflex PVC PUR 3-Core Coiled Cable
£1.10 GBP
Order by 2pm for next day UK delivery*
Product out of stock? Size not available? CONTACT US
DESCRIPTION
Coiled cables can be extended to a length several times greater than their ‘at-rest’ length and subsequently return to their original length once released.
APPLICATIONS
- Household appliances
- Stair lifts
- Connections between rail carriages
- Retail displays
- Lighting
- Automated Equipments
- Generators
- Portable appliances
TECHNICAL INFO
| Size (mm2) | AMP | At rest Length | Relaxed Length | Working Length | Cable Diameter (mm) | Copper Strands |
| 3 core x 0.25 | 1 | 300 mm | 500mm | 1250mm | 4.2 | 30 x 0.1mm |
| 3 core x 0.75 | 6 | 350 mm | 500mm | 1250mm | 6.8 | 40 x 0.15mm |
| 3 core x 1 | 10 | 400 mm | 500mm | 1250mm | 7.2 | 53 x 0.15mm |
| 3 core x 1.5 | 13 | 300 mm | 500mm | 1250mm | 8.4 | 78 x 0.15mm |
FEATURES AND BENEFITS
- Flexibility
- Expandable
- Good resilience
MATERIAL DATA
| Product Code | 760 |
| Sheath and Core Insulating Material | PVC |
| Standard Colour | Black, White |
| Operating Temperature (static) – °C | -20 -70 |
| Current Rating - A | 1 |
| Cores per cable | 3 |
| Cross sectional area/ core – mm2 | 0.25 |
PRICE MATRIX
| SIZE | Price per Length |
| 1A 3 X 0.25MM | £1.0970 |
| 6A 3 X 0.75MM | £1.9428 |
| 10A 3 X 1MM | £2.3314 |
| 13A 3 X 1.5MM | £3.5306 |
