- Sku: 41013

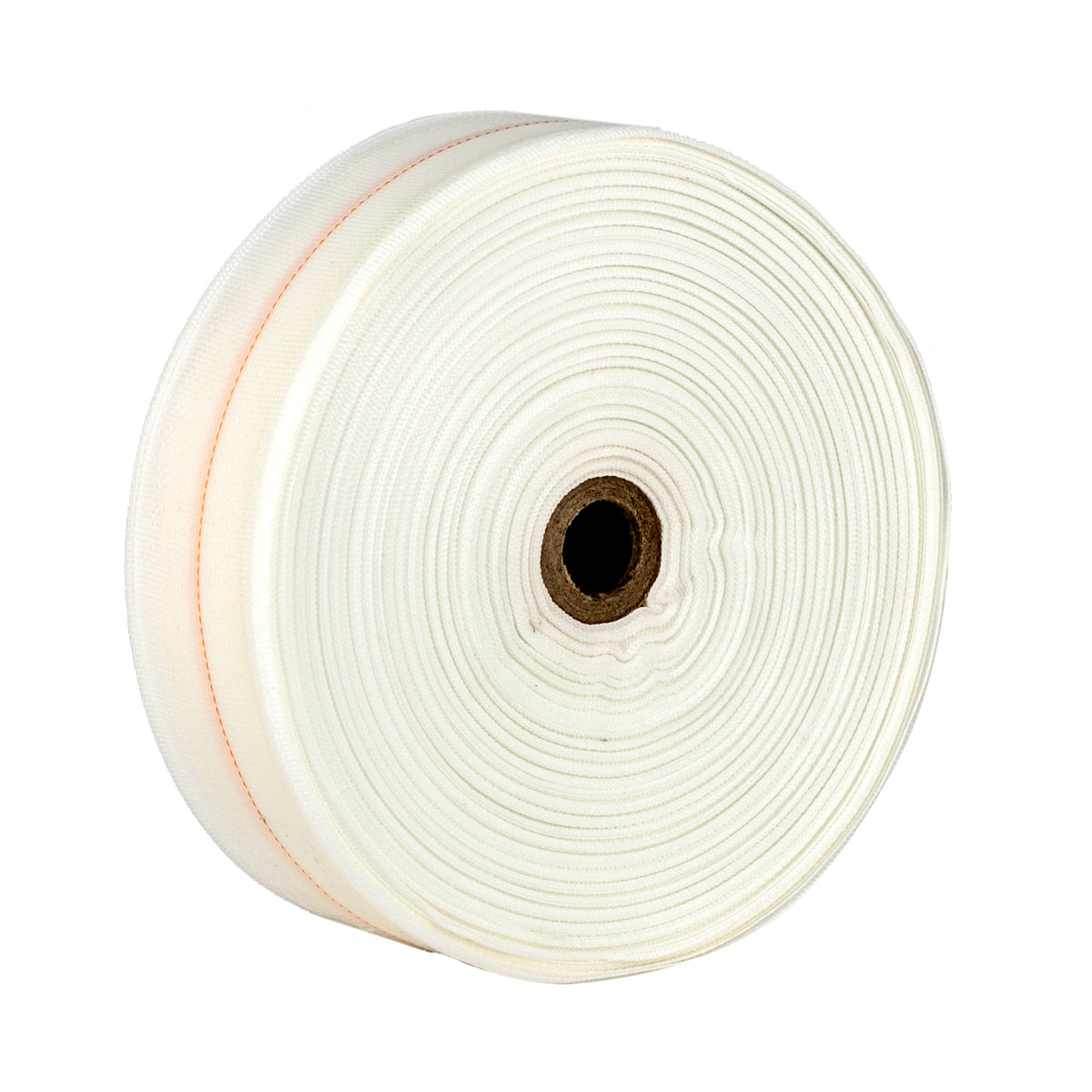

CroyTape Terylene
£2.62 GBP
Order by 2pm for next day UK delivery*
Product out of stock? Size not available? CONTACT US
DESCRIPTION
This tape exhibits excellent handling characteristics and will ‘bed down’ readily on hand taping. This type of product is used in a wide range of electrical equipment and is often employed in Class F (150 °C) rotating machines where an impregnated varnish or resin enhances the thermal ageing characteristics of the yarn.
Exposure at high temperatures will result in a linear shrinkage which can be utilised to consolidate base insulation and improve space factor.
APPLICATIONS
- Wrapping coils
- Tying
- Rotating machines
TECHNICAL INFO
| Unit | Nominal | Tolerance | |
| Thickness | Mm | 0.13 | ±1.02 |
| Weight | g/m2 | 78 | ±8 |
| Tensile strength | N/mm | 11 | ±3 |
| Warp Density | Threads/cm | 40 | ±2 |
| Material: Polyester | dtex | 78 | |
| Weft Density | Threads/cm | 16 | ±1 |
| Material: Polyester | dtex | 110 | |
| Material: Polyester yarn | dtex | 78 | |
| Operating temp. (Class F.) | °C | 155 | |
| Shrink (1h 150°C) | % | 4 |
FEATURES AND BENEFITS
- Compatible with impregnation
- Length: 50M
- Good tensile strength
- Shrinkable
MATERIAL DATA
| Product Code | 410 |
| Material | Polyester |
| Standard Colour | Natural |
| Total Thickness – mm | 0.13 ± 0.02 |
| Operating Temperature – °C | 155 (Class F) |
| Tensile Strength – N/mm | 11 ± 3 |
PRICE MATRIX
|
Size |
Price per Roll |
|
13 mm |
£2.62 |
|
20 mm |
£4.01 |
|
25 mm |
£5.02 |
|
30 mm |
£5.48 |
|
40 mm |
£6.78 |
