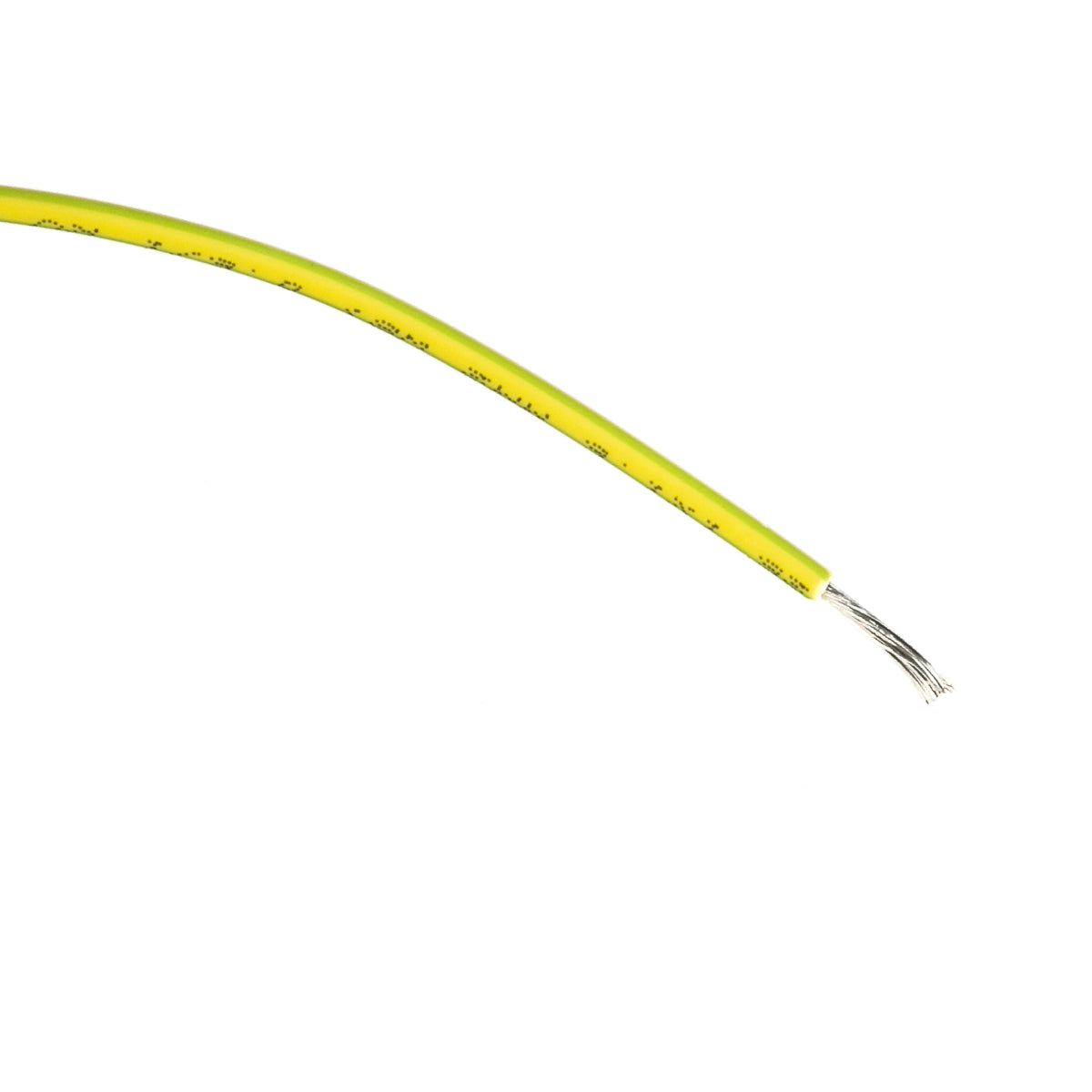

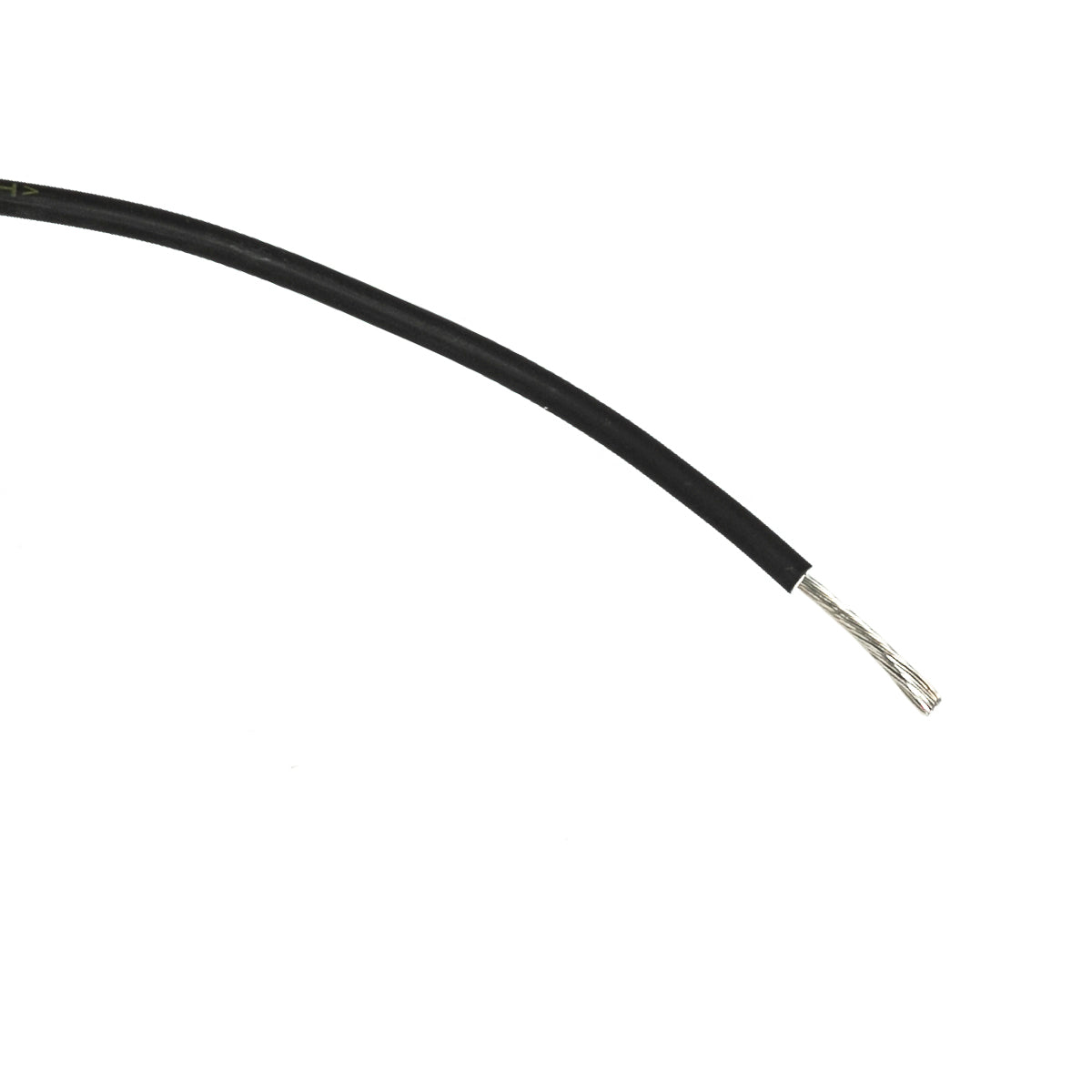

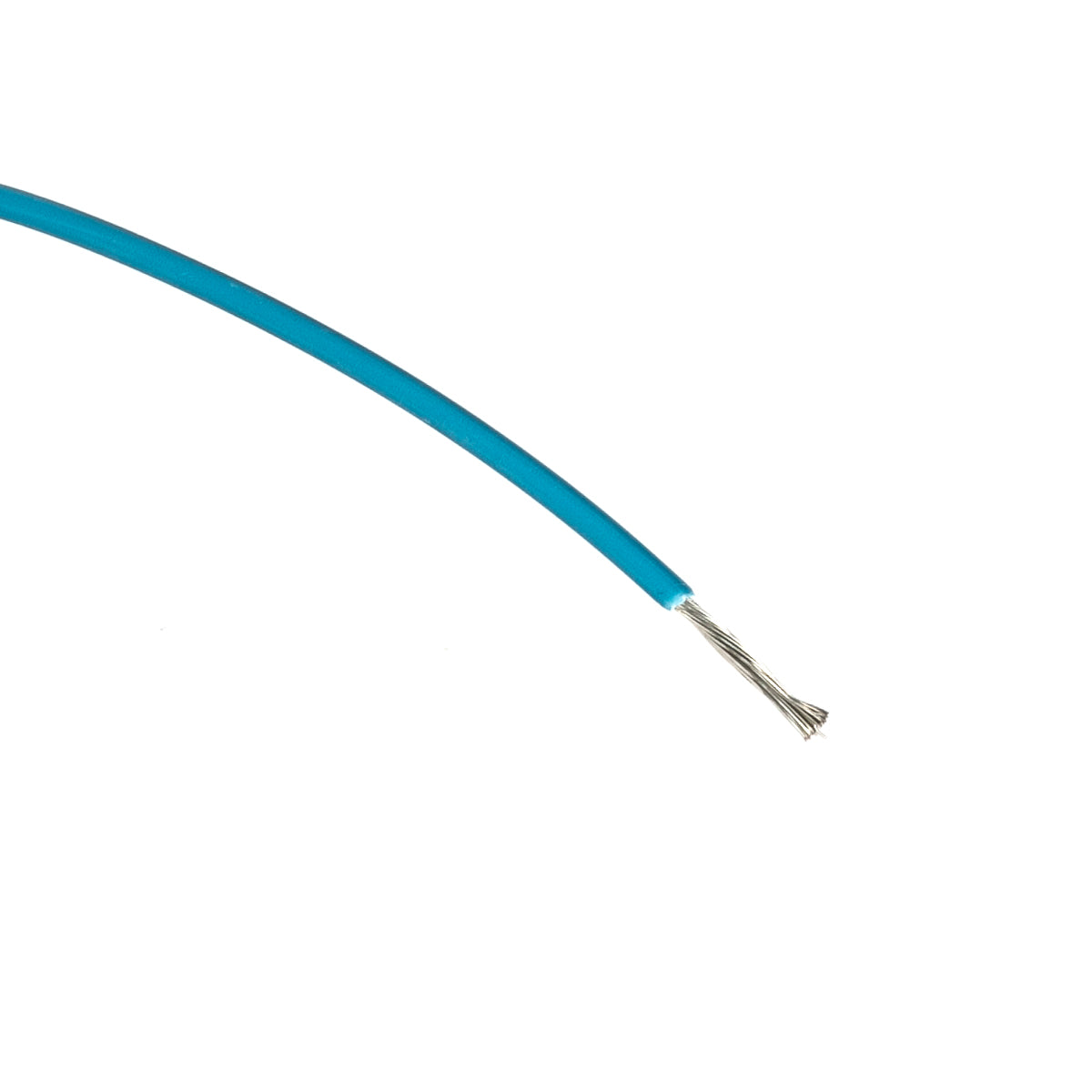

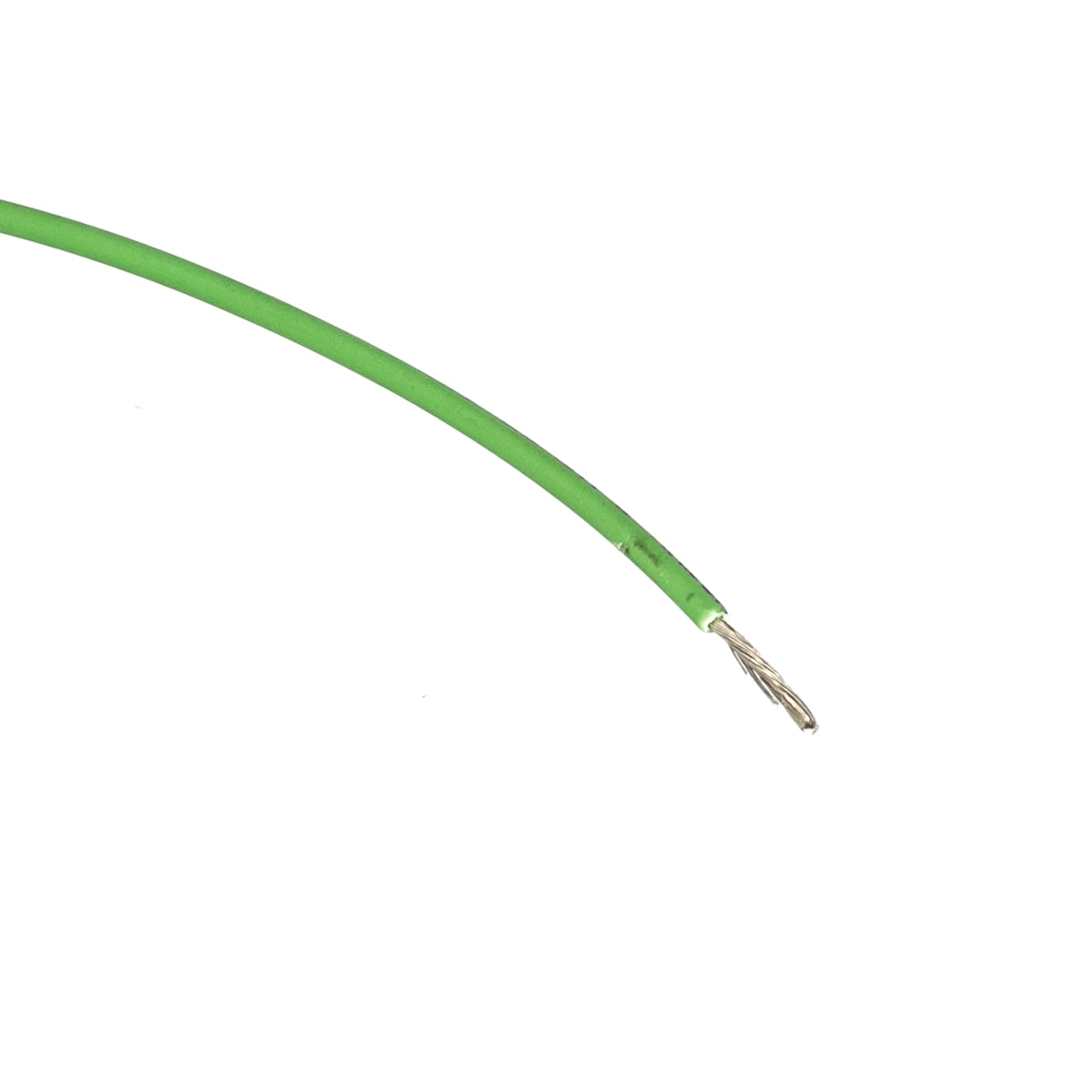

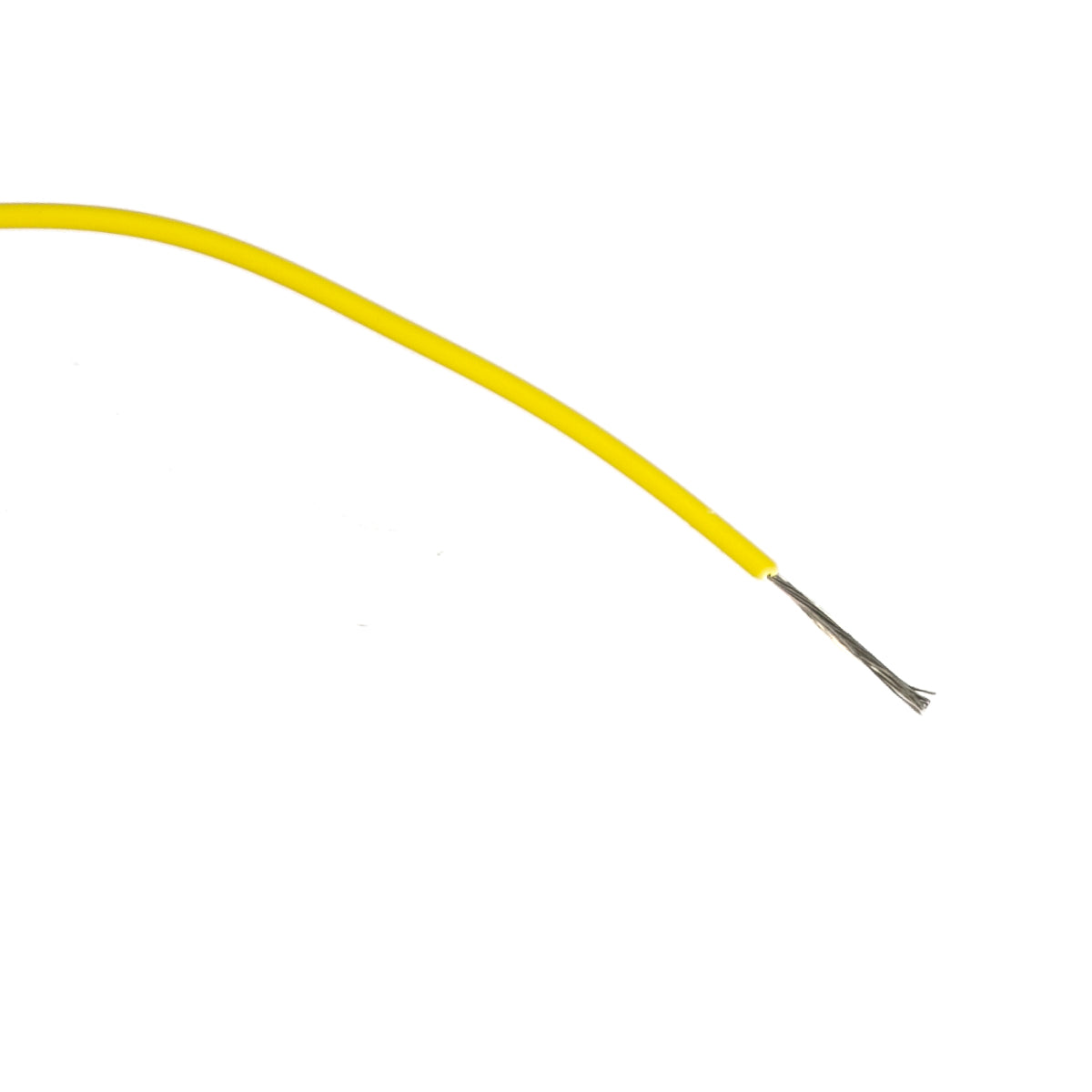

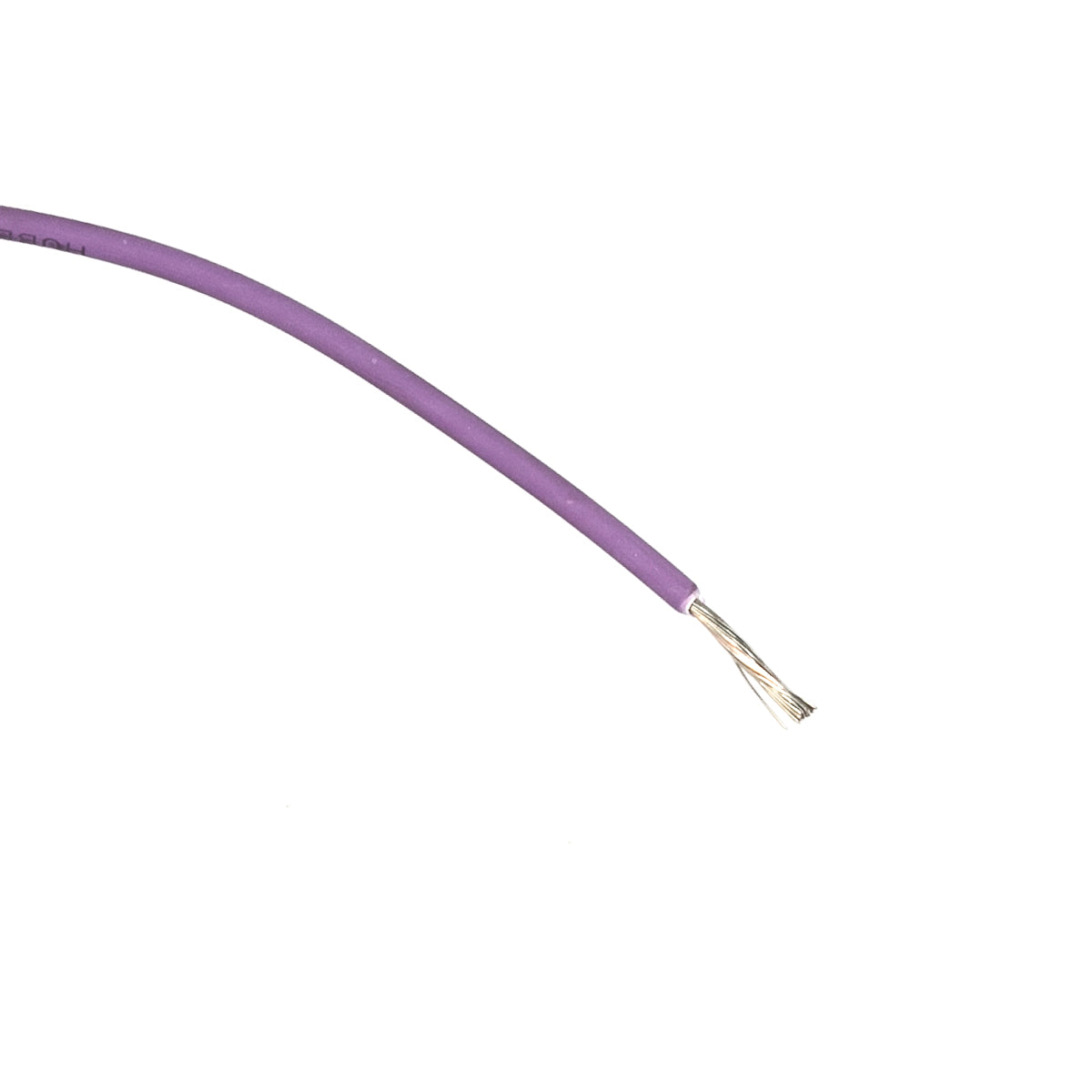

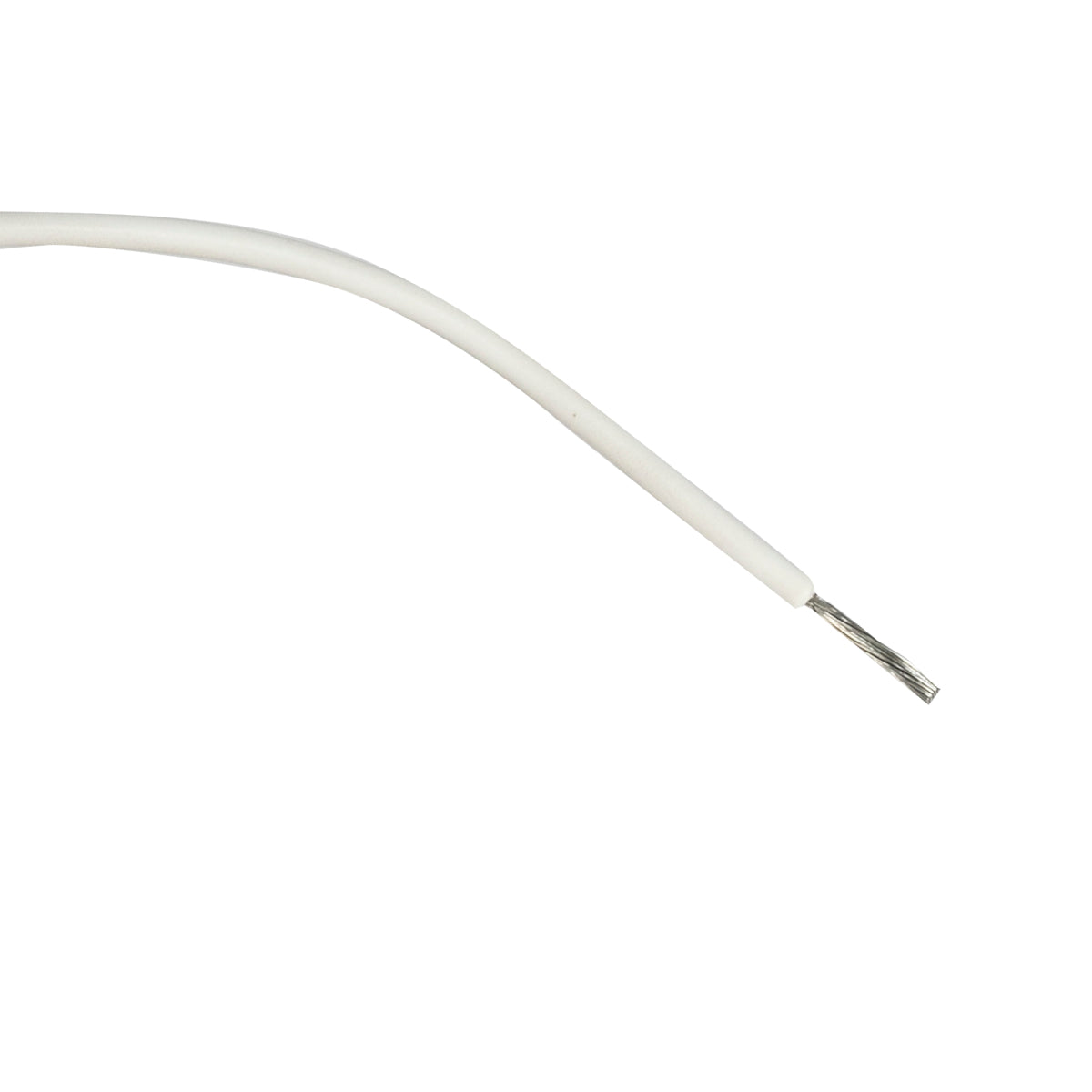

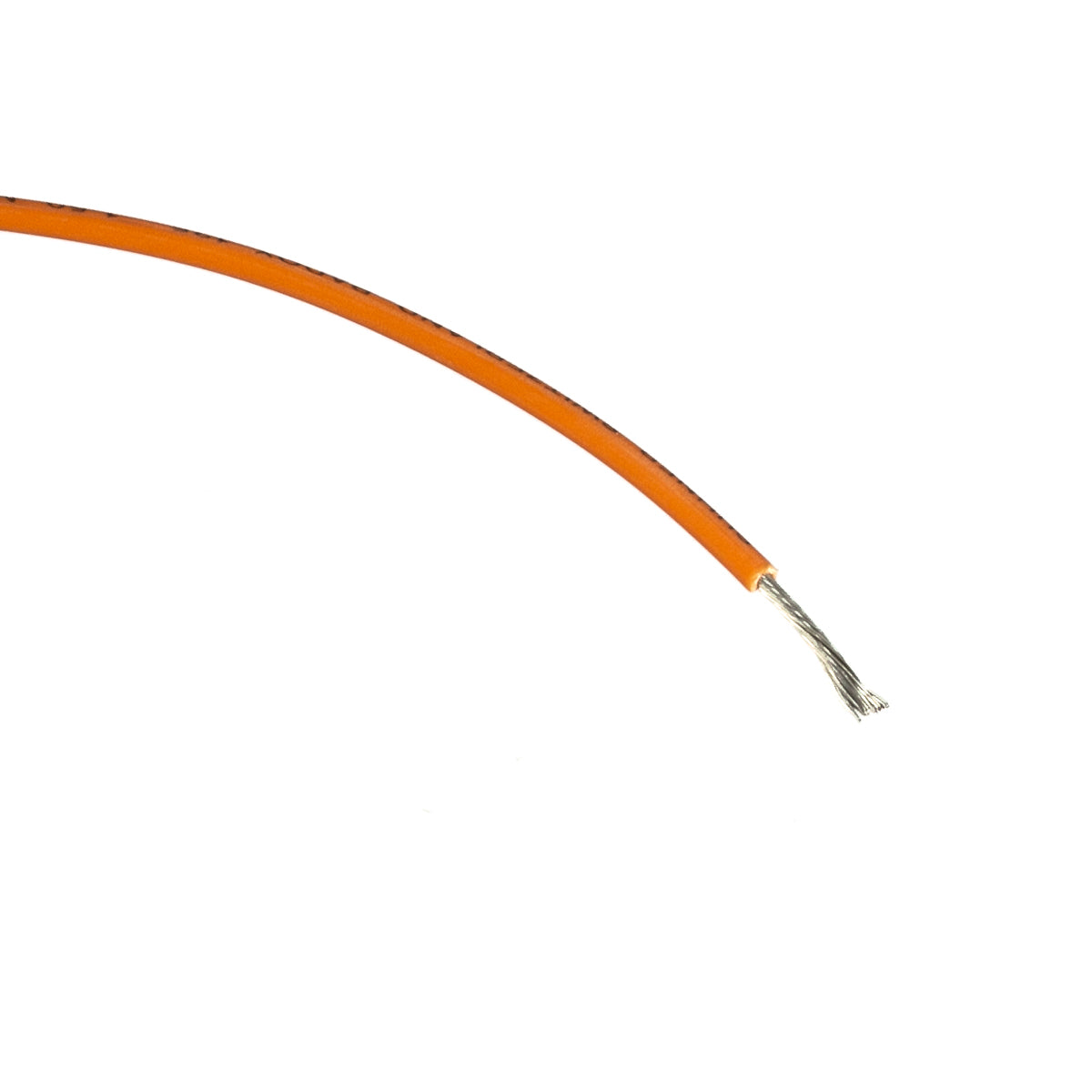

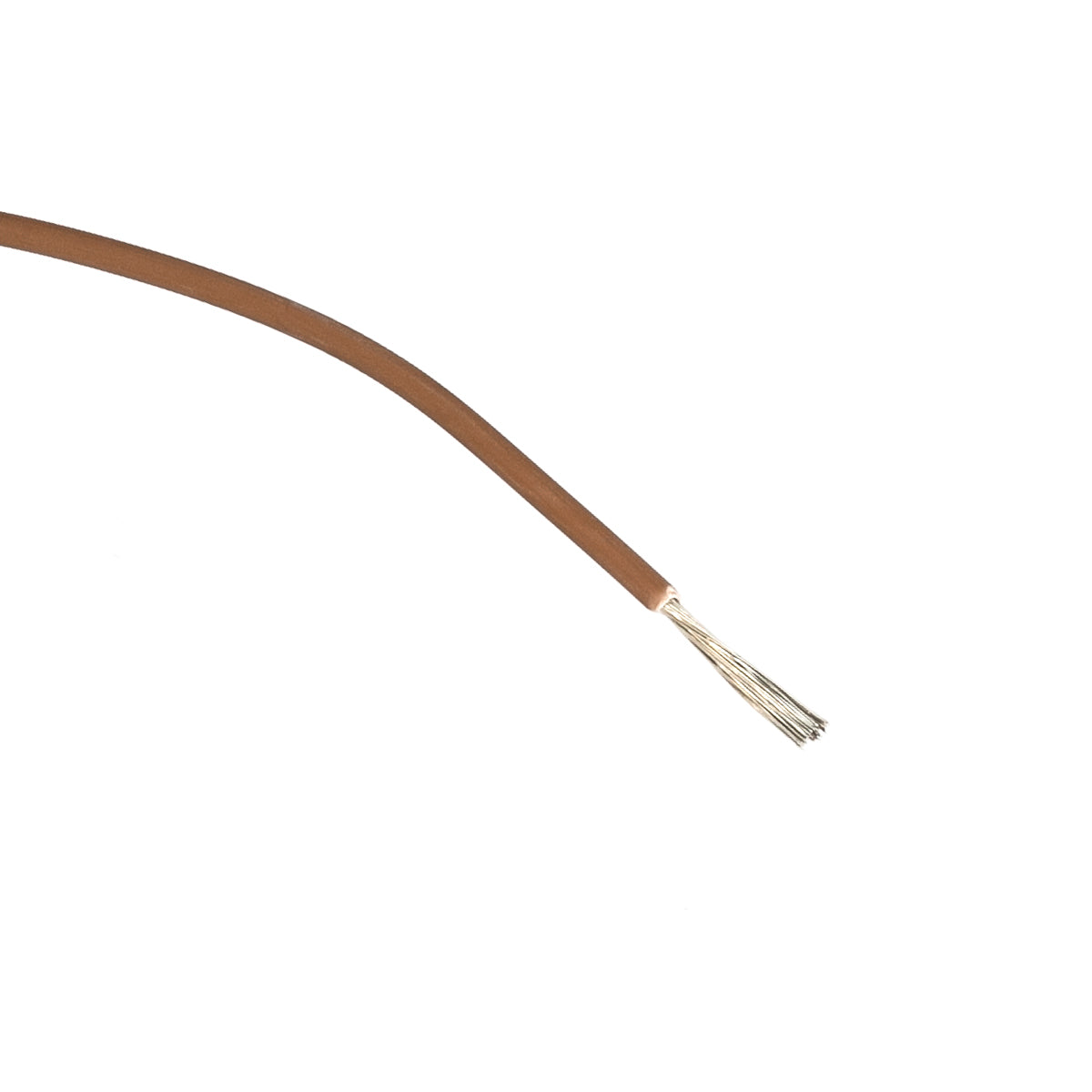

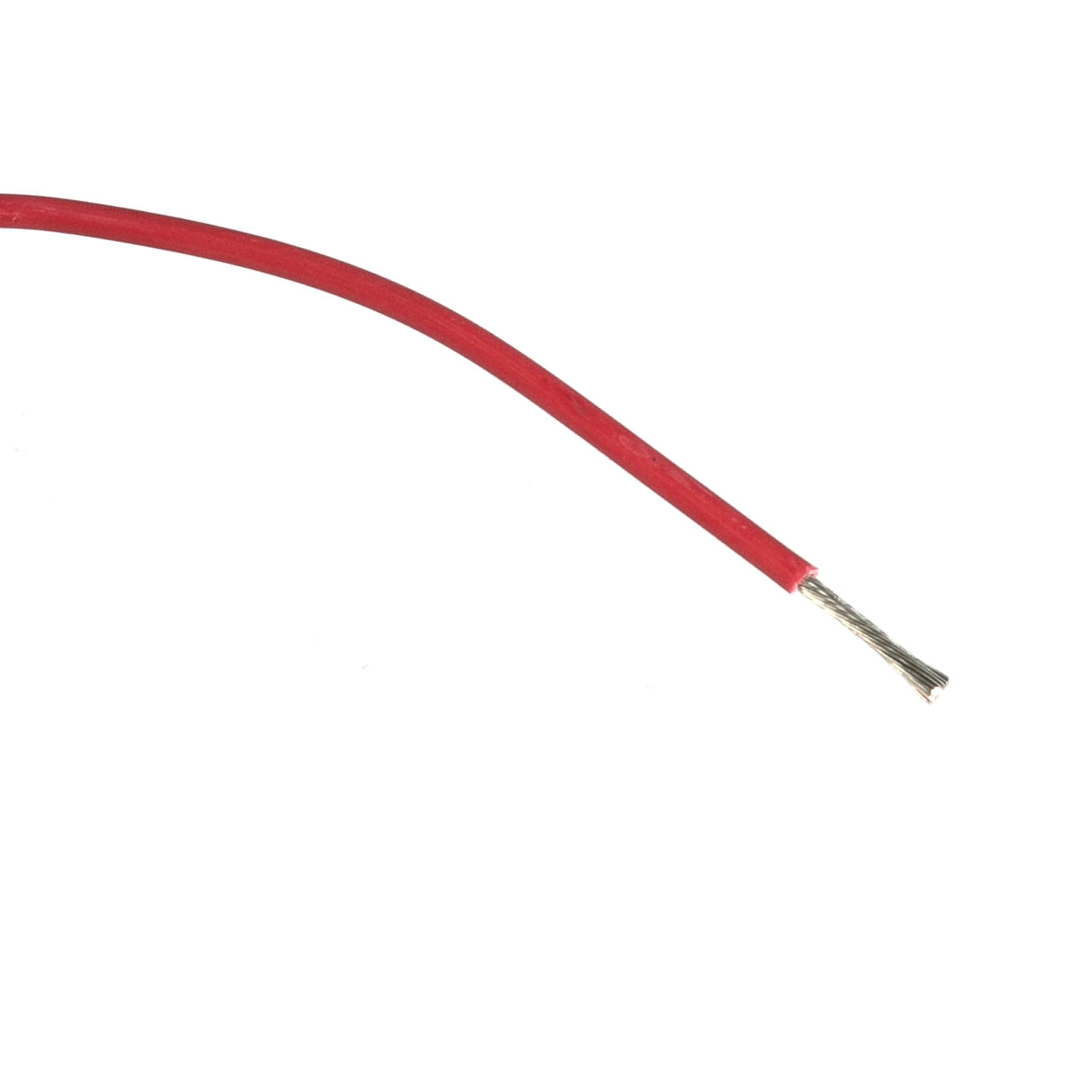

HUBER+SUHNER Radox 125 Cross-linked LFZH Cable

Cable Colour
Cable Size
Price per Reel (100m per Reel)
£32.76 GBP
 per ................

Order by 2pm for next day UK delivery*

Product out of stock? Size not available? CONTACT US

View full details

DESCRIPTION

Huber+Suhner's Radox 125 is the best cable option for high-performance power transmission in challenging conditions.

The Radox 125 cable is made of premium materials and state-of-the-art technology and is intended to endure severe temperatures, abrasion, chemicals, and UV radiation. Its sturdy design offers optimum dependability and longevity, making it the ideal choice for demanding applications in sectors including infrastructure, transportation, maritime, and energy.

This high quality cable has a flexible and simple installation design and offers exceptional resistance to mechanical stress and impact, enabling a longer service life and lower maintenance costs. In comparison to conventional cable solutions, it is safer and more environmentally friendly with minimal smoke and toxin emissions.

With a voltage rating of up to 1.8/3 kV and a temperature range of -40 °C to +125 °C, the Radox 125 offers unparalleled performance and versatility. Whether you need to power heavy machinery, locomotives, or offshore installations, this cable can handle it all.

Invest in the Huber+Suhner Radox 125 cable today and experience superior quality, reliability, and performance like never before.

PLEASE NOTE: for sizes 10mm+ if a full reel is not required, we will cut to length. Either use the Custom Size form or phone our sales team to order.

APPLICATIONS

For protected and fixed installation inside electrical equipment, especially suitable for the connection of motor windings, switchboards, magnets and transformers.

TECHNICAL INFO

Temperature range -40°C to 125°C
Maximum permitted operating temperature of the conductor EN50565/IEC 60092 90°C
Short circuit temperature rating of the conductor EN50565/IEC 60092 250°C
Minimum bending radius, Outer diameter ‰¤ 12 mm 3 x D
Minimum bending radius, Outer diameter > 12 mm 4 x D

FEATURES AND BENEFITS

  • Electron beam crosslinked isolation
  • Excellent at high temperatures
  • Low temperature, ozone, weathering and abrasion resistance
  • Small amount of smoke
  • Halogen free
  • Flame-retardant
  • Soldering iron resistant
  • Easy to strip and process, flexible

MATERIAL DATA

Conductor : Stranded tin plated copper, EN 60228 / IEC 60228 cl. 5

Insulation : RADOX 125 Type EI5 modified, EN 50363- 5 Type HF90 modified, IEC 60092- 360 extruded irradiation crosslinked polyolefin

PRICE MATRIX

SIZE

COLOUR

UP TO 499 MTS

500-999 MTS

1000-4999 MTS

0.25MM

ALL COLOURS

£0.3276

£0.3058

£0.2839

0.5MM

ALL COLOURS

£0.3866

£0.3608

£0.3350

0.75MM

ALL COLOURS

£0.4236

£0.3954

£0.3671

1MM

ALL COLOURS

£0.5016

£0.4682

£0.4347

1.5MM

ALL COLOURS

£0.6350

£0.5926

£0.5503

2.5MM

ALL COLOURS

£0.8376

£0.7813

£0.7255

4MM

ALL COLOURS

£1.3587

£1.2681

£1.177

6MM

ALL COLOURS

£2.1585

£2.0146

£1.8707

10MM

ALL COLOURS

£2.8752

£2.6835

£2.4918

16MM

ALL COLOURS

£4.1250

£3.8500

£3.5750

25MM

ALL COLOURS

£6.1451

£5.7354

£5.3257

35MM

ALL COLOURS

£8.3748

£7.8165

£7.2582

50MM

ALL COLOURS

£12.0558

£11.2521

£10.4484

70MM

ALL COLOURS

£15.2463

£14.2299

£13.2135
