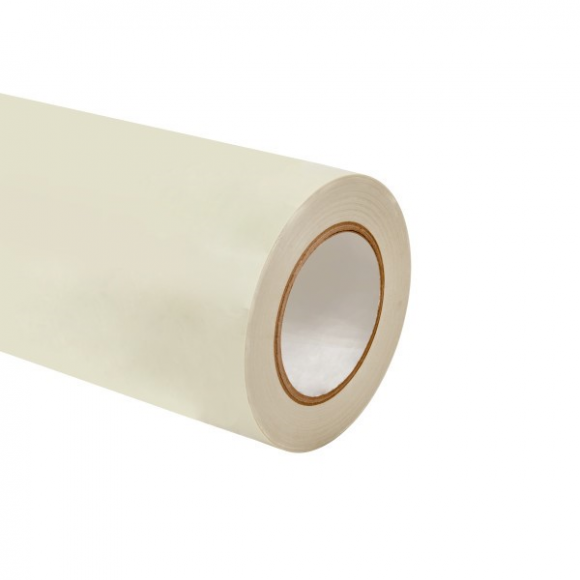

3M™ Super 10 Tape

3M™ Epoxy Film Electrical Tape Super 10 is a 0.13 mm thick, high dielectric electrical tape. The flame retardant tape is used as a coil cover, anchor, harnessing, banding, core, layer and crossover insulation. This tape is 600V rated and withstands a temperature range of 0 to 155 °C.

3M™ Epoxy Film Electrical Tape Super 10 has a thermosetting, pressure sensitive, rubber adhesive and is resistant to heat, oxidation, solvents and oils. This puncture resistant tape has excellent electrical and handling properties. This highly conformable tape is tough and provides resistance to solder damage. UL Listed and RoHS 2011/65/EU Compliant.

• Commonly used in wrapping relays, coils, transformers, bobbin-wound sub-fractional horsepower shaded-pole motors
• Suitable for use as a coil cover
• Anchor
• Stick-wound or arbor wound coils and wire harnesses
• Banding and as core, layer and crossover insulation

• The combination of pressure-sensitive, thermosetting, rubber adhesive and epoxy film backing provides good adherence and electrical purity
• Designed for continous operation not exceeding 155°C (311°F) per UL and 130°C (266°F) per CSA listing
• UL Component recognized: UL510A standard, Catergory OANZ2, File No.E17385
• CSA Certified: Standard C22.2 No.66, File No. 093411, Class 9052-30
• RoHS 2011/65/EU Compliant
