- Sku: 7202501

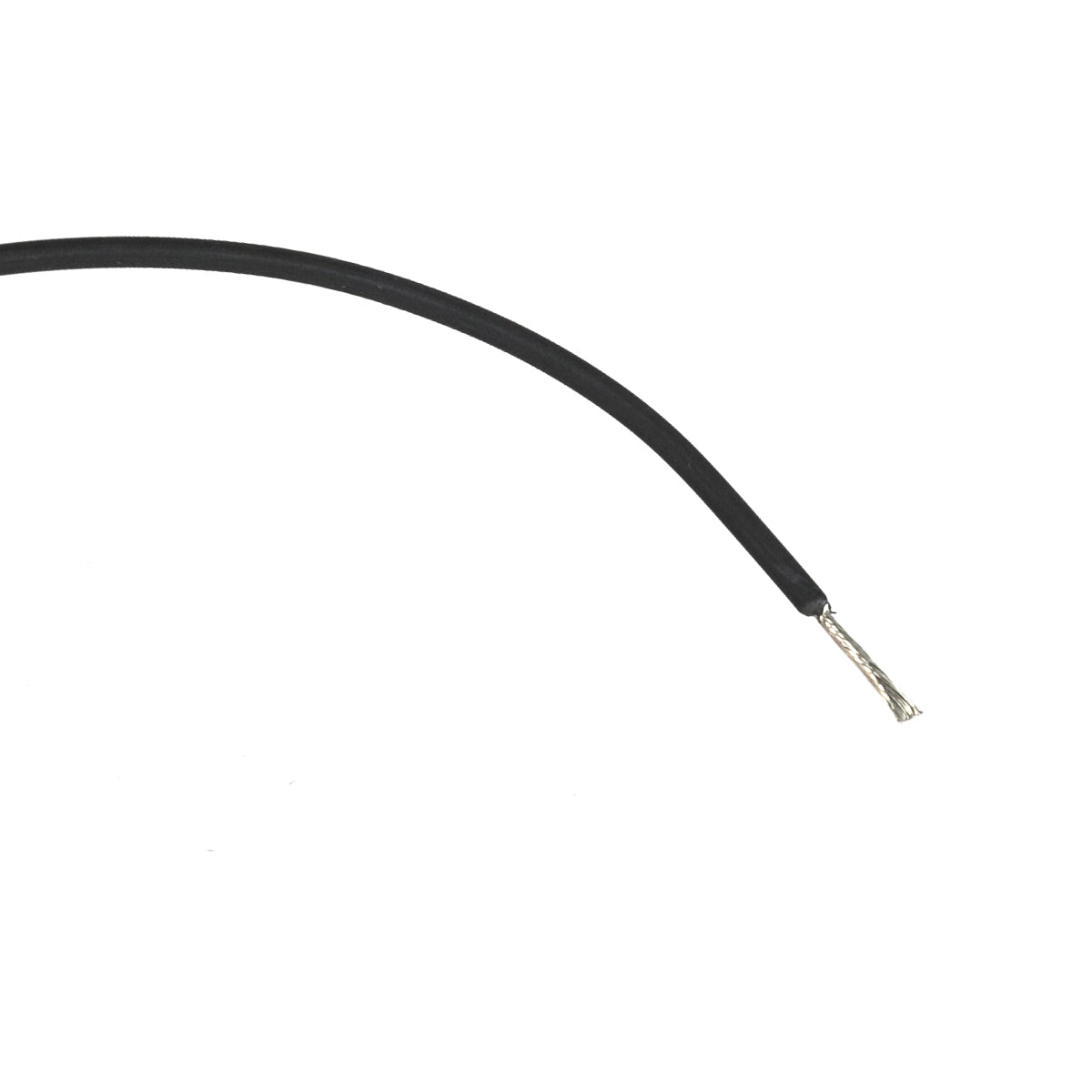

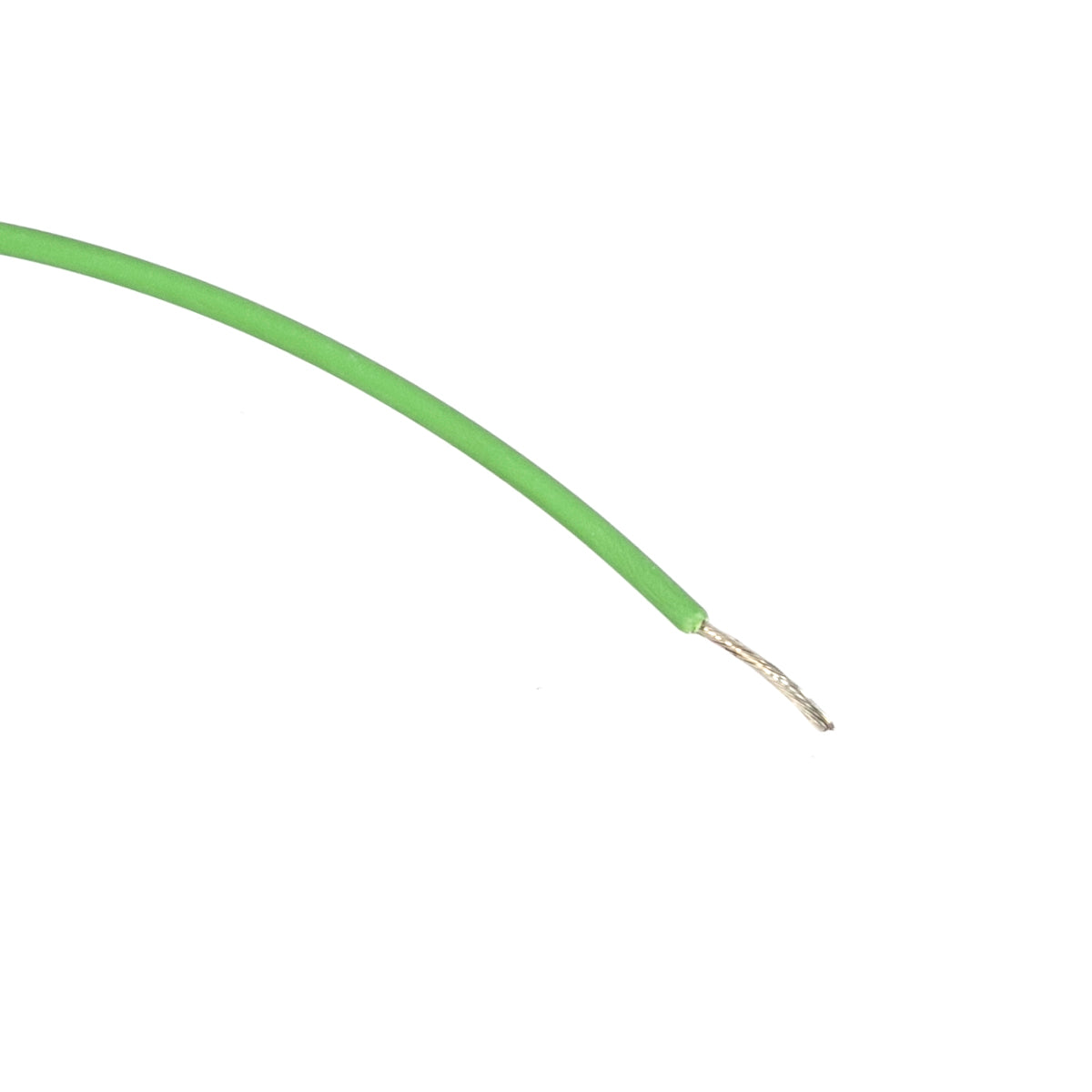

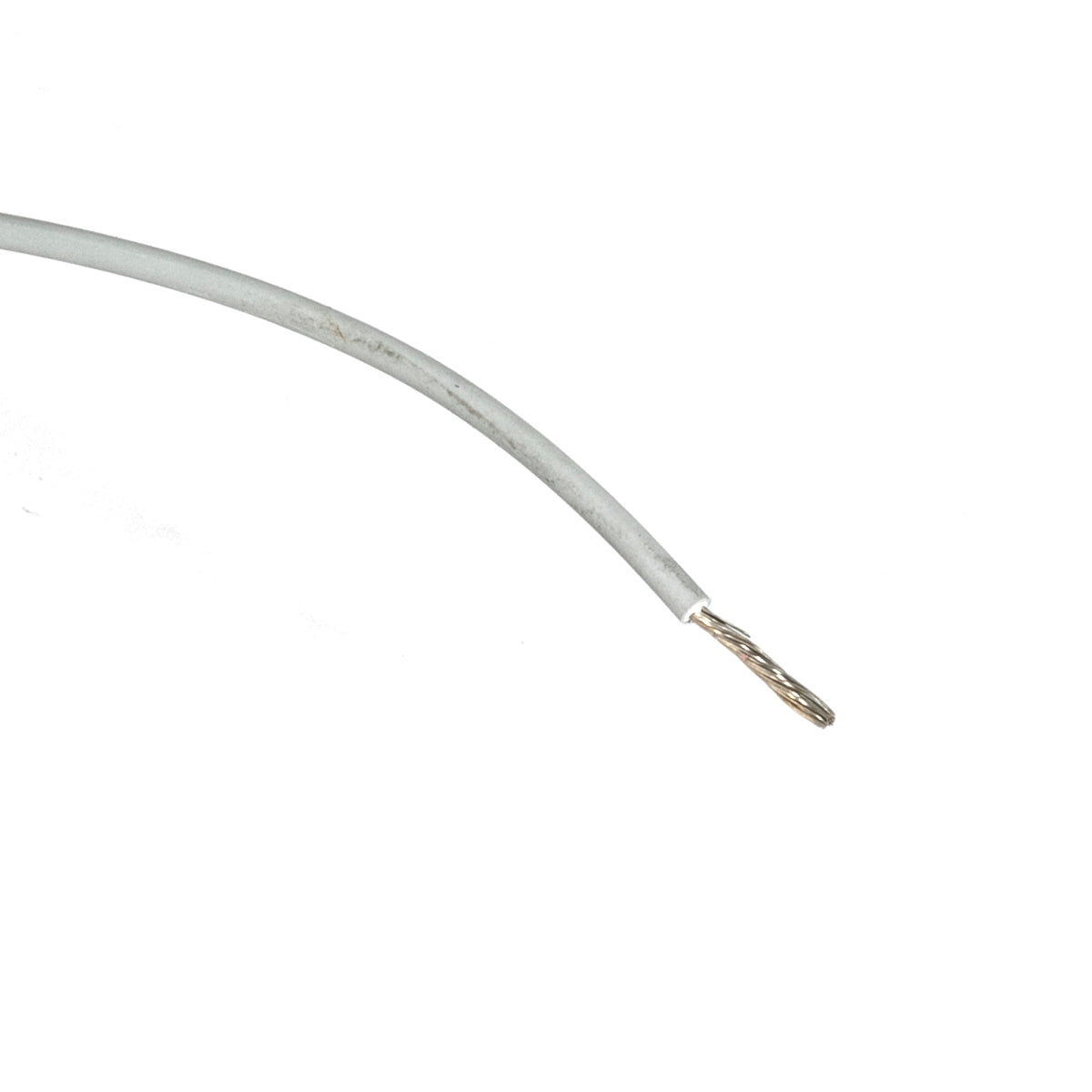

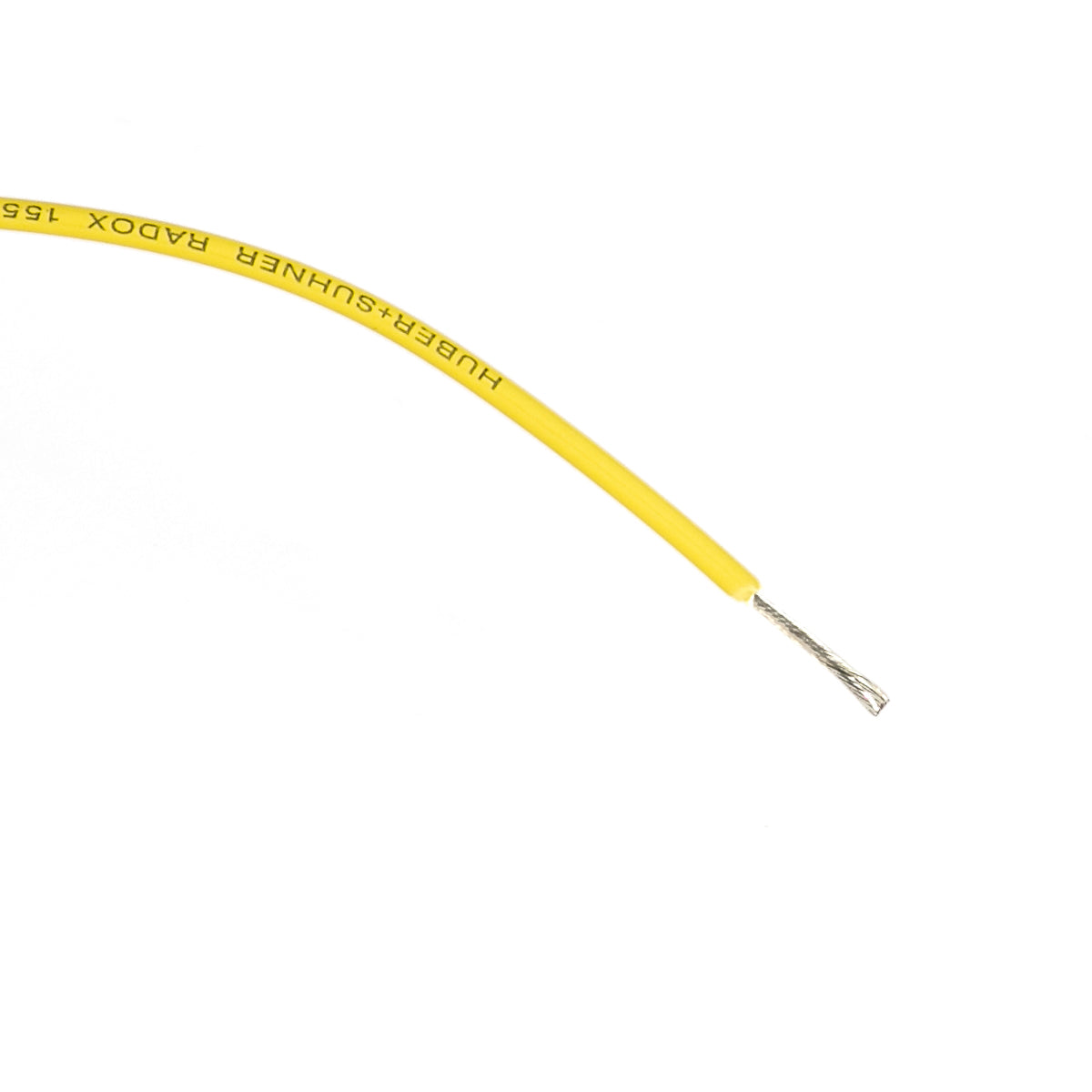

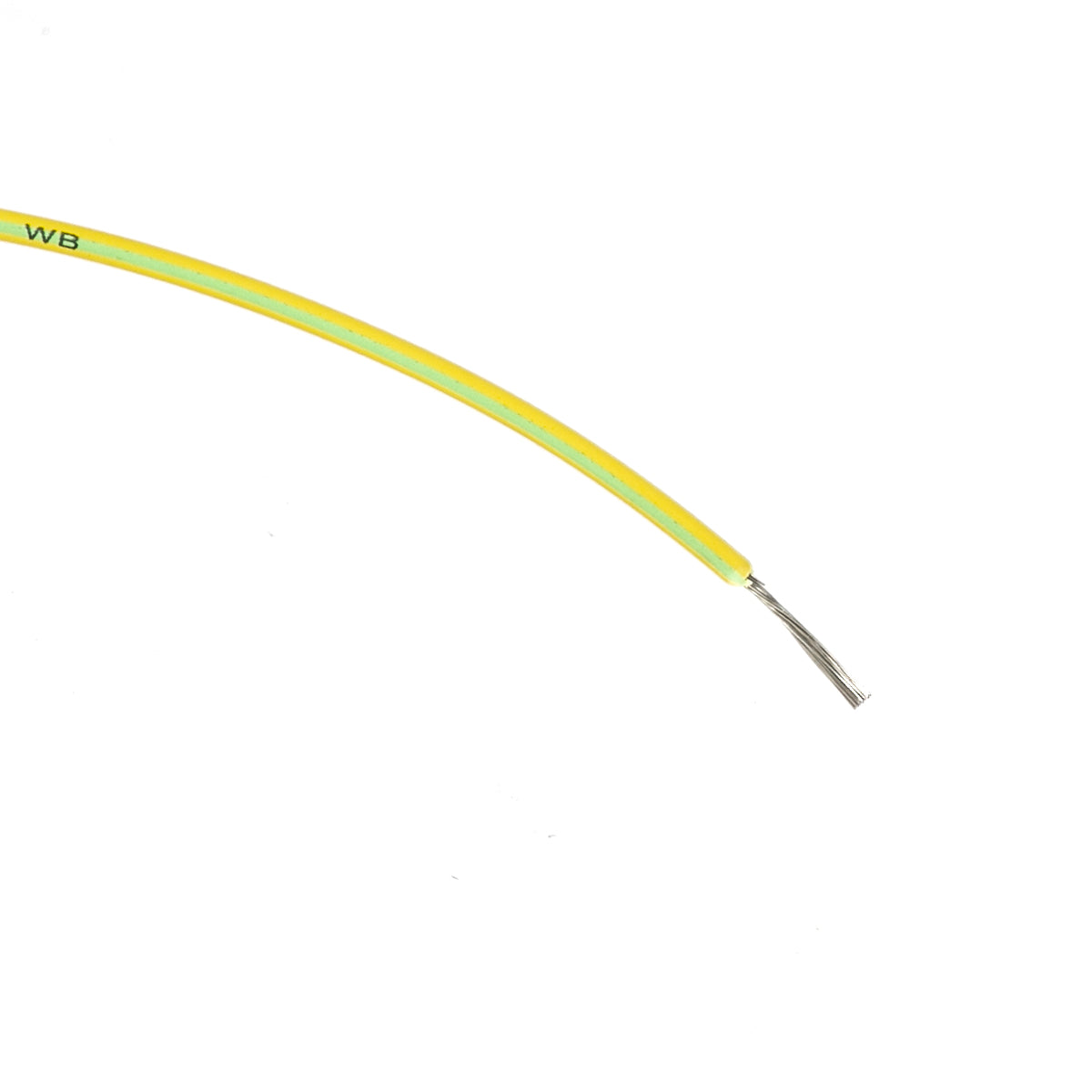

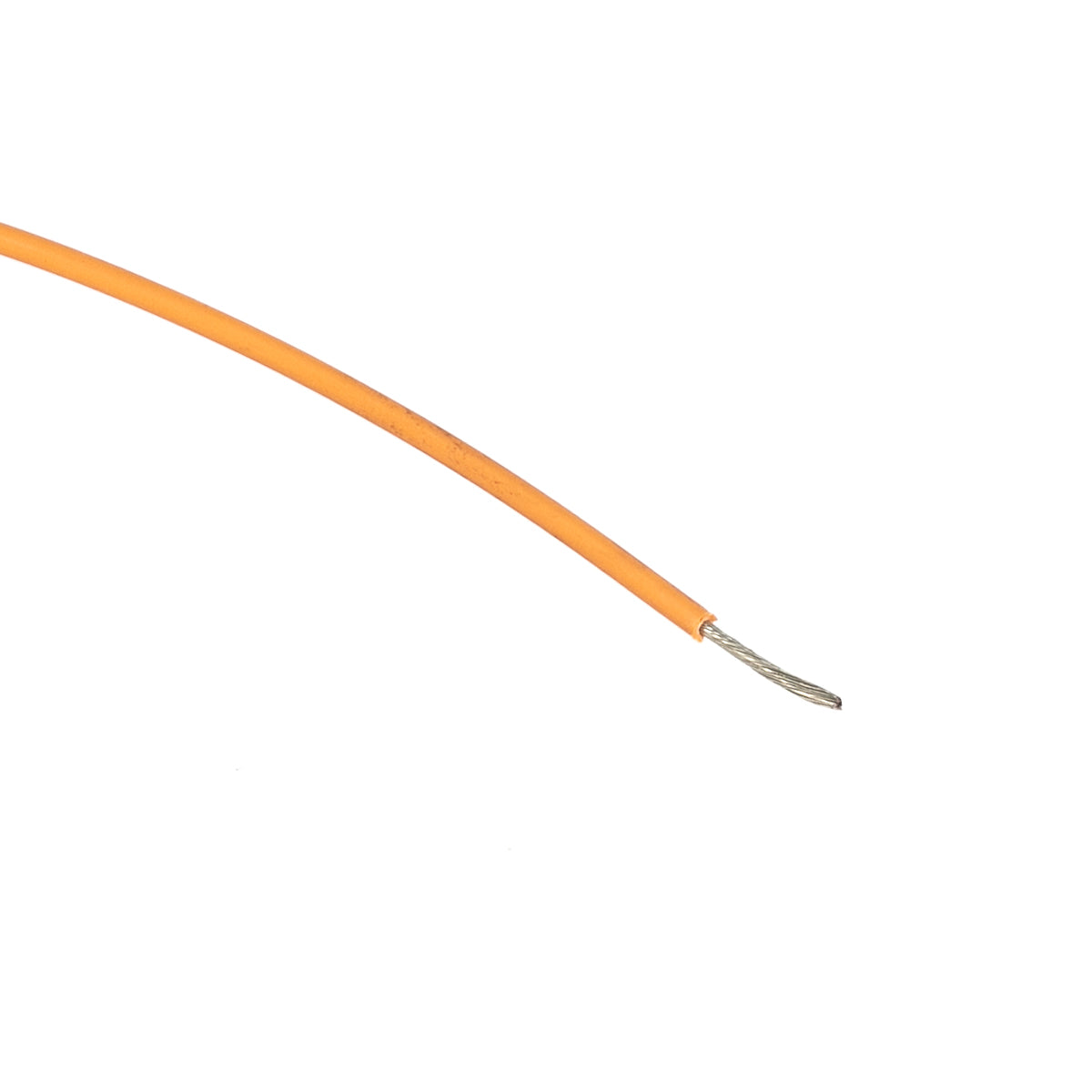

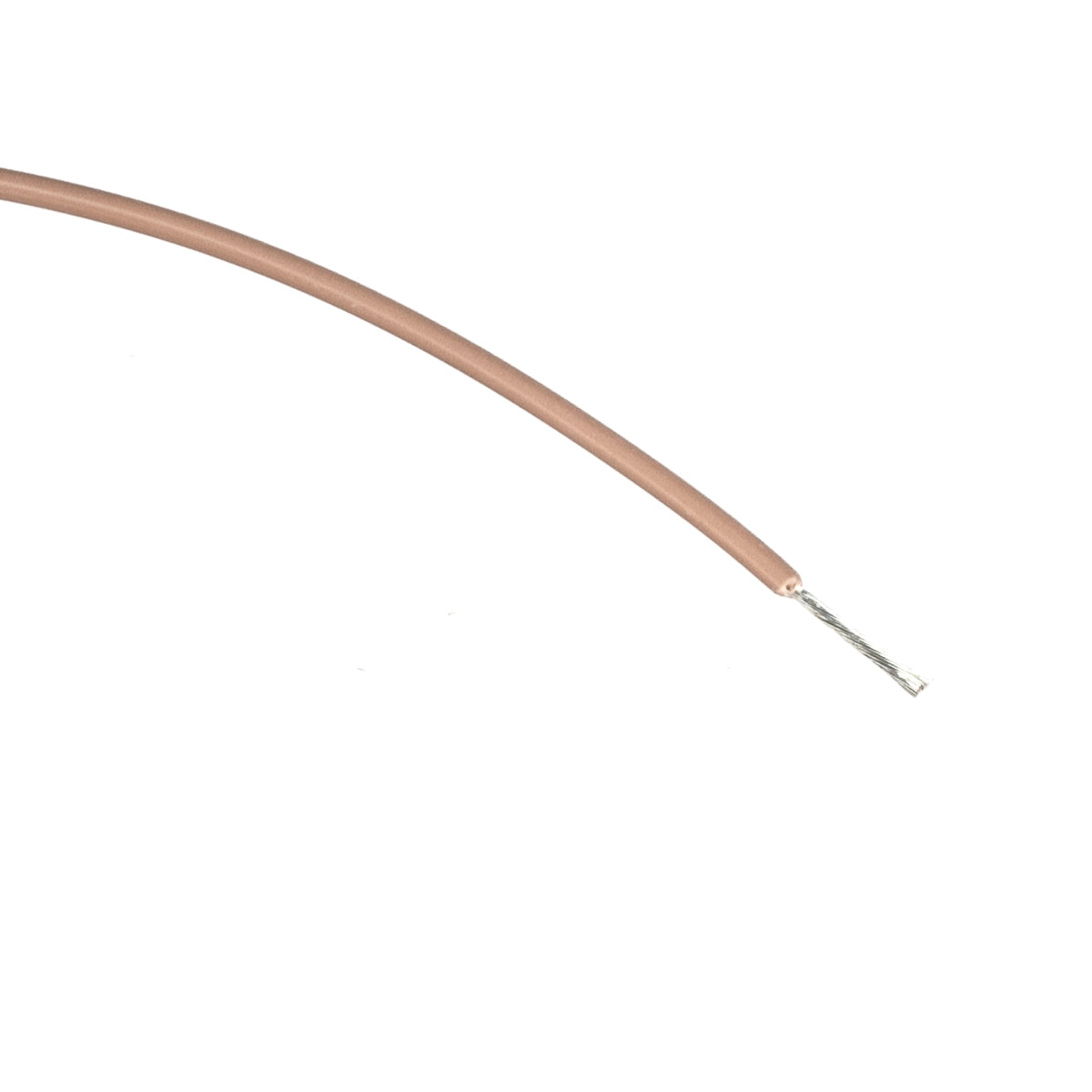

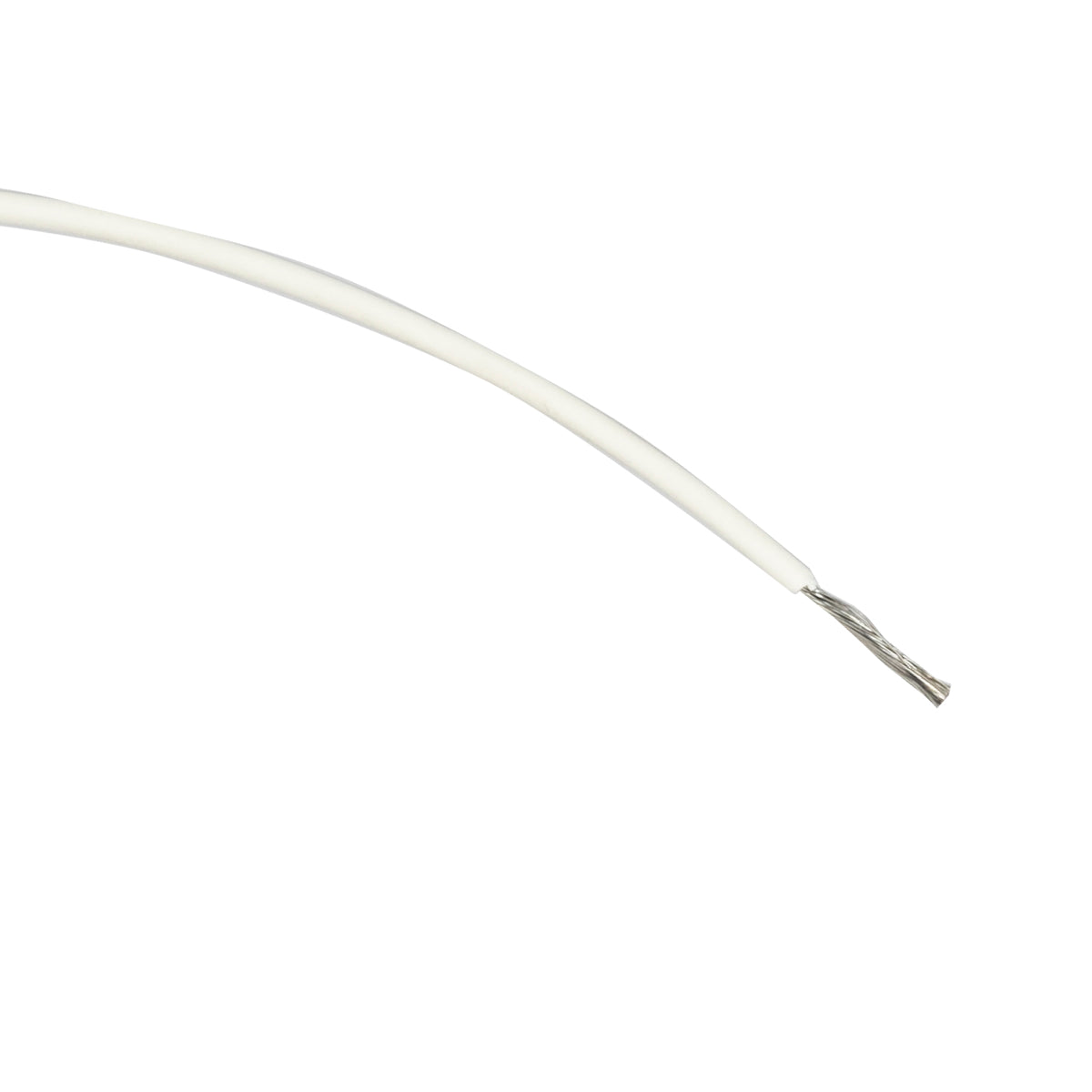

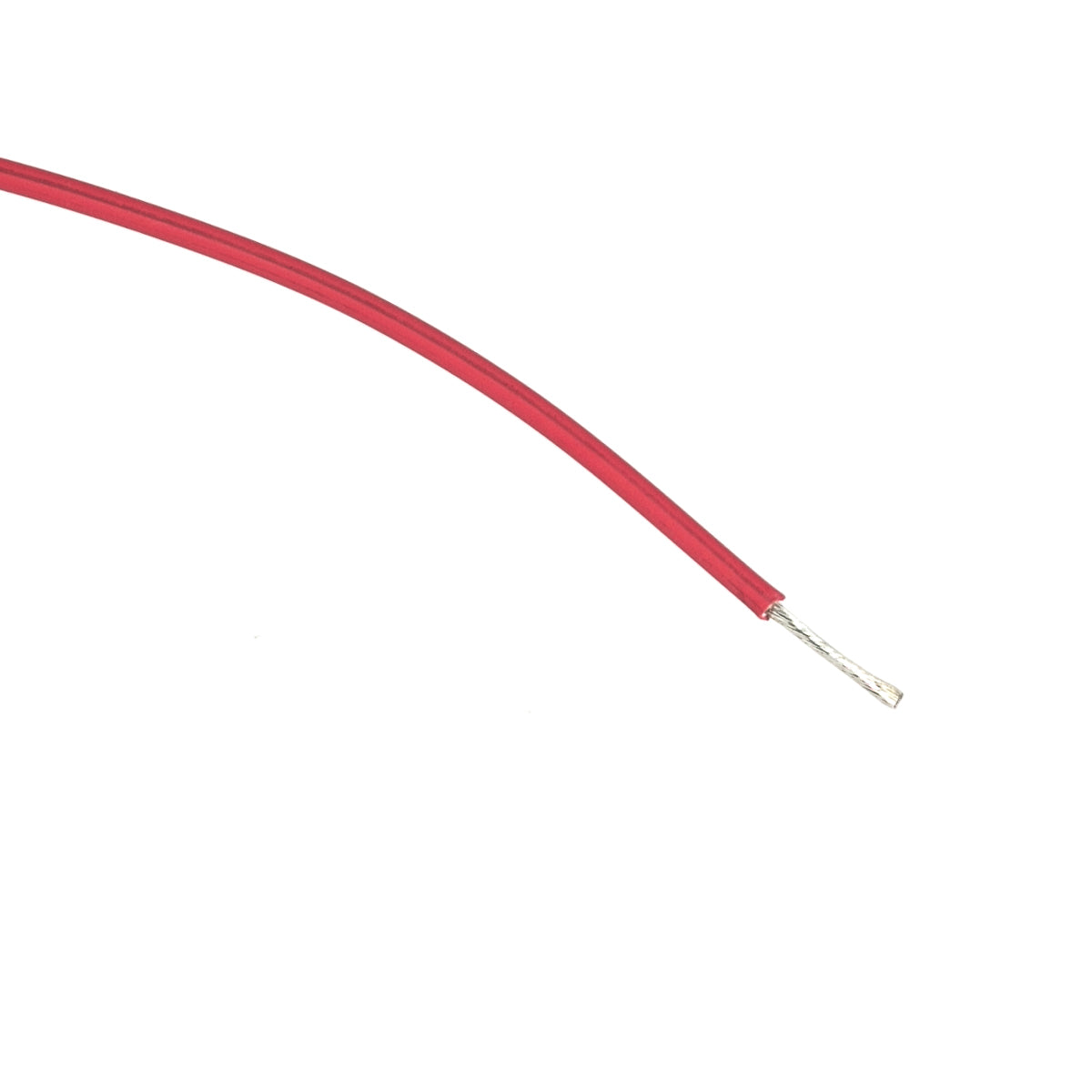

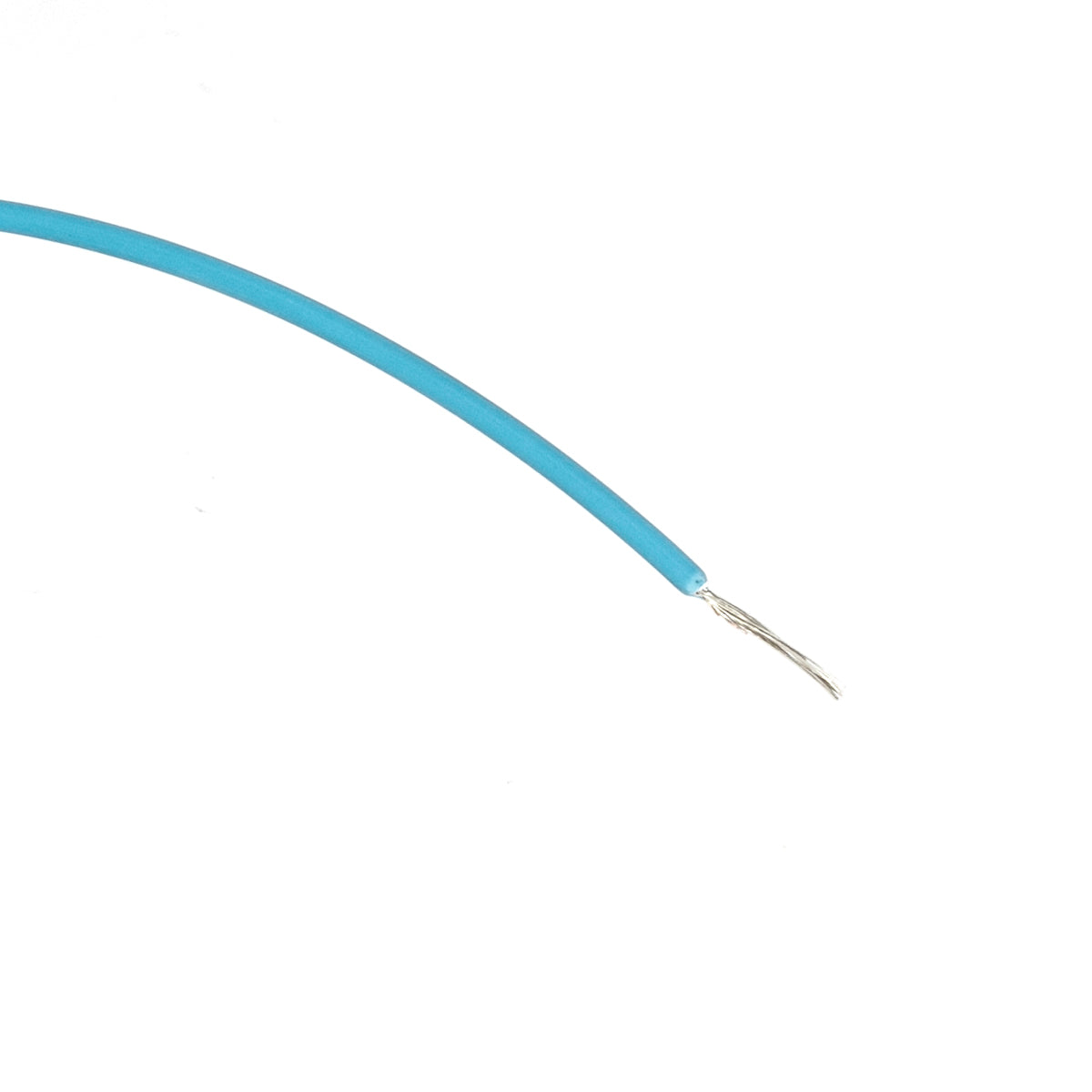

HUBER+SUHNER Radox 155 Cross-linked Cable
Order by 2pm for next day UK delivery*
Product out of stock? Size not available? CONTACT US
DESCRIPTION
RADOX ® 155 are flexible connecting leads with excellent temperature, pressure and ageing resistance. The electron beam cross-linked insulation is mechanically robust, does not melt and is resistant to most media, impregnation resins and insulating varnishes. Short-term excursions up to +280 °C have no adverse effect on the insulation. The high flame retardancy prevents fire propagation in case of a fire.
The connecting leads are made of a high quality wire. This makes it easy to strip and allows automated, economic processing. Additional benefits come from the compact design which allows space-saving wiring.
PLEASE NOTE: for sizes 10mm+ if a full reel is not required, we will cut to length. Either use the Custom Size form or phone our sales team to order.
APPLICATIONS
- Use in class F motors and transformers
- Solenoids
- Lighting equipment and controls panels
- Protected and fixed installation inside electrical equipment
Especially suitable for the connection of:
- motor windings
- switchboards
- magnets
- transformers
TECHNICAL INFO
Temperature range: -55°C to +155°C
Voltages for cross- section ‰¥ 0.75 mm2:
| Rated voltage cond.- earth | U0 | 600 V AC |
| Rated voltage cond.- cond. | U | 1000 V AC |
| Maximum permitted operating voltage cond.- earth | - | 720 V AC |
| Maximum permitted operating voltage cond.- cond. | Um | 1200 V AC |
| Maximum permitted operating voltage cond.- earth | V0 | 900 V DC |
| Maximum permitted operating voltage cond.- cond. | - | 1800 v DC |
| Test voltage | - | 3500 VAC |
Voltages for cross- section < 0.75 mm2:
| Rated voltage cond.- earth | U0 | 450 V AC |
| Rated voltage cond.- cond. | U | 750 V AC |
| Maximum permitted operating voltage cond.- earth | - | 480 V AC |
| Maximum permitted operating voltage cond.- cond. | Um | 825 V AC |
| Maximum permitted operating voltage cond.- earth | V0 | 620 V DC |
| Maximum permitted operating voltage cond.- cond. | - | 1240 V DC |
| Test voltage | - | 2500 V AC |
FEATURES AND BENEFITS
- Temperature range -55°C to +155°C
- Voltage rating 600/1000 V AC
- RADOX® electron beam crosslinked insulation does not melt or flow at high temperatures
- Compact
MATERIAL DATA
Conductor : Stranded tin plated copper, class 5 EN 60228
Insulation : RADOX 155, extruded irradiation crosslinked polyolefin
PRICE MATRIX
|
SIZE |
COLOURS |
UP TO 499 MTS |
500-999 MTS |
1000 MTS + |
|
0.25MM |
ALL COLOURS |
£0.3321 |
£0.3100 |
£0.2878 |
|
0.5MM |
ALL COLOURS |
£0.3513 |
£0.3279 |
£0.3045 |
|
0.75MM |
ALL COLOURS |
£0.4539 |
£0.4236 |
£0.3934 |
|
1MM |
ALL COLOURS |
£0.5520 |
£0.5152 |
£0.4784 |
|
1.5MM |
ALL COLOURS (Except Violet) |
£0.6885 |
£0.6426 |
£0.5967 |
|
2.5MM |
ALL COLOURS (Except Orange) |
£1.0238 |
£0.9555 |
£0.8873 |
|
4MM |
ALL COLOURS (Except Orange + Violet) |
£1.5767 |
£1.4715 |
£1.3664 |
|
6MM |
ALL COLOURS (Except Orange + Violet) |
£2.3252 |
£2.1701 |
£2.0151 |
|
10MM |
Black, Red and Green/Yellow |
£3.6710 |
£3.4262 |
£3.1815 |
|
16MM |
Black |
£5.6088 |
£5.2349 |
£4.8610 |
|
16MM |
Red and Blue |
£5.8572 |
£5.4667 |
£5.0762 |
|
25MM |
Black + Green/Yellow |
£8.0829 |
£7.5440 |
£7.0052 |
|
35MM |
BLACK |
£11.3136 |
£10.5594 |
£9.8051 |
|
50MM |
BLACK |
£15.0218 |
£14.0203 |
£13.0189 |
|
70MM |
BLACK |
£22.7703 |
£21.2523 |
£19.7343 |
|
95MM |
BLACK |
£30.5883 |
£28.5491 |
£26.5099 |
