  • Sku: 2310201

Relats Polyurethane-Coated Braided Cable Sleeving/Tubing, 4kV

Sleeve Colour
Sleeve Size
Price per Reel (300m per Reel)
£54.11 GBP
 per ................

Order by 2pm for next day UK delivery*

Product out of stock? Size not available? CONTACT US

View full details

DESCRIPTION

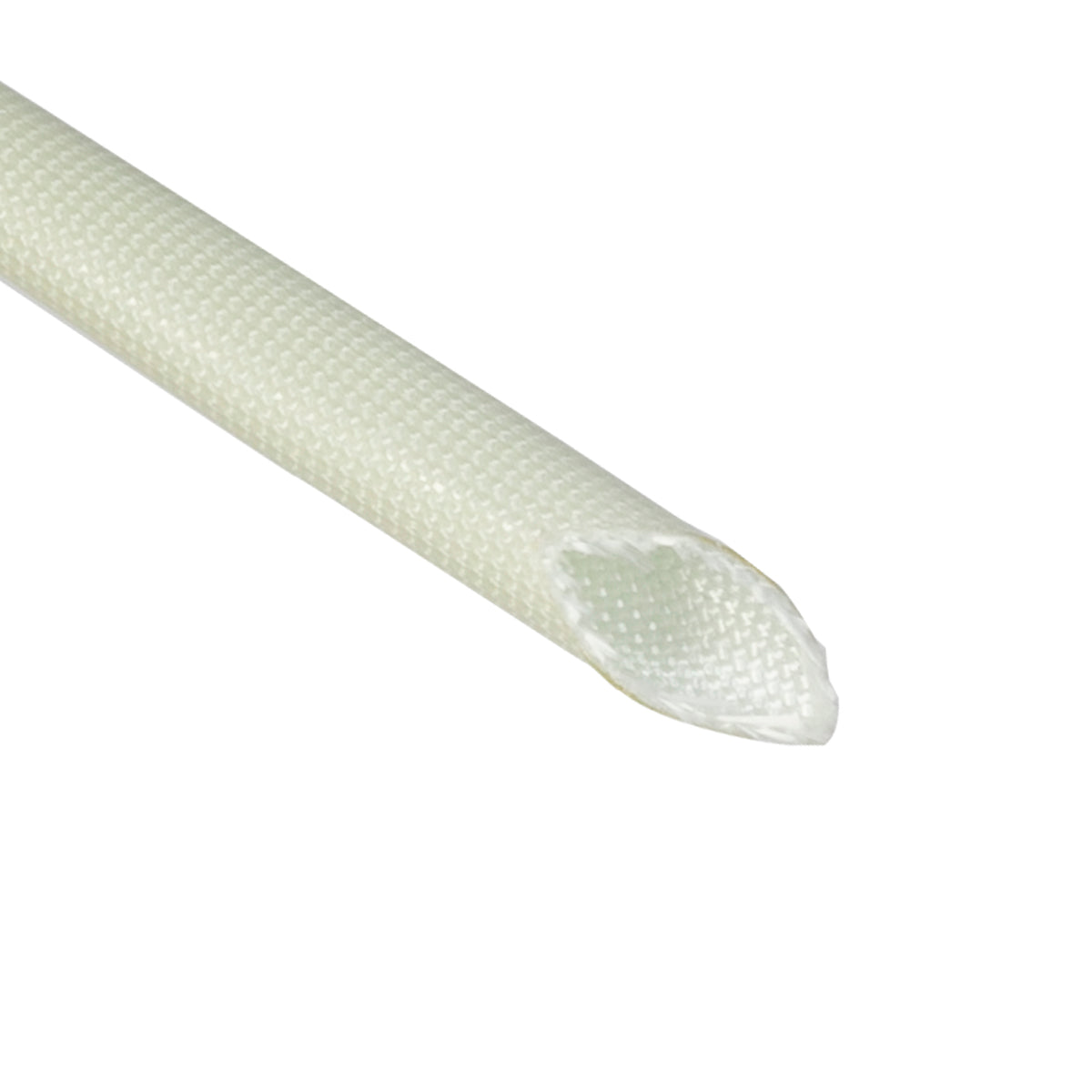

Produced using the latest U.V. cure technology to create an excellent, consistent durable coating, this material has a high dielectric strength and is easy to handle. This braided fibreglass sleeving is coated with polyurethane varnish.

Please note: Care should be taken to minimize dust formation during handling and cutting this glass based material as dust or broken particles may cause skin irritation.

Note: Other diameters supplied upon request.

APPLICATIONS

  • Electrical insulation
  • Protection for electrical connections and terminals
  • Transformer wiring

FEATURES AND BENEFITS

  • Good chemical resistance
  • Excellent compatibility with Class F impregnating resins and varnishes
  • Tough, abrasion resistant and highly flexible
  • Resists contact with soldering iron
  • Solvent free
  • Free of environmentally hazardous and contaminating chemicals, completely different from conventional polyurethane coating

MATERIAL DATA

Product Code 231
Material Polyurethane coated fibreglass
Standard Colour Natural
Operating Temperature – °C -40  –  +155 (Peaks at +225)
Dielectric Strength – kV 4
Relevant Specifications IEC 60684-3, UL  1441

PRICE MATRIX

Size (mm)

Reel Size (m)

1-1499 Metres

1500+ Metres

1.0

300

£18.04

£16.79

1.5

300

£21.32

£19.85

2.0

300

£24.20

£22.53

2.5

200

£26.80

£24.95

3.0

200

£29.58

£27.54

3.5

200

£33.40

£31.10

4.0

200

£38.28

£35.64

5.0

200

£48.02

£44.71

6.0

100

£56.03

£52.16

7.0

100

£69.44

£64.65

8.0

100

£86.13

£80.19

10.0

100

£127.89

£119.07

12.0

50

£156.60

£145.80

14.0

50

£204.48

£190.38

16.0

50

£255.29

£237.68

18.0

50

£309.37

£288.04

20.0

25

£472.70

£440.10
