- Sku: 5613914

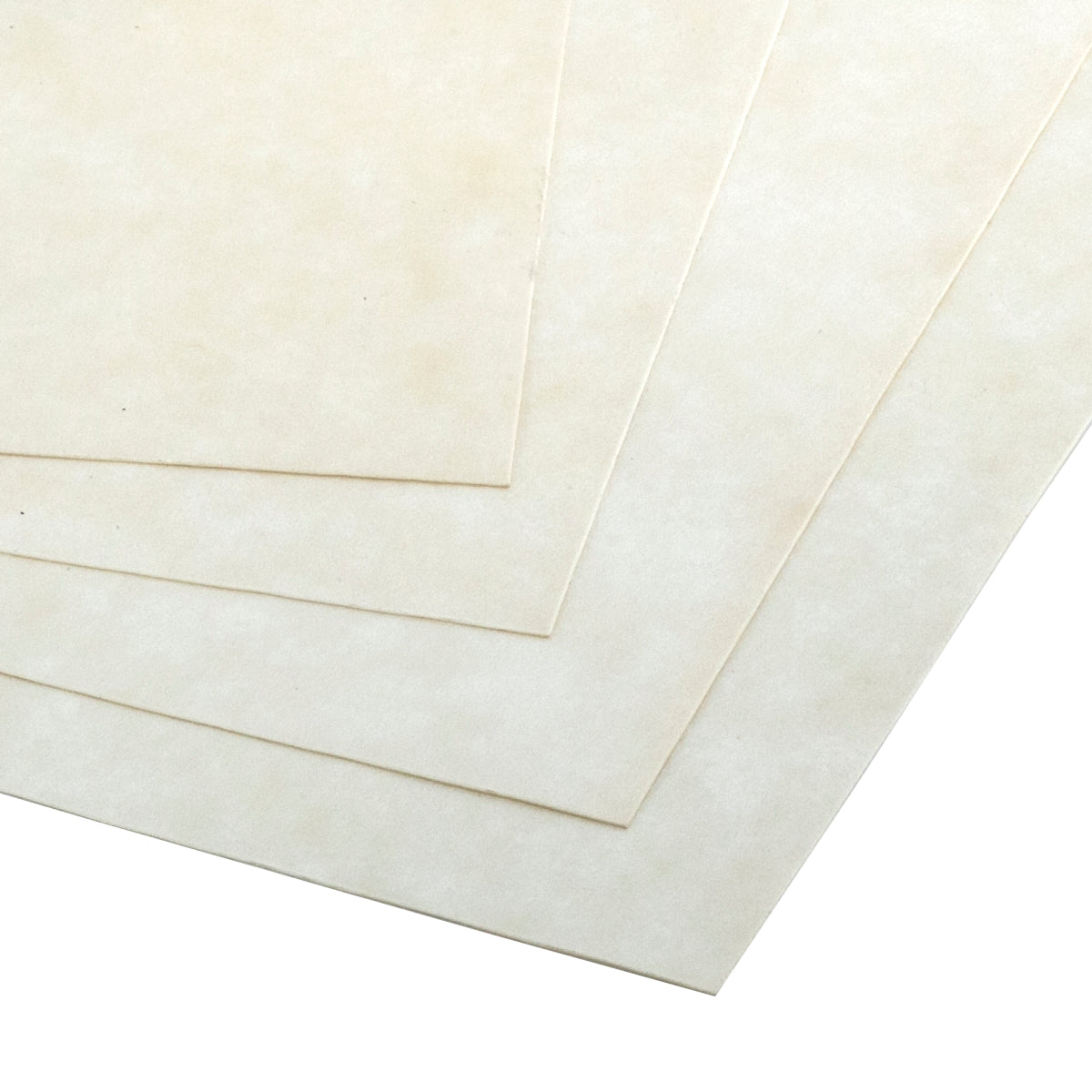

CroyLam Nomex® 410, 914mm x 1 metre sheet
Order by 2pm for next day UK delivery*
Product out of stock? Size not available? CONTACT US
DESCRIPTION
Nomex ® type 410 is a calendared insulation paper which offers high dielectric strength, high operating temperature range, mechanical toughness, flexibility and resilience.
APPLICATIONS
- Slot Insulation
- Phase insulation
- interlayer insulation
- outer layer insulation
- high temperature applications
TECHNICAL INFO
|
Nominal Thickness (mm) |
Dielectric Strength (kV) |
ASTM D-828 Tensile Strength (N/cm) |
ASTM D-828 Elongation (%) |
ASTM D-1004 Initial Tear Strength (N) |
Shrinkage at 300°C (%) |
|
0.13 |
27 |
MD 137 |
MD 15 |
MD 33 |
MD 0.9 |
|
XD 66 |
XD 12 |
XD 17 |
XD 0.0 |
||
|
0.18 |
33 |
MD 219 |
MD 18 |
MD 50 |
MD 0.6 |
|
XD 111 |
XD 14 |
XD 27 |
XD 0.2 |
||
|
0.25 |
32 |
MD 285 |
MD 19 |
MD 71 |
MD 0.4 |
|
XD 152 |
XD 15 |
XD 42 |
XD 0.1 |
||
|
0.37 |
33 |
MD 459 |
MD 19 |
MD 116 |
MD 0.3 |
|
XD 252 |
XD 14 |
XD 74 |
XD 0.2 |
FEATURES AND BENEFITS
- Flexible
- High dielectric strength
- Good resistance to chemicals and solvents
- Good electrical properties
- Tear resistant
- Self-extinguishing
MATERIAL DATA
|
Product Code |
56 |
|
Material |
Synthetic Paper |
|
Standard Colour |
Natural |
|
Operating Temperature €“ °C |
220 (maintain 12kV dielectric strength for several hours at 400 °C) |
|
Dielectric Strength €“ kV/mm |
See technical specification |
|
Tensile Strength €“ kg/cm |
See technical specification |
|
Relevant Specification |
UL approved €“ File No. E34739 |
PRICE MATRIX
|
Part No |
Size |
1-9 Sheets |
10+ Sheets |
|
5613914 |
0.13mm x 914mm x 1 metre |
£9.21 |
£8.55 |
|
5618914 |
0.18mm x 914mm x 1 metre |
£13.34 |
£12.39 |
|
5625914 |
0.25mm x 914mm x 1 metre |
£21.21 |
£19.70 |
|
5638914 |
0.38mm x 914mm x 1 metre |
£29.92 |
£27.78 |
|
5651914 |
0.51mm x 914mm x 1 metre |
£46.58 |
£43.25 |
|
5676914 |
0.76mm x 914mm x 1 metre |
£77.36 |
£71.84 |
