- Sku: 4301013

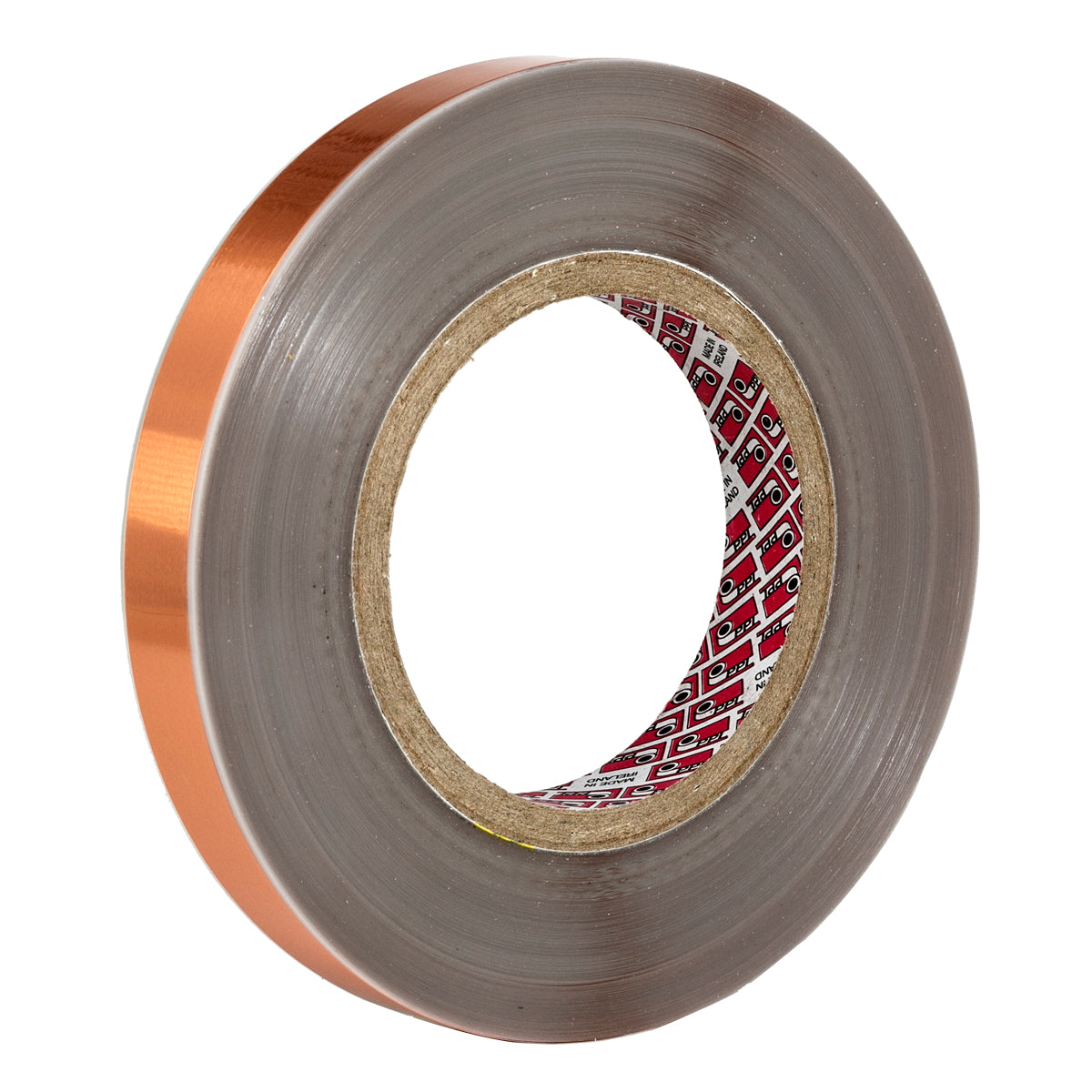

CroyTape Copper Screening Tape
Order by 2pm for next day UK delivery*
Product out of stock? Size not available? CONTACT US
DESCRIPTION
This double sided tape is a special laminate tape based on a soft, annealed copper foil with polyester (polyethylene terephthalate) film. This heat class B (up to 130oC/ 266oF) laminate tape can be supplied in a multitude of film and copper foil thicknesses and width constructions. This wide range of suitable substrates means that a very wide range of customer tailored laminate tapes can be readily produced with excellent quality.
APPLICATIONS
- Toroidal transformers
- Electro-magnetic screening
- Induction loops.
TECHNICAL INFO
| Available Substrates | EN Value | ASTM Value |
| Polyester Film Thicknesses: | 0.025mm | 1.0 Mil |
| 0.036mm | 1.4 Mil | |
| 0.050mm | 2.0 Mil | |
| Copper Foil Thicknesses | 0.025mm | 1.0 Mil |
| 0.035mm | 1.4 Mil | |
| 0.050mm | 2.0 Mil | |
| 0.075mm | 3.0 Mil | |
| 0.100mm | 4.0 Mil | |
| 0.125mm | 5.0 Mil | |
| 0.150mm | 6.0 Mil | |
| 0.175mm | 7.0 Mil | |
| 0.200mm | 8.0 Mil | |
| 0.250mm | 10.0 Mil* | |
| 0.300mm | 12.0 Mil* | |
| 0.400mm | 16.0 Mil* | |
| 0.500mm | 20.0 Mil* |
| Total Roll Width (mm) | Copper Foil Width (Xmm) | Edge Dimension (Y mm) |
| 7.0-18.0 | 4.0-16.0 | 1.0 |
| 19.0-42.0 | 16.0-39.0 | 1.5 |
| 43.0-102.0 | 39.0-98.0 | 2.0 |
| +102.0 | +96.0 | 3.0 |
The above details are based on a standard polyester film (0.025 mm thick) in combination with a standard copper foil (0.035 mm thick). With thick copper foils (i.e.>0.200 mm) it may be difficult to achieve certain tolerances and widths. Further details available on request.
FEATURES AND BENEFITS
- High dielectric strength
- Length: 100M
- Conformable
- UL Approved
MATERIAL DATA
| Operating temperature: | 130℃ |
| Thermal class: | B |
| Dielectric strength (polyester): | 200 kV/mm |
| UL Recognised : File No. | OANZ2.E86214 |
PRICE MATRIX
|
Size |
1-999 MTS |
1000+ MTS |
|
6/35 X 9/25 |
£0.2100 |
£0.1950 |
|
9/35 X 12/25 |
£0.2801 |
£0.2601 |
|
10/35 X 13/25 |
£0.1994 |
£0.1851 |
|
13/35 X 16/25 |
£0.3839 |
£0.3565 |
|
16/35 X 19/25 |
£0.4263 |
£0.3959 |
|
6/50 X 9/25 |
£0.2601 |
£0.2415 |
|
10/50 X 13/25 |
£0.3800 |
£0.3500 |
|
10/50 X 16/25 |
£0.4626 |
£0.4295 |
|
15/50 X 18/25 |
£0.5792 |
£0.5378 |
|
6/35 X 9/50 |
£0.2360 |
£0.2276 |
|
6/35 X 10/50 |
£0.2622 |
£0.2435 |
|
10/35 X 13/50 |
£0.3409 |
£0.3166 |
|
16/35 X 19/50 |
£0.4983 |
£0.4627 |
|
10/50 X 13/50 |
£0.4045 |
£0.3756 |
|
15/75 X 18/50 |
£0.7172 |
£0.6660 |
|
12/200 X 15/25 |
£0.6622 |
£0.6149 |
|
15/200 X 18/25 |
£0.7493 |
£0.6958 |
|
26/200 X 29/25 |
£1.0478 |
£0.9729 |
|
26/300 X 25/30 |
£2.4997 |
£2.3212 |
|
9/50 X 9/25 |
£0.2731 |
£0.2634 |
|
LM-696B |
£1.1781 |
£1.0940 |
|
LM-696 |
£1.3751 |
£1.2769 |
