- Sku: 3200601

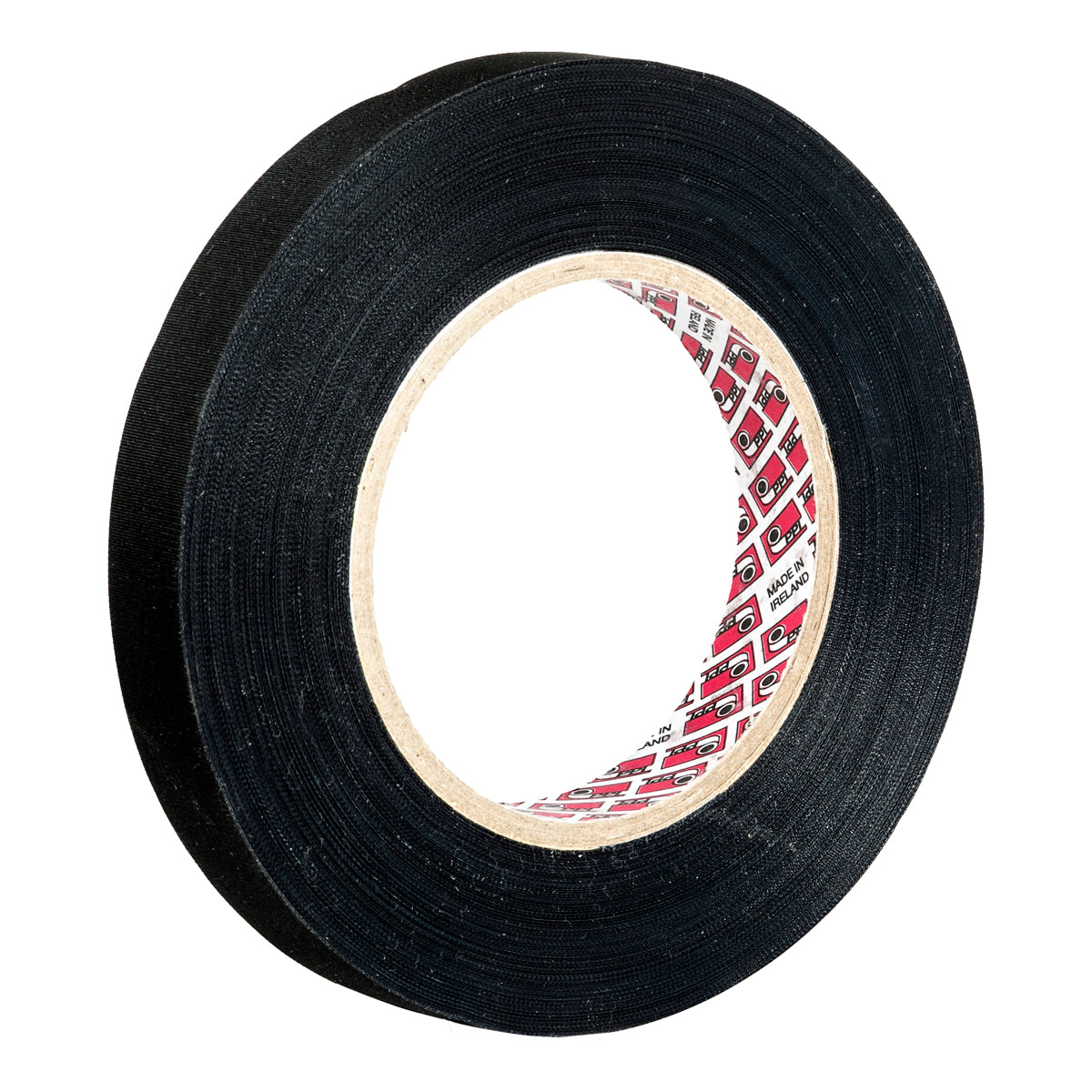

CroyTape Adhesive Acetate
£2.81 GBP
Order by 2pm for next day UK delivery*
Product out of stock? Size not available? CONTACT US
DESCRIPTION
This classical tape gives superior finishes to most products and has excellent handling capabilities. This product is effective at room temperature, although at colder temperatures, (approaching 0 °C), the thermo-setting synthetic rubber adhesive becomes more firm.
APPLICATIONS
- Insulation wrap
- Hold down
- End turn and interphase insulation
- Cable harnessing
- Final wrap for coils e.g. transformers, relays, resistors, solenoids, ignition coils
TECHNICAL INFO
| Operating Temperature – oC | -10 to +120 (Heat Class E) |
| Elongation at Break – % | 22 |
| Dielectric Strength – kV | 2.5 |
| Tensile Strength – N/cm | 50 |
| Recommended Curing Cycle | 1 Hour at 150oC; 2 Hours at 130 oC |
| Relevant Specifications | ASTM D-1000, EN60654, VDE 0340, BS 3924 |
FEATURES AND BENEFITS
- High adhesive force
- Length: 55M
- Excellent conformability
- High tensile strength
- Thermo-setting
- High temperature resistance
MATERIAL DATA
| Product Code | 320 |
| Material | Acetate Silk Cloth with synthetic rubber adhesive |
| Standard Colour | Black |
| Total Thickness – mm | 0.20 |
| Adhesive Thickness – mm | 0.15 |
PRICE MATRIX
|
Size / Colour |
Roll Length |
0-71.99 Rolls |
72+ Rolls |
|
6mm Black |
55 metres |
£2.81 |
£2.61 |
|
9mm Black |
55 metres |
£4.23 |
£3.93 |
|
12mm Black |
55 metres |
£5.64 |
£5.24 |
|
15mm Black |
55 metres |
£7.04 |
£6.54 |
|
19mm Black |
55 metres |
£8.93 |
£8.29 |
|
25mm Black |
55 metres |
£11.75 |
£10.91 |
