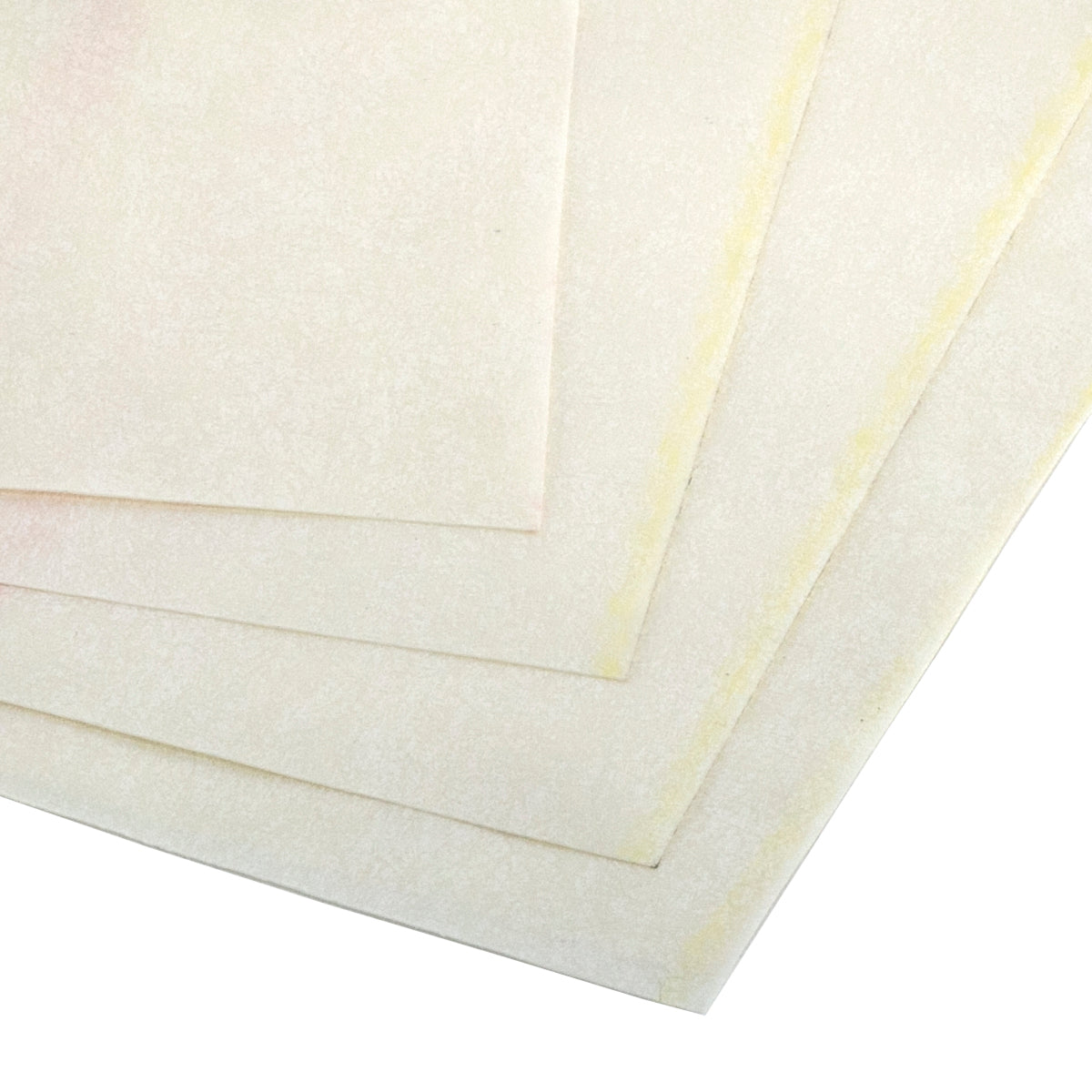

CroyLam Nomex® / Mylar® / Nomex® Triple Laminate
Order by 2pm for next day UK delivery*
Product out of stock? Size not available? CONTACT US
DESCRIPTION
NOMEX ® Laminate type NMN is a triplex laminate constructed of calendered NOMEX ® paper bonded to polyester film with proprietary high temperature adhesive system. This laminate is
designed not to delaminate or blister at high temperatures.
The polyester film is this three-ply laminate contributes high dielectric strength, as well as good initial tear strength and tensile properties.
The calendered NOMEX ® paper provides long-term thermal stability as well as improved propagation tear strengths.
TECHNICAL INFO
|
|
ASTM D374 Thickness Nominal |
PRODUCT YIELD |
ASTM D149 Dielectric Strength |
ASTM D257 Volume Resistivity |
|
|
Product |
(inches) |
(yd2/lb) |
(lb/yd2) |
(volts) |
(ohms-cm) |
|
NMN 2-2-2 |
0.007 |
3.08 |
0.32 |
11,000 |
1015 |
|
NMN 2-5-2 |
0.010 |
1.92 |
0.52 |
16,000 |
1015 |
|
NMN 2-71/2-2 |
0.012 |
1.49 |
0.67 |
18,000 |
1015 |
|
NMN 3-3-3 |
0.010 |
2.04 |
0.49 |
13,000 |
1015 |
|
NMN 3-5-3 |
0.012 |
1.64 |
0.61 |
17,000 |
1015 |
|
NMN 3-71/2-3 |
0.014 |
1.28 |
0.78 |
19,500 |
1015 |
|
NMN 3-10-3 |
0.017 |
1.03 |
0.97 |
21,000 |
1015 |
|
NMN 3-14-3 |
0.021 |
0.91 |
1.10 |
32,000 |
1015 |
|
NMN 5-3-5 |
0.013 |
1.52 |
0.66 |
16,000 |
1015 |
|
NMN 5-5-5 |
0.016 |
1.25 |
0.80 |
19,000 |
1015 |
|
NMN 5-10-5 |
0.021 |
0.89 |
1.12 |
22,000 |
1015 |
|
|
ASTM D257 Surface Resistivity |
ASTM D882 MD Tensile Strength |
ASTM D882 XD Tensile Strength |
ASTM D1004 MD Tear Strength |
ASTM D1004 XD Tear Strength |
|
Product |
(ohms-square) |
(lb/in width) |
(lb/in width) |
(lbs) |
(lbs) |
|
NMN 2-2-2 |
1015 |
95 |
70 |
9 |
7 |
|
NMN 2-5-2 |
1015 |
115 |
145 |
18 |
12 |
|
NMN 2-71/2-2 |
1015 |
200 |
180 |
25 |
20 |
|
NMN 3-3-3 |
1015 |
170 |
110 |
17 |
10 |
|
NMN 3-5-3 |
1015 |
175 |
150 |
26 |
18 |
|
NMN 3-71/2-3 |
1015 |
210 |
175 |
30 |
22 |
|
NMN 3-10-3 |
1015 |
250 |
210 |
33 |
27 |
|
NMN 3-14-3 |
1015 |
314 |
213 |
45 |
41 |
|
NMN 5-3-5 |
1015 |
185 |
145 |
24 |
16 |
|
NMN 5-5-5 |
1015 |
200 |
170 |
28 |
19 |
|
NMN 5-10-5 |
1015 |
275 |
235 |
35 |
31 |
FEATURES AND BENEFITS
- Flexible
- Good dielectric properties
- Good thermal properties
- Good thermal aging
- Good chemical resistance
- Compatible with varnishes and resins
MATERIAL DATA
| Operating Temperature | 155°C |
| Thermal Class | F |
| Dielectric Strength | 50 Kv/mm |
| Tensile Strength | 450N/cm for 0.52mm thick |
PRICE MATRIX
| SIZE | PRICE per Metre |
| 3/1/3 450MM | £5.64 |
| 3/1/3 900MM | £11.27 |
| 3/2/3 450MM | £6.04 |
| 3/2/3 900MM | £12.08 |
| 3/3/3 450MM | £6.16 |
| 3/3/3 900MM | £12.32 |
| 3/5/3 450MM | £6.48 |
| 3/5/3 900MM | £12.96 |
| 3/7/3 450MM | £6.96 |
| 3/7/3 900MM | £13.91 |
| 3/10/3 450MM | £7.32 |
| 3/10/3 900MM | £14.64 |
