- Sku: 7240201

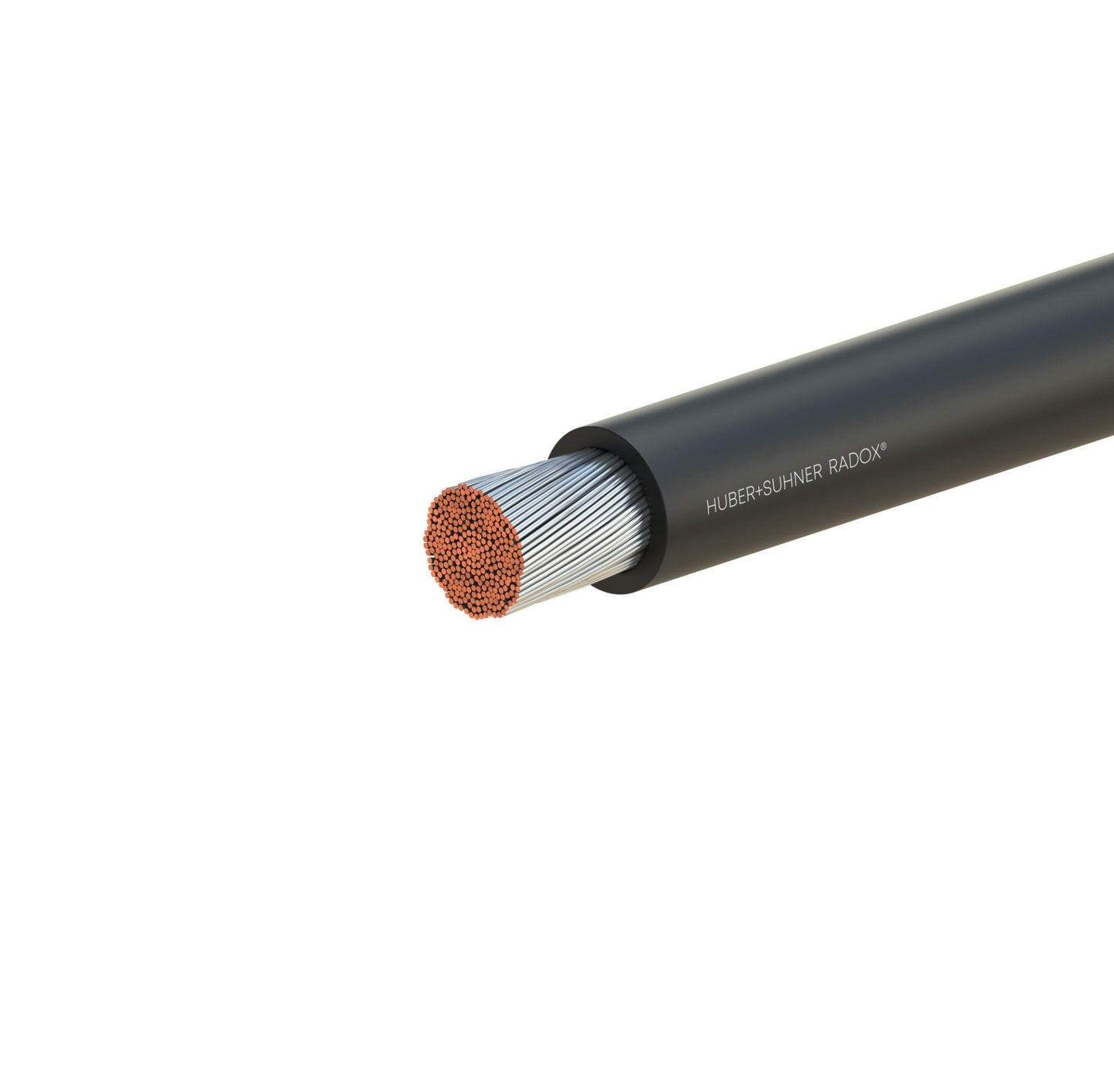

HUBER+SUHNER Radox UL3289 Cross-linked Cable
£624.65 GBP
Order by 2pm for next day UK delivery*
Product out of stock? Size not available? CONTACT US
DESCRIPTION
RADOX® 155 are flexible connecting leads with excellent temperature, pressure and ageing resistance. The electron beam crosslinked insulation is mechanically robust, does not melt and is resistant to most media, impregnation resins and insulating varnishes. Short-term excursions up to +280°C have no adverse effect on the insulation. The high flame retardance prevents fire propagation in case of a fire.
The connecting leads are made of a high quality wire. This makes it easy to strip and allows automated, economic processing. Additional benefits come from the compact design which allows space-saving wiring.
APPLICATIONS
TECHNICAL INFO
| Cross Section | Cross-section | Conductor | Conductor diameter | Core diameter D. | Weight | Bending radius | Conductor resistance at 20ºC | |
| UL7 758 | EN 60228/ IEC 60228 | construction | ||||||
| CSA C22.2 NO.210 | nom. | nom. | max. | nom. | min. | max | ||
| AWG | mm2 | mm2 | n x mm d | mm | mm | kg/ 100m | mm | Ω/ km |
| 26 | 0.128 | 19 x 0.10 | 0.5 | 2.13 ± 0.10 | 0.55 | 3 X D | 133 | |
| 24 | 0.205 | 19 x 0.13 | 0.61 | 2.27 ± 0.10 | 0.66 | 3 X D | 86 | |
| 22 | 0.324 | 19 x 0.16 | 0.77 | 2.40 ± 0.10 | 0.79 | 3 X D | 53.1 | |
| 20 | 0.519 | 19 x 0.20 | 0.99 | 2.61 ± 0.10 | 1.1 | 3 X D | 32.4 | |
| 18 | 0.823 | 19 x 0.25 | 1.23 | 2.85 ± 0.10 | 1.5 | 3 X D | 20.4 | |
| 16 | 1.5 | 19 x 0.31 | 1.52 | 3.20 ± 0.10 | 2.1 | 3 X D | 13 | |
| 14 | 2.08 | 19 x 0.37 | 1.86 | 3.50 ± 0.10 | 2.7 | 3 X D | 9.32 | |
| 12 | 3.31 | 37 x 0.35 | 2.35 | 4.00 ± 0.15 | 4 | 3 X D | 5.88 | |
| 10 | 5.26 | 37 x 0.44 | 3.02 | 4.68 ± 0.15 | 6.1 | 3 X D | 3.62 | |
| 8 | 10 | 80 x 0.4 | 3.82 | 6.40 ± 0.15 | 11.1 | 3 X D | 1.95 | |
| 6 | 16 | 119 x 0.4 | 5.4 | 8.90 ± 0.2 | 17.8 | 3 X D | 1.24 | |
| 4 | 25 | 189 x 0.4 | 6.65 | 10.2 ± 0.2 | 26 | 3 X D | 0.795 | |
| 2 | 35 | 266 x 0.4 | 7.8 | 11.4 ± 0.20 | 35.2 | 3 X D | 0.565 | |
| 1 | 50 | 378 x 0.4 | 9.3 | 14.0 ± 0.25 | 51.9 | 3 X D | 0.393 | |
| 2/0 | 70 | 348 x 0.49 | 11.5 | 16.1 ± 0.3 | 71 | 3 X D | 0.273 | |
| 3/0 | 95 | 456 x 0.49 | 13 | 17.6 ± 0.3 | 90.6 | 3 X D | 2.07 | |
| 4/0 | 120 | 570 x 0.50 | 14.7 | 19.3 ± 0.3 | 113 | 3 X D | 0.164 | |
FEATURES AND BENEFITS
MATERIAL DATA
Conductor : Stranded tin plated copper, flexible
Coverage: Tape (> 6AWG only)
Insulation : RADOX 155, extruded irradiation crosslinked polyolefin
Approvals:
UL File No: E63322
CSA File No: 039507
Coverage: Tape (> 6AWG only)
Insulation : RADOX 155, extruded irradiation crosslinked polyolefin
Approvals:
UL File No: E63322
CSA File No: 039507
PRICE MATRIX
| SIZE | COLOUR | REEL SIZE (M) | PRICE PER MTR |
| AWG2 | BLACK | 50 | £9.80 |
| AWG4 | BLACK | 100 | £7.09 |
| AWG8 | BLACK | 100 | £3.30 |
| AWG6 | BLACK | 100 | £5.36 |
| AWG12 | BLACK | 300 | £1.40 |
| AWG12 | RED | 300 | £1.40 |
| AWG12 | BROWN | 300 | £1.40 |
| AWG12 | GREEN/YELLOW | 300 | £1.40 |
| AWG16 | BLACK | 300 | £0.65 |
| AWG16 | YELLOW | 300 | £0.65 |
| AWG16 | GREEN/YELLOW | 300 | £0.65 |
| AWG18 | BLACK | 300 | £0.53 |
| AWG18 | RED | 300 | £0.53 |
| AWG18 | WHITE | 300 | £0.53 |
| AWG18 | GREEN/YELLOW | 300 | £0.53 |
| AWG20 | BLACK | 300 | £0.43 |
| AWG20 | YELLOW | 300 | £0.43 |
| AWG20 | GREEN/YELLOW | 300 | £0.43 |
| AWG14 | BLACK | 300 | £0.90 |
| AWG14 | BLUE | 300 | £0.90 |
| AGW14 | GREEN/YELLOW | 300 | £0.90 |
| AWG10 | BLACK | 300 | £1.94 |
| AWG10 | GREEN/YELLOW | 300 | £1.94 |
