- Sku: 65051

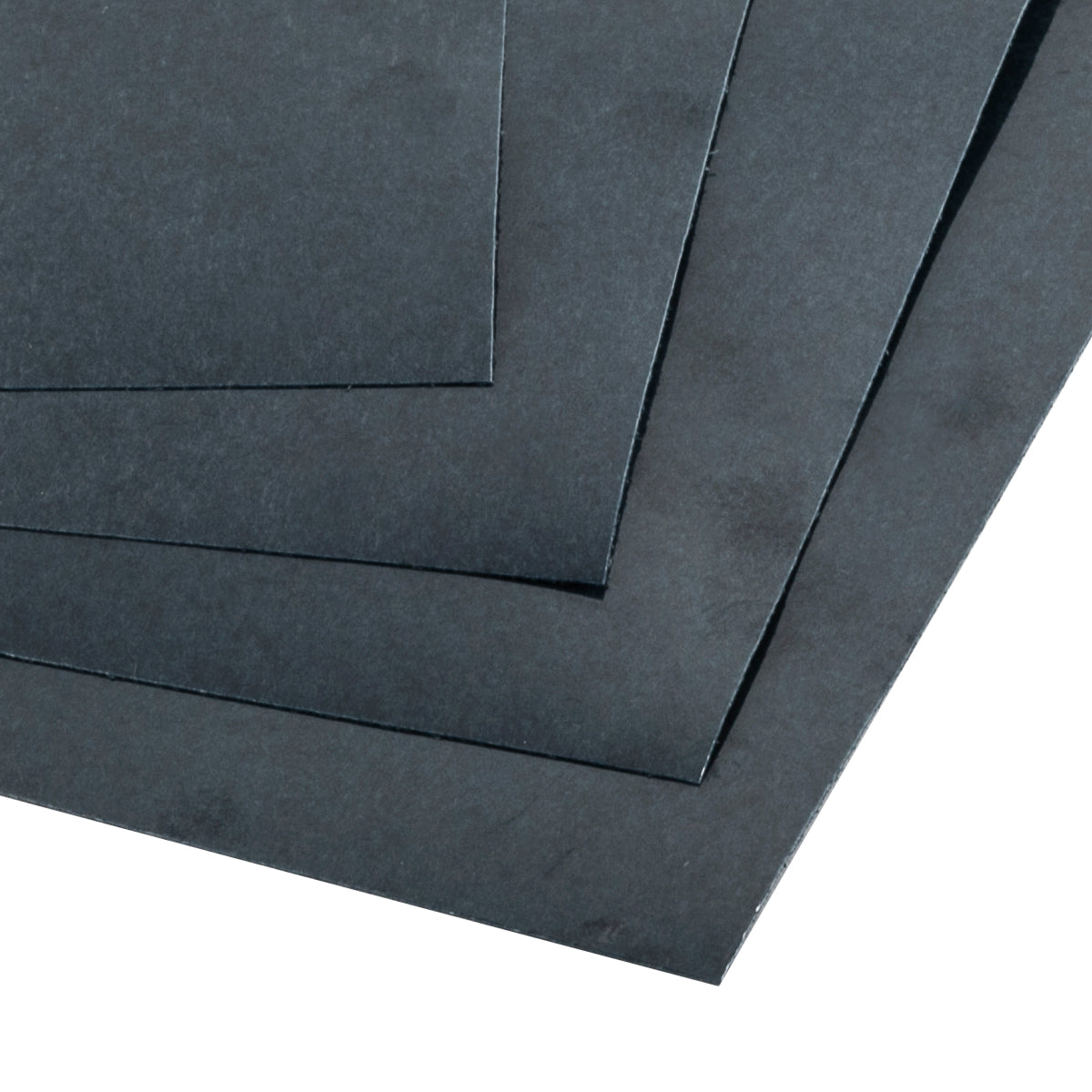

Croylam Elephantide/Melinex (Full Width 850MM)
£116.25 GBP
Order by 2pm for next day UK delivery*
Product out of stock? Size not available? CONTACT US
DESCRIPTION
This laminate of Polyester film and Elephantide Grade 3 blue cotton based presspaper gives a good combination of thickness and mechanical strength, coupled with good dielectric properties.
APPLICATIONS
- Slot liners
- Coil separation
- Phase separation
- Intercoil insulation
- Outer wrap
- High frequency welding barrier
TECHNICAL INFO
| Grade Combination | Area Weight g/m2 | Elephantide® Thicknes (mm) | PET Film thickness (mm) | Standard width (mm/%) | Tensile Strength | Elec. Strength 50 Hz Rapid |
| 5/2 | 230 | 0.13 | 0.050 | 845 ± 10 | >130 | 8kV min |
| 7/2 | 285 | 0.18 | 0.050 | 845 ± 10 | >130 | 8kV min |
FEATURES AND BENEFITS
- High degree of flexibility
- Mechanically strong
- Good electrical and mechanical properties
- High tear strength
- High inter-laminate shear strength
MATERIAL DATA
| Product Code | 650 |
| Material | Elephantide/Polyester |
| Standard Colour | Blue |
| Operating Temperature – °C | 130 (Insulation Class B) Short term 180 |
| Relevant Specifications | IEC 626-2 |
PRICE MATRIX
|
SIZE |
0-1.99 Rolls |
2 + Rolls |
|
5/1 X 850MM WIDE X 50M |
£116.25 |
£108.50 |
|
5/2 X 850M WIDE X 50M |
£128.25 |
£119.70 |
|
10/2 X 850MM WIDE X 50M |
£168.00 |
£156.80 |
|
12/2 X 850MM WIDE X 50M |
£204.75 |
£191.10 |
