- Sku: 1700501

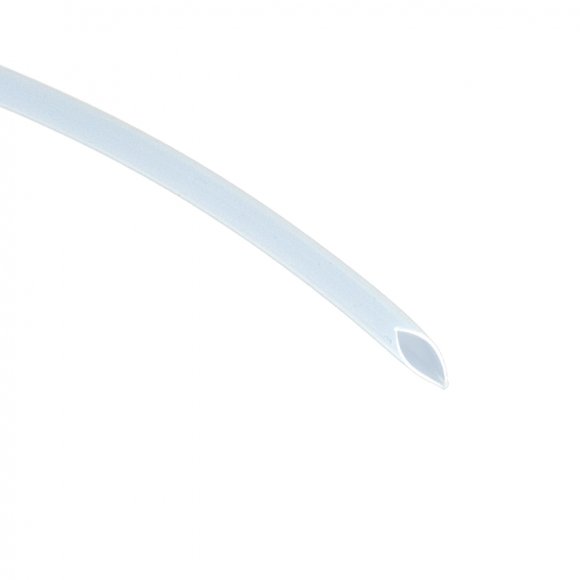

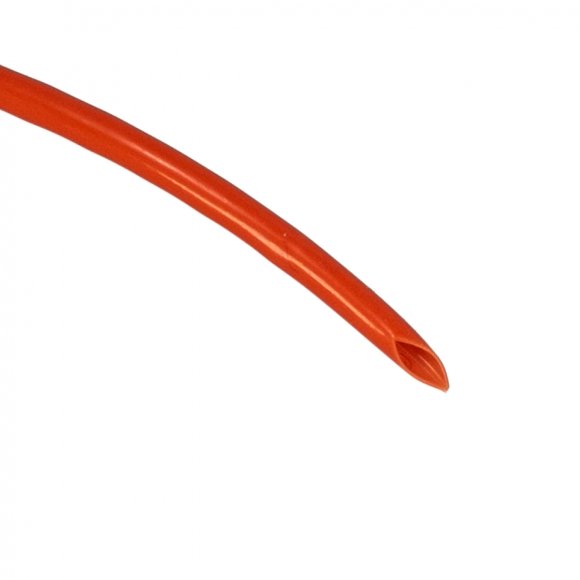

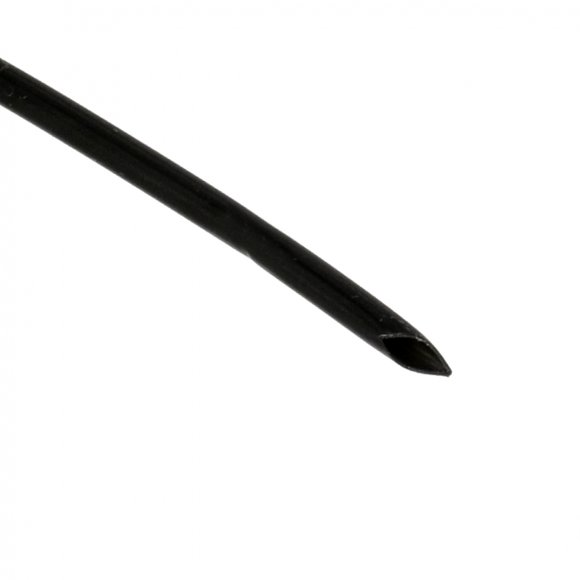

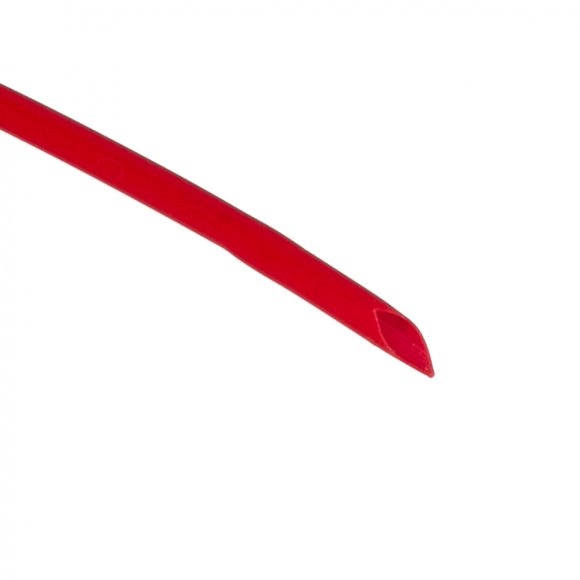

Croysleeve Extruded PTFE Cable Sleeving/Tubing
Order by 2pm for next day UK delivery*
Size not available? Contact us
International orders: shipping calculated after checkout
DESCRIPTION
PTFE is extremely stable at high temperatures and can be used continuously up to 260 °C. It also can perform at cryogenic temperatures and has been used in outer space at temperatures approaching absolute zero. Being virtually inert and possessing unique electrical properties, it is particularly suited for use in demanding wiring applications.
Cutting, winding, and packaging available for all cables and sleeving - see all services here and email sales@croylek.co.uk for a quote
APPLICATIONS
- Electrical insulation
- Cryogenics
- Aerospace
- Cable marking
- Thermocouples
TECHNICAL INFO
|
Dielectric Strength |
40 – 80kV (safe figure 40kV) |
ASTM D149 |
|
|
Volume Resistivity |
1018 Ωcm |
ASTM D257 |
|
|
Surface Resistance |
1017 Ω |
ASTM D257 |
|
|
Mechanical Properties |
|||
|
Tensile Strength
|
Longitudinal |
33 N/mm2 |
DIN 53455 |
|
Transverse |
31 N/mm2 |
ASTM D1457-81 |
|
|
Elongation at Break |
Longitudinal |
350% |
DIN 53455 |
|
Transverse |
610% |
ASTM D1457-81 |
|
|
Density |
2.15 g/cm3 |
ASTM D1457-81 |
|
|
Shrinkage |
Longitudinal |
11% |
|
|
Transverse |
15% |
||
|
Shore Hardness |
D 55 |
ASTM D2240 |
|
|
Thermal Properties |
|||
|
Service Temperature Range |
-70°C to +260°C |
||
|
Melting Range |
320°C to 340°C |
DTA |
|
|
Thermal Conductivity |
0.25 – 0.50W/m.K |
Din 52616 |
|
FEATURES AND BENEFITS
- Very low coefficient of friction
- Anti-stick
- Flexible
- High chemical resistance
- Extreme low temperature capabilities
- Non flammable
- Hydrophobic (repels water)
- Ozone resistant
- U.V. resistant
- Fungus resistant
- UL94 V0 Fire resistance
MATERIAL DATA
| Product Code | 170 |
| Material | PTFE |
| Standard Colour | Natural, Black, Red, Yellow, Blue |
| Operating Temperature – °C | -70 – +260 |
| Elongation at Break – % | 350 |
| Dielectric Strength – kV | 40 – 80 (safe figure 40) |
| Relevant Specifications | BS2848 Type 6 Class 250T, BS EN 60684, BS 6564 |
PRICING
|
AWG SIZE |
NOM BORE (inches) |
WALL THICKNESS (inches) |
STANDARD MOQ |
0-999 MTS |
1000+ MTS |
|
TW5 |
0.190 |
0.015 |
100 |
£2.3051 |
£2.02 |
|
TW6 |
0.169 |
0.015 |
100 |
£2.0355 |
£1.78 |
|
TW7 |
0.151 |
0.015 |
100 |
£1.8639 |
£1.63 |
|
TW8 |
0.135 |
0.015 |
100 |
£1.6671 |
£1.46 |
|
TW9 |
0.120 |
0.015 |
150 |
£1.4795 |
£1.29 |
|
TW10 |
0.107 |
£1.0717 |
200 |
£0.94 |
|
|
TW11 |
0.095 |
0.012 |
250 |
£0.9634 |
£0.84 |
|
TW12 |
0.085 |
0.012 |
250 |
£0.8705 |
£0.76 |
|
TW14 |
0.068 |
0.012 |
500 |
£0.7213 |
£0.63 |
|
TW15 |
0.062 |
0.012 |
500 |
£0.6660 |
£0.58 |
|
TW16 |
0.055 |
0.012 |
500 |
£0.5896 |
£0.52 |
|
TW17 |
0.050 |
0.012 |
500 |
£0.5555 |
£0.49 |
|
TW19 |
0.040 |
0.012 |
500 |
£0.4631 |
£0.41 |
|
TW20 |
0.035 |
0.012 |
500 |
£0.4239 |
£0.37 |
|
TW22 |
0.028 |
0.010 |
500 |
£0.3891 |
£0.34 |
|
TW24 |
0.023 |
0.010 |
500 |
£0.3558 |
£0.31 |
|
TW26 |
0.020 |
0.010 |
1000 |
£0.3229 |
£0.28 |
