- Sku: 7307501

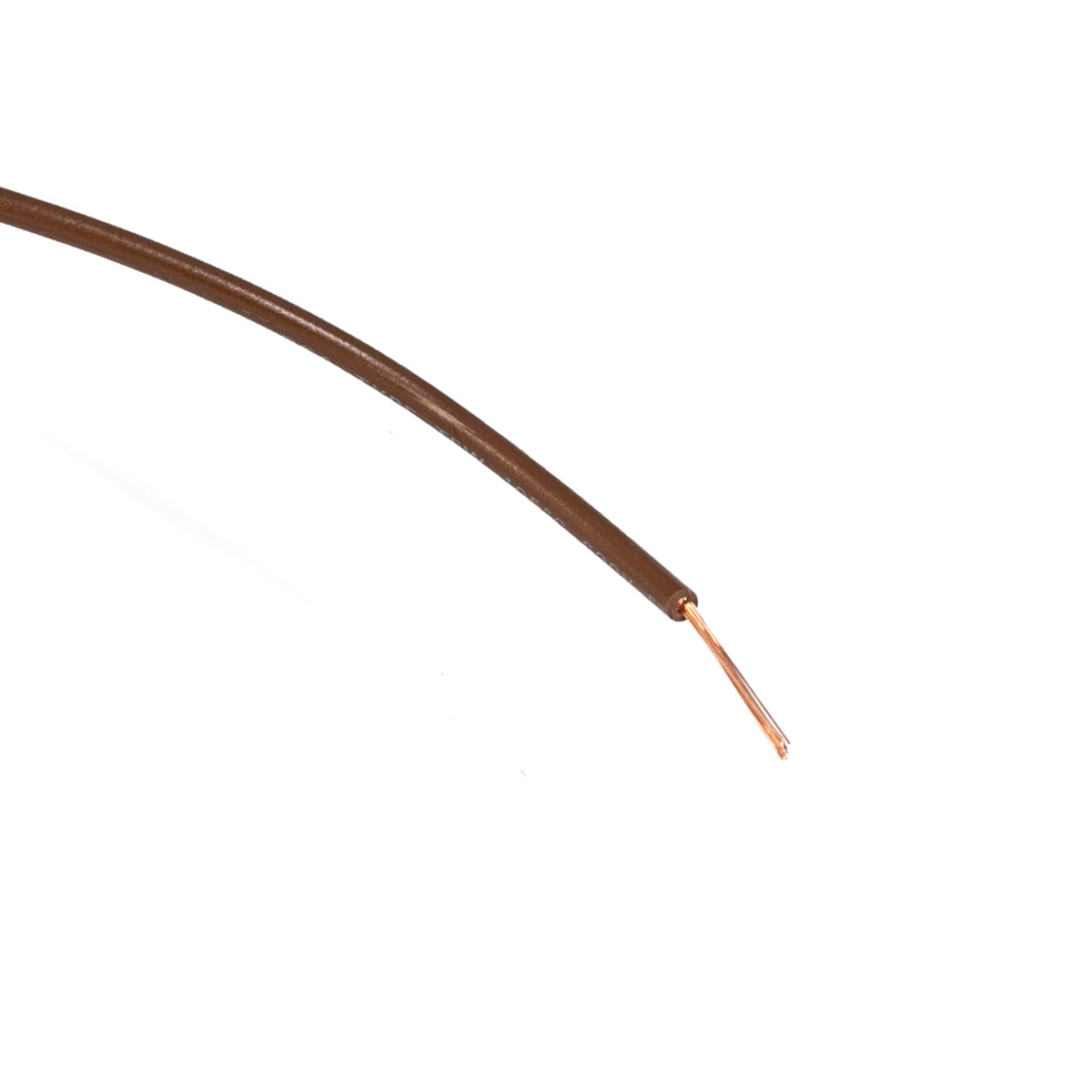

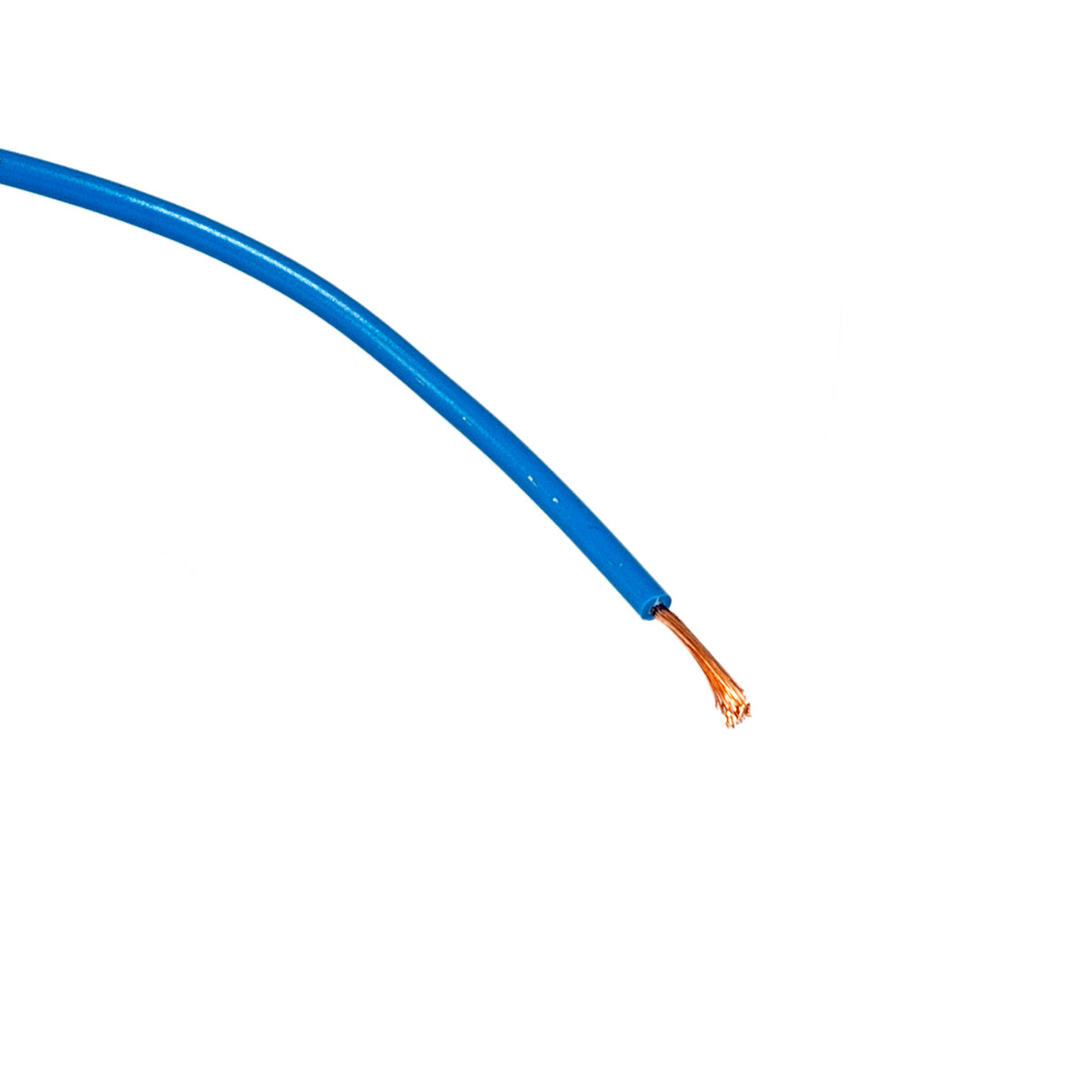

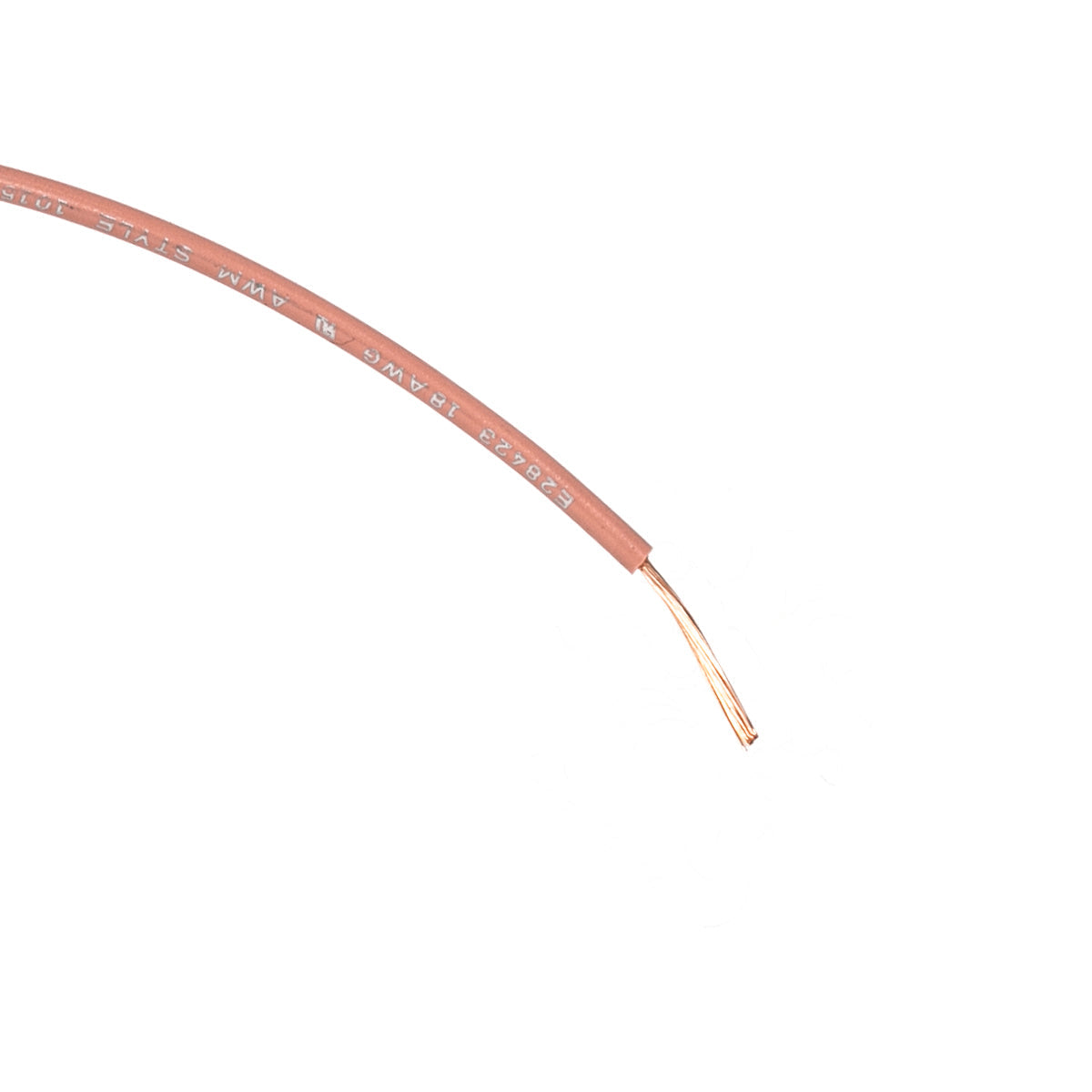

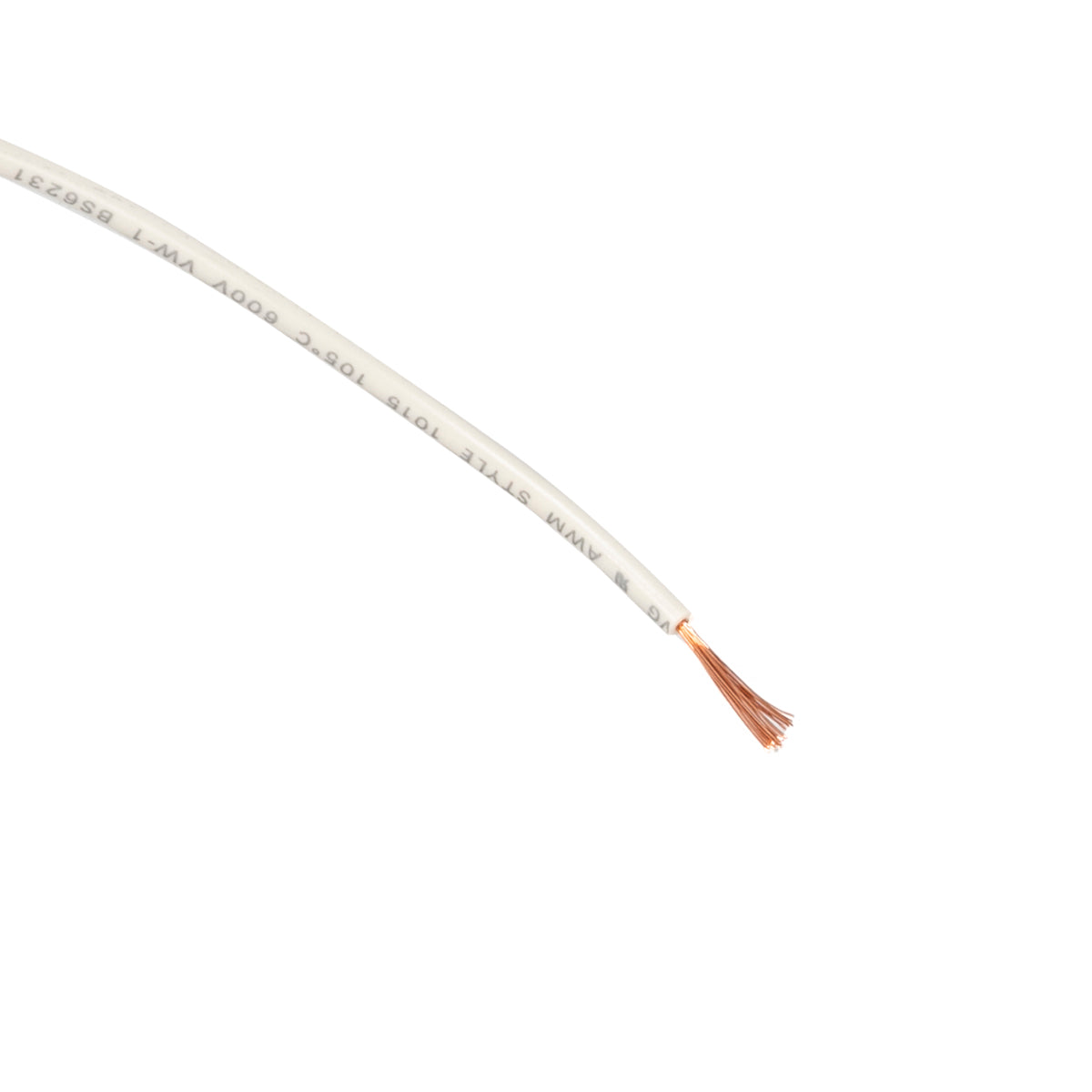

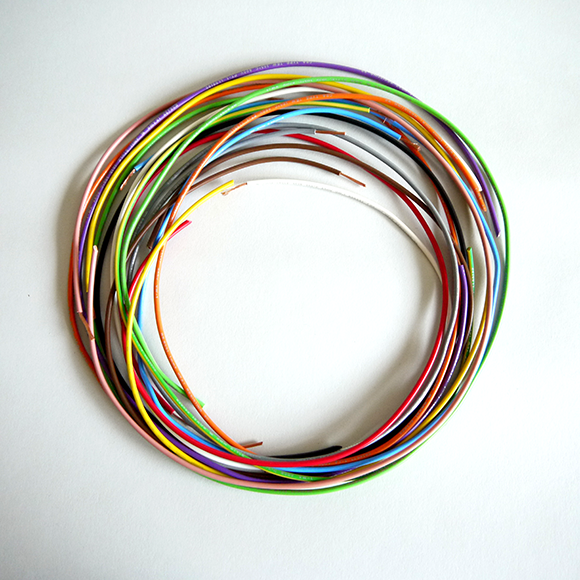

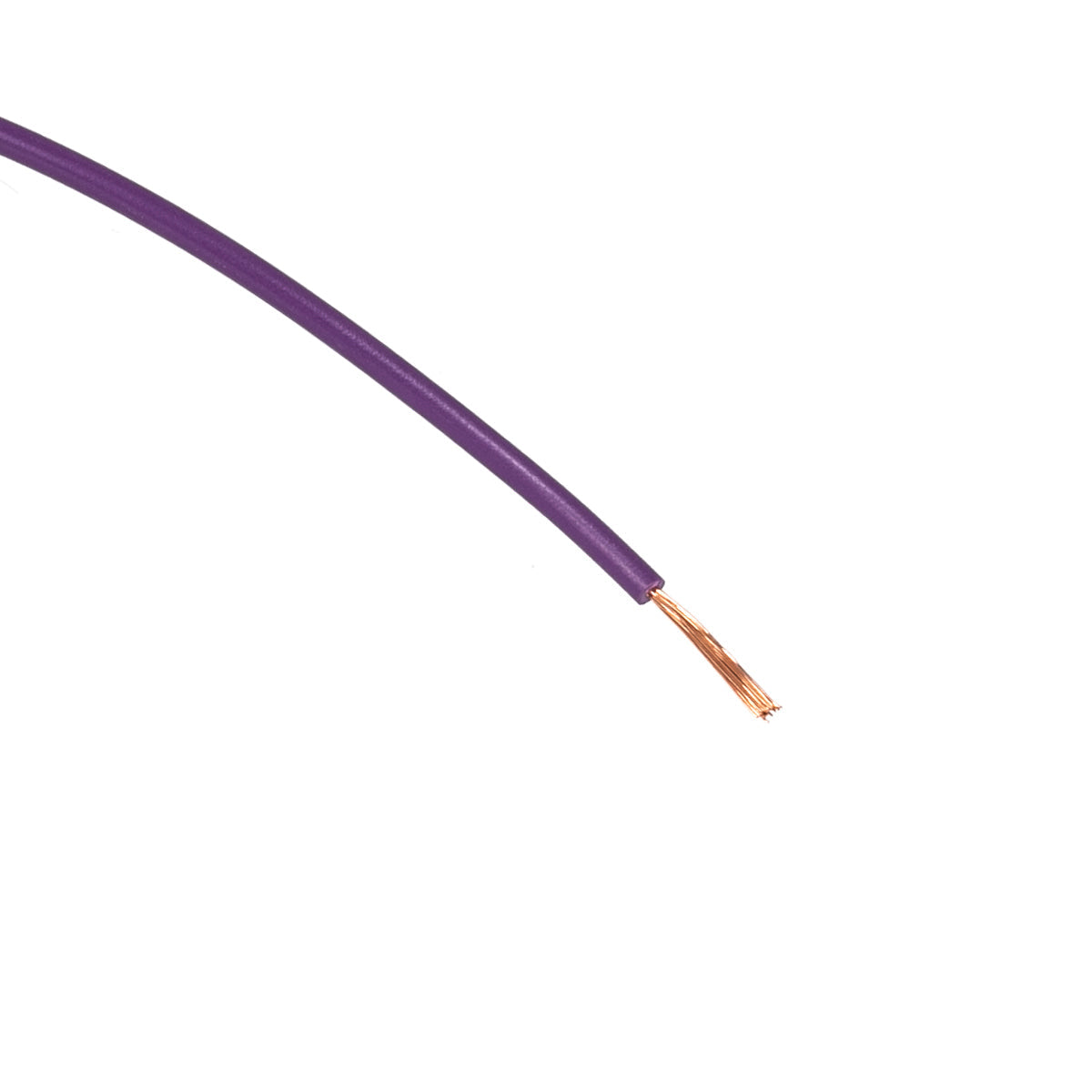

CroyFlex High Temperature Tri-Rated Cable: BS6231, UL, CSA
£8.40 GBP
Order by 2pm for next day UK delivery*
Product out of stock? Size not available? CONTACT US
DESCRIPTION
Tri-rated cable is a high temperature, flame retardant electrical cable, often referred to as Panel Wire or BS6231 Cable. Meeting the requirements of three different international standards (BS6231, UL and CSA) makes Tri-rated cable suitable for use in equipment required to meet both North American and European wiring regulations and helps reduce stock holding.
APPLICATIONS
- Control and instrumentation panel interconnections
- Switchgear
TECHNICAL INFO
|
SPECIFICATION |
|
|
Conductor |
Plain Annealed Copper to:
|
|
Insulation |
PVC compound meeting the requirements of:
|
|
Standards / Conformances |
|
FEATURES AND BENEFITS
- Flexibility
- Excellent chemical resistance
- Easy to cut and strip
- Good soldering iron resistance
- Good current carrying capacity
- Easy processing
- Reduce stock holding
- Flame propagation: meets requirements of BS EN 60332-1; UL VW-1; CSA FT-1
MATERIAL DATA
| Jacket Material | PVC |

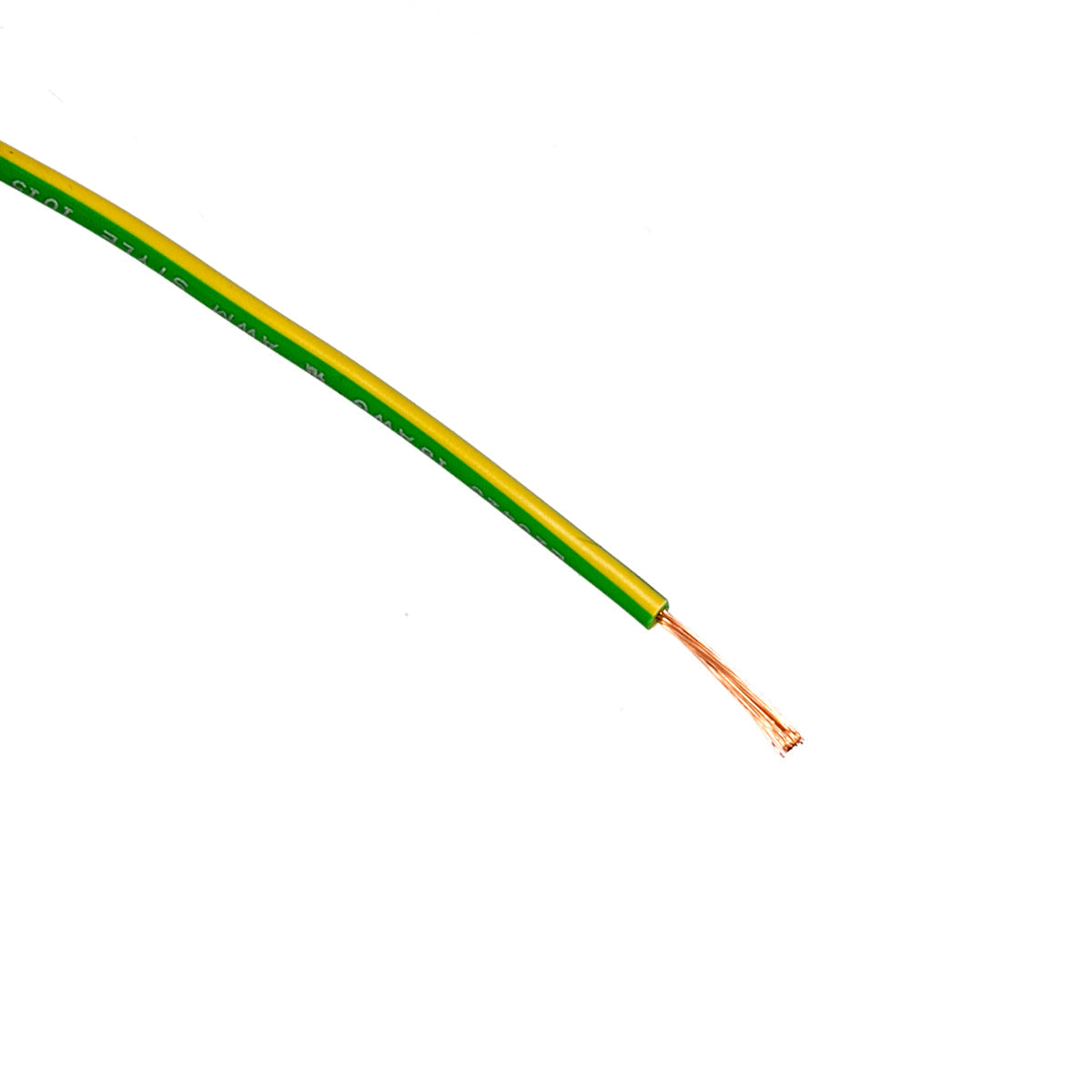

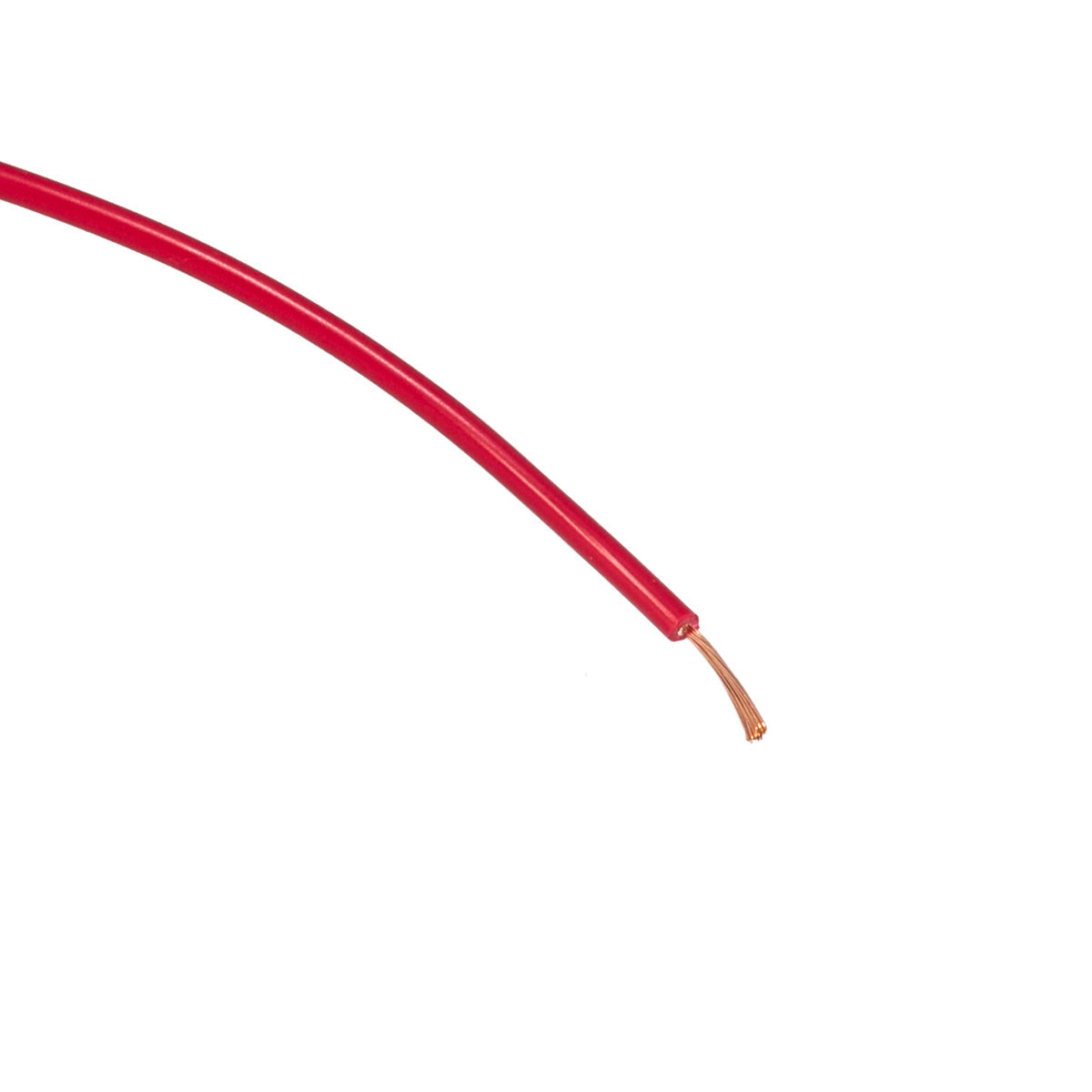

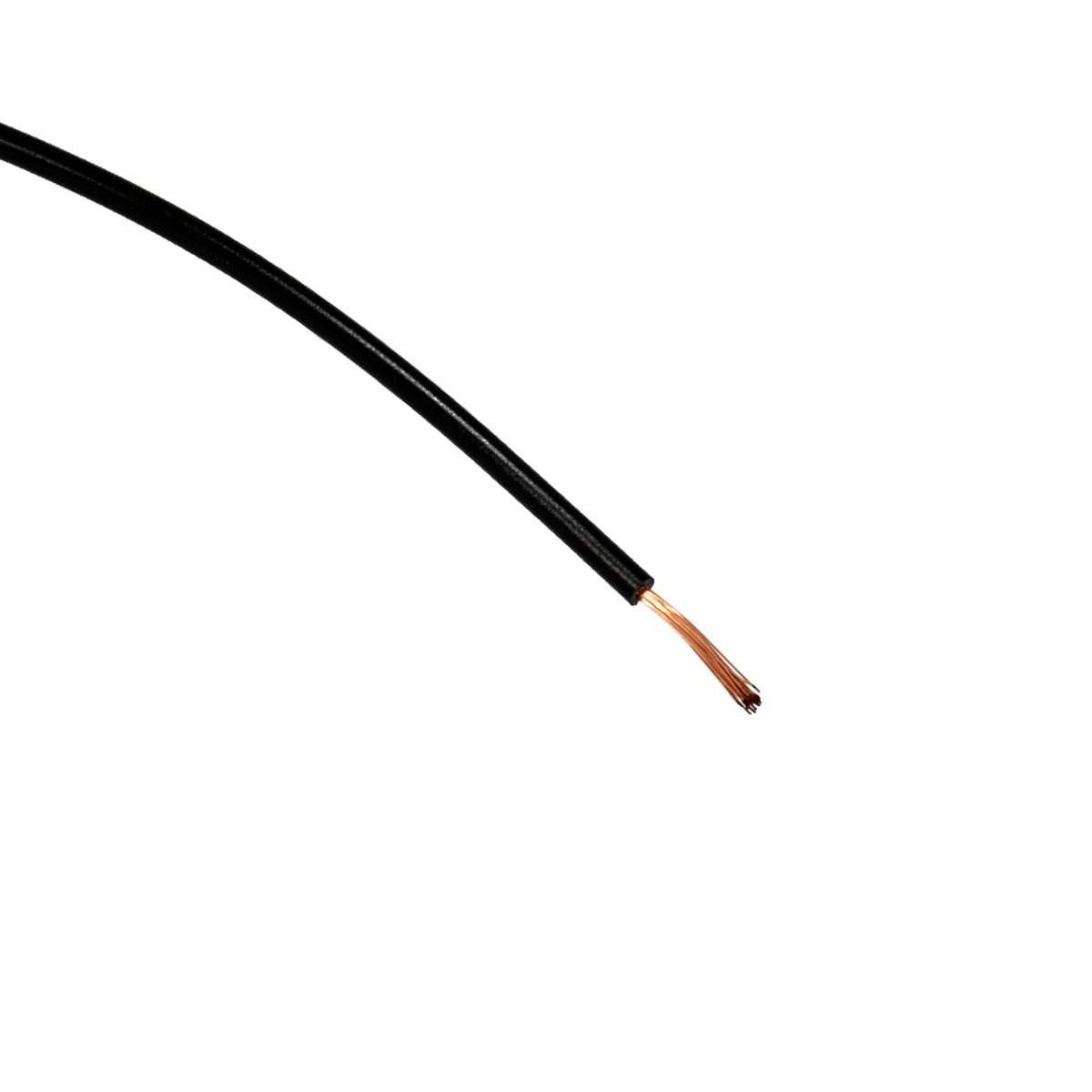

| Standard Colours | Black, Red, Brown, Yellow, Green-Yellow |
| Conductor Type | Plain annealed copper wires |
| Operating Temperature | BS6231 – 90 °C; UL/CSA – 105 °C |
| Rated Voltage – V | 600/1000 |
| Test Voltage – V | 3500 |
| Relevant Specifications | UL style 1015; CSA type TEW; BS6231, type CK; tri-rated |
PRICE MATRIX
| Size | Reel Size |
Price per Mtr |
| 0.50mm | 100m | £0.0644 |
| 0.75mm | 100m | £0.0840 |
| 1.00mm | 100m | £0.1022 |
| 1.50mm | 100m | £0.1344 |
| 2.50mm | 100m | £0.2072 |
