- Sku: 4301013

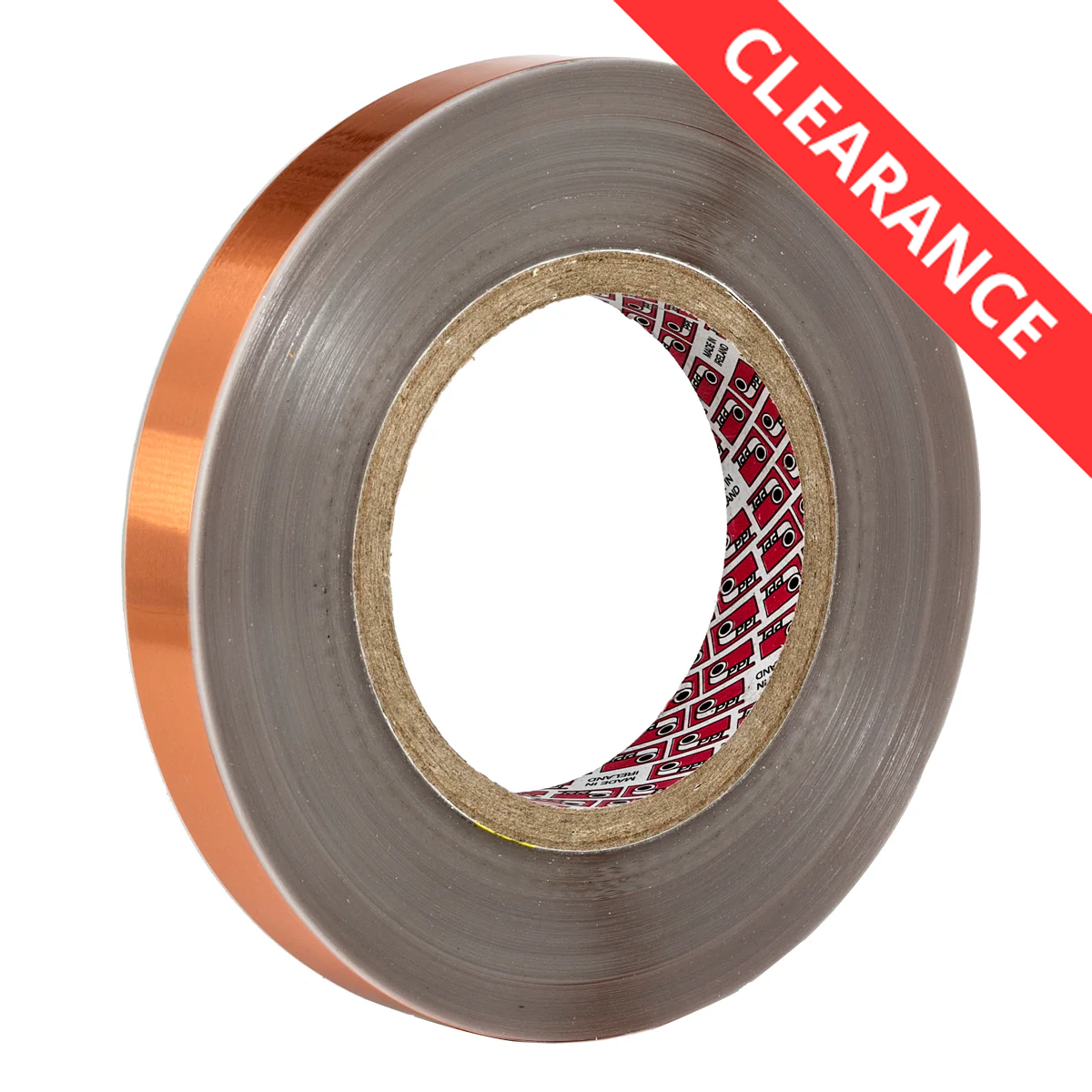

Croytape Copper Screening Tape
2pm cutoff for next day UK delivery*
Size or colour out of stock? Contact us
International customers: shipping will be calculated after checkout
DESCRIPTION

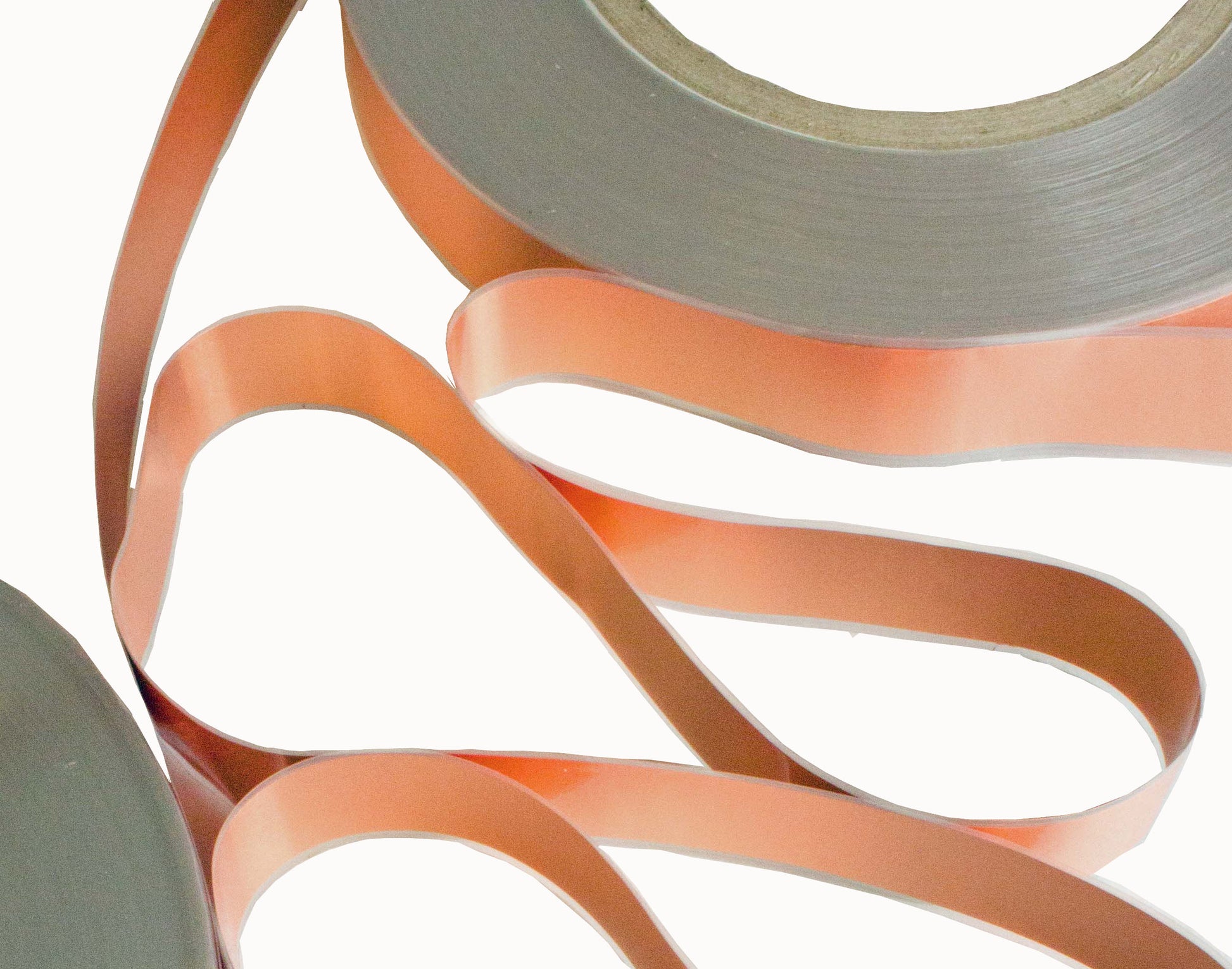

This double sided tape is a special laminate tape based on a soft, annealed copper foil with polyester (polyethylene terephthalate) film. This heat class B (up to 130oC/ 266oF) laminate tape can be supplied in a multitude of film and copper foil thicknesses and width constructions. This wide range of suitable substrates means that a very wide range of customer tailored laminate tapes can be readily produced with excellent quality.
APPLICATIONS
- Toroidal transformers
- Electro-magnetic screening
- Induction loops.
TECHNICAL INFO
| Available Substrates | EN Value | ASTM Value |
| Polyester Film Thicknesses: | 0.025mm | 1.0 Mil |
| 0.036mm | 1.4 Mil | |
| 0.050mm | 2.0 Mil | |
| Copper Foil Thicknesses | 0.025mm | 1.0 Mil |
| 0.035mm | 1.4 Mil | |
| 0.050mm | 2.0 Mil | |
| 0.075mm | 3.0 Mil | |
| 0.100mm | 4.0 Mil | |
| 0.125mm | 5.0 Mil | |
| 0.150mm | 6.0 Mil | |
| 0.175mm | 7.0 Mil | |
| 0.200mm | 8.0 Mil | |
| 0.250mm | 10.0 Mil* | |
| 0.300mm | 12.0 Mil* | |
| 0.400mm | 16.0 Mil* | |
| 0.500mm | 20.0 Mil* |
| Total Roll Width (mm) | Copper Foil Width (Xmm) | Edge Dimension (Y mm) |
| 7.0-18.0 | 4.0-16.0 | 1.0 |
| 19.0-42.0 | 16.0-39.0 | 1.5 |
| 43.0-102.0 | 39.0-98.0 | 2.0 |
| +102.0 | +96.0 | 3.0 |
The above details are based on a standard polyester film (0.025 mm thick) in combination with a standard copper foil (0.035 mm thick). With thick copper foils (i.e.>0.200 mm) it may be difficult to achieve certain tolerances and widths. Further details available on request.
FEATURES AND BENEFITS
- High dielectric strength
- Length: 100M
- Conformable
- UL Approved
MATERIAL DATA
| Operating temperature: | 130℃ |
| Thermal class: | B |
| Dielectric strength (polyester): | 200 kV/mm |
| UL Recognised : File No. | OANZ2.E86214 |
