- Sku: 41013

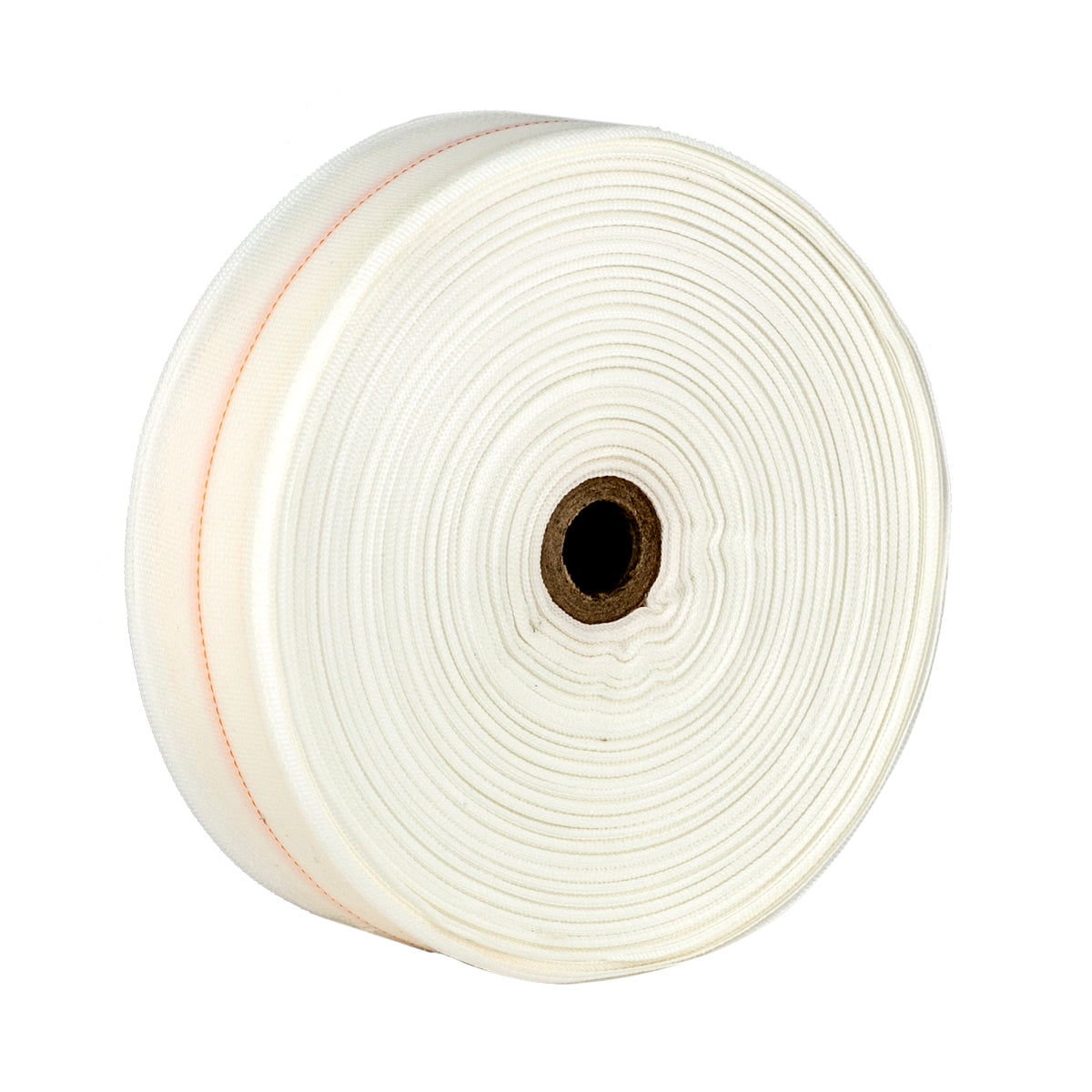

CroyTape Terylene
£2.72 GBP
Order by 2pm for next day UK delivery*
Product out of stock? Size not available? CONTACT US
DESCRIPTION
This tape exhibits excellent handling characteristics and is used in a wide range of electrical equipment. Terylene tape is often employed in Class F (150 °C) rotating machines where an impregnated varnish or resin enhances the thermal ageing characteristics of the yarn.
Exposure at high temperatures will result in a linear shrinkage which can be utilised to consolidate base insulation and improve space factor.
APPLICATIONS
- Wrapping coils
- Tying
- Rotating machines
TECHNICAL INFO
| Unit | Nominal | Tolerance | |
| Thickness | Mm | 0.13 | ±1.02 |
| Weight | g/m2 | 78 | ±8 |
| Tensile strength | N/mm | 11 | ±3 |
| Warp Density | Threads/cm | 40 | ±2 |
| Material: Polyester | dtex | 78 | |
| Weft Density | Threads/cm | 16 | ±1 |
| Material: Polyester | dtex | 110 | |
| Material: Polyester yarn | dtex | 78 | |
| Operating temp. (Class F.) | °C | 155 | |
| Shrink (1h 150°C) | % | 4 |
FEATURES AND BENEFITS
- Compatible with impregnation
- Length: 50M
- Good tensile strength
- Shrinkable
MATERIAL DATA
| Product Code | 410 |
| Material | Polyester |
| Standard Colour | Natural |
| Total Thickness – mm | 0.13 ± 0.02 |
| Operating Temperature – °C | 155 (Class F) |
| Tensile Strength – N/mm | 11 ± 3 |
PRICE MATRIX
|
Size |
Price per Roll |
|
13 mm |
£2.62 |
|
20 mm |
£4.01 |
|
25 mm |
£5.02 |
|
30 mm |
£5.48 |
|
40 mm |
£6.78 |
