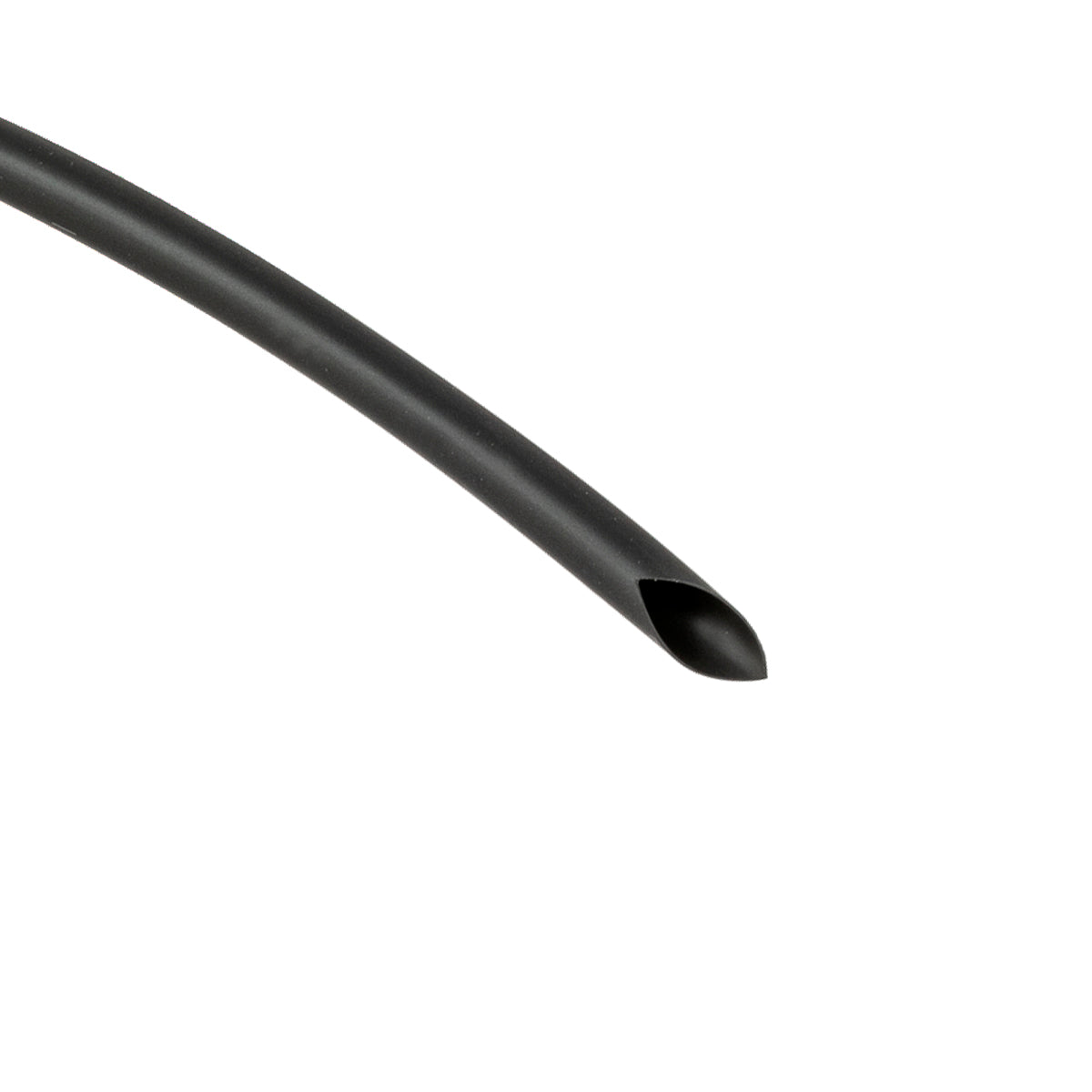

CROYSLEEVE HEATSHRINK POLYOLEFIN

SKU
162
In stock
As low as £42.00
Product out of stock? Size not available?
CONTACT US
Order by 3pm for next day delivery*
DATASHEET (138.40 kB)
Description

This very flexible, flame retardant, radiation cross linked heat shrinkable polyolefin is suitable for a wide range of applications. Operating at a temperature range of -55°C to 135°C, this sleeving is ideal for use in industries such as military, aerospace and railway.

Applications
  • Electrical insulation of wires and cables
  • Protection against abrasion and chemicals
  • Wire bundling and splice protection
  • Cable identification and strain relief
Features and Benefits
  • Flame retardant & extremely flexible
  • Excellent electrical, chemical and physical properties
  • Easy to install
  • Available in a wide range of colours
Material Data
Product Code 162
Material Polyolefin
Shrink Ratio 2:1
Operating Temperature – °C -55  –  +135 (200 °C for short term use)
Technical Info
Dielectric Strength 20KV/mm
Installation Temperature 90°C to 120°C
Relevant Specifications UL 224 CSA RoHS AMS DTL 23053/5



Size (inches) Minimum ID Supplied (mm) Maximum ID Supplied (mm) Recovered Wall Thickness (mm)
3/64 1.20 0.60 0.45
1/16 1.60 0.80 0.45
3/32 2.40 1.20 0.50
1/8 3.20 1.60 0.50
3/16 4.80 2.40 0.50
1/4 6.40 3.20 0.65
3/8 9.50 4.80 0.65
1/2 12.70 6.40 0.65
3/4 19.00 9.50 0.75
1 25.40 12.70 0.90
1 1/4 31.00 16.00 0.95
1 ½ 38.00 19.00 1.00
2 51.00 25.40 1.15
3 76.00 38.00 1.25
4 102.00 51.00 1.40
Price Matrix

Size Inches

Size mm

Reel size

1-999 Mts

1000-2999 Mts

3000+ Mts

1/16

1.60

200m

£0.1950

£0.1820

£0.1690

3/32

2.40

200m

£0.2100

£0.1960

£0.1820

1/8

3.20

200m

£0.2550

£0.2100

£0.1950

3/16

4.80

200m

£0.2700

£0.2520

£0.2340

1/4

6.40

150m

£0.3300

£0.3080

£0.2860

3/8

9.50

150m

£0.4650

£0.4340

£0.4030

1/2

12.70

100m

£0.6000

£0.5600

£0.5200

5/8

16.00

60m

£1.0260

£0.9120

£0.7980

3/4

19.00

60m

£1.2000

£1.1200

£1.0400

1

25.40

50m

£1.5150

£1.4140

£1.3130

1.1/2

38.00

25m

£2.7300

£2.5400

£2.3660

2

50.80

25m

£4.1250

£3.8500

£3.5750
