- Sku: 1620101

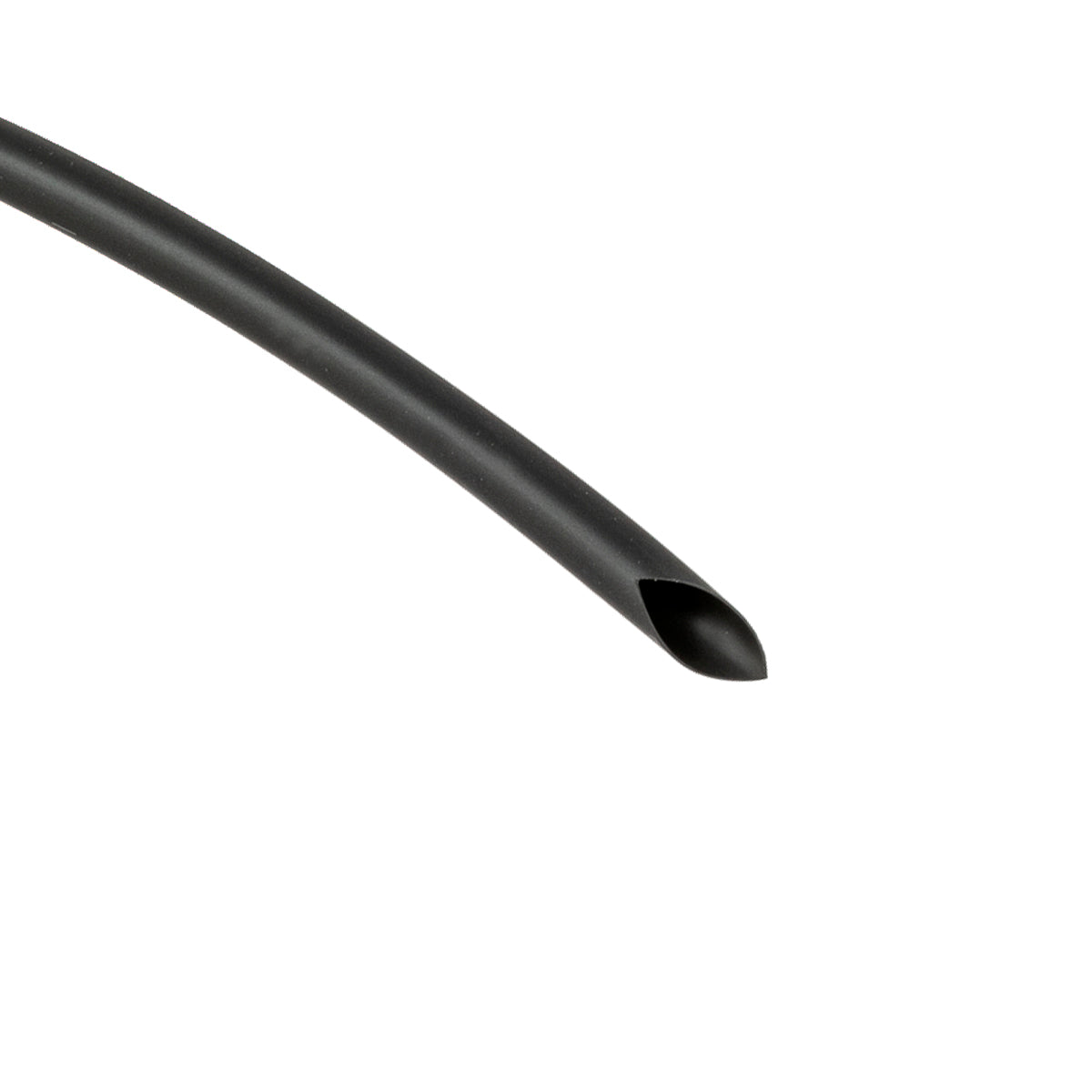

CroySleeve Heat Shrink Polyolefin Cable Sleeving/Tubing
Order by 2pm for next day UK delivery*
Product out of stock? Size not available? CONTACT US
DESCRIPTION
This very flexible, flame retardant, radiation cross linked heat shrinkable polyolefin is suitable for a wide range of applications. Operating at a temperature range of -55°C to 135°C, this sleeving is ideal for use in industries such as military, aerospace and railway.
APPLICATIONS
- Electrical insulation of wires and cables
- Protection against abrasion and chemicals
- Wire bundling and splice protection
- Cable identification and strain relief
TECHNICAL INFO
Dielectric Strength | 20KV/mm | |||
Installation Temperature | 90°C to 120°C | |||
Relevant Specifications | UL 224 | CSA | RoHS | AMS DTL 23053/5 |
Size (inches) | Minimum ID Supplied (mm) | Maximum ID Supplied (mm) | Recovered Wall Thickness (mm) |
3/64 | 1.20 | 0.60 | 0.45 |
1/16 | 1.60 | 0.80 | 0.45 |
3/32 | 2.40 | 1.20 | 0.50 |
1/8 | 3.20 | 1.60 | 0.50 |
3/16 | 4.80 | 2.40 | 0.50 |
1/4 | 6.40 | 3.20 | 0.65 |
3/8 | 9.50 | 4.80 | 0.65 |
1/2 | 12.70 | 6.40 | 0.65 |
3/4 | 19.00 | 9.50 | 0.75 |
1 | 25.40 | 12.70 | 0.90 |
1 1/4 | 31.00 | 16.00 | 0.95 |
1 ½ | 38.00 | 19.00 | 1.00 |
2 | 51.00 | 25.40 | 1.15 |
3 | 76.00 | 38.00 | 1.25 |
4 | 102.00 | 51.00 | 1.40 |
FEATURES AND BENEFITS
- Flame retardant & extremely flexible
- Excellent electrical, chemical and physical properties
- Easy to install
- Available in a wide range of colours
MATERIAL DATA
Product Code | 162 |
Material | Polyolefin |
Shrink Ratio | 2:1 |
Operating Temperature – °C | -55 – +135 (200 °C for short term use) |
PRICE MATRIX
Size Inches |
Size mm |
1-999 Mts |
1000-2999 Mts |
3000+ Mts |
1/16 |
1.60 |
£0.2016 |
£0.1882 |
£0.1747 |
3/32 |
2.40 |
£0.2184 |
£0.2038 |
£0.1893 |
1/8 |
3.20 |
£0.2520 |
£0.2352 |
£0.2184 |
3/16 |
4.80 |
£0.2856 |
£0.2666 |
£0.2475 |
1/4 |
6.40 |
£0.3528 |
£0.3293 |
£0.3058 |
3/8 |
9.50 |
£0.5208 |
£0.4861 |
£0.4514 |
1/2 |
12.70 |
£0.6048 |
£0.5645 |
£0.5242 |
3/4 |
19.00 |
£1.2600 |
£1.1760 |
£1.0920 |
1 |
25.40 |
£1.5150 |
£1.4140 |
£1.3130 |
1.1/2 |
38.00 |
£2.0700 |
£1.9320 |
£1.7940 |
2 |
50.80 |
£4.1250 |
£3.8500 |
£3.5750 |
