- Sku: 3240600

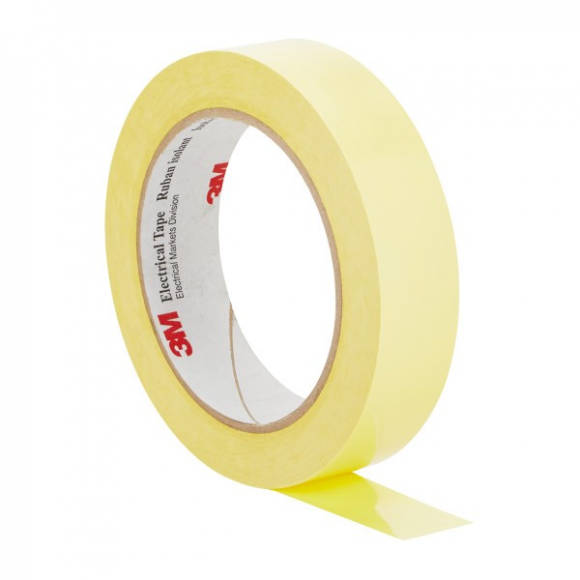

3M™ Polyester Film Tape No.56
Order by 2pm for next day UK delivery*
Product out of stock? Size not available? CONTACT US
DESCRIPTION
Pressure-sensitive, thermosetting, rubber adhesive has polyester film backing that provides optimised adherence.
APPLICATIONS
3M 56 Tape is especially suited for use as a coil cover and as layer insulation
TECHNICAL INFO
Withstands a temperature range of 0 to 130°C
FEATURES AND BENEFITS
- Wtihstands a temperature range of 0 to 130°C
- 3M™ Polyester Film Electrical Tape 56 is a 1-mil conformable yellow polyester film tape with rubber thermosetting adhesive. It provide excellent chemical, solvent and moisture resistance that resists cut-through and abrasion. It is designed for insulating applications requiring a thin, durable tape.
MATERIAL DATA
|
Adhesive Type |
Thermosetting Rubber |
|
Backing (Carrier) Material |
Polyester |
|
Backing (Carrier) Thickness (Metric) |
0.025 mm |
|
Brands |
3M™ |
|
Dielectric Strength |
5500 V |
|
Electrolytic Corrosion Factor |
1.0 |
|
Elongation at Break |
100.0 Percent |
|
Insulation Resistance |
> 10^6 megohms |
|
Maximum Operating Temperature (Celsius) |
130 ℃ |
|
Product Colour |
Yellow |
|
Shelf Life |
5 Year |
|
Smallest Saleable Unit |
Roll |
|
Tape Grade |
Professional |
|
Tensile Strength (metric) |
44 N/cm |
|
Total Tape Thickness without Liner (Imperial) |
2.3 mil |
|
Total Tape Thickness without Liner (metric) |
0.058 mm |
|
eClass 14 Classification Group |
27140708 |
PRICE MATRIX
| Size | Price per Roll |
| 6mm | £9.48 |
| 12mm | £9.48 |
| 19mm | £14.97 |
| 25mm | £20.18 |
