- Sku: 3181200

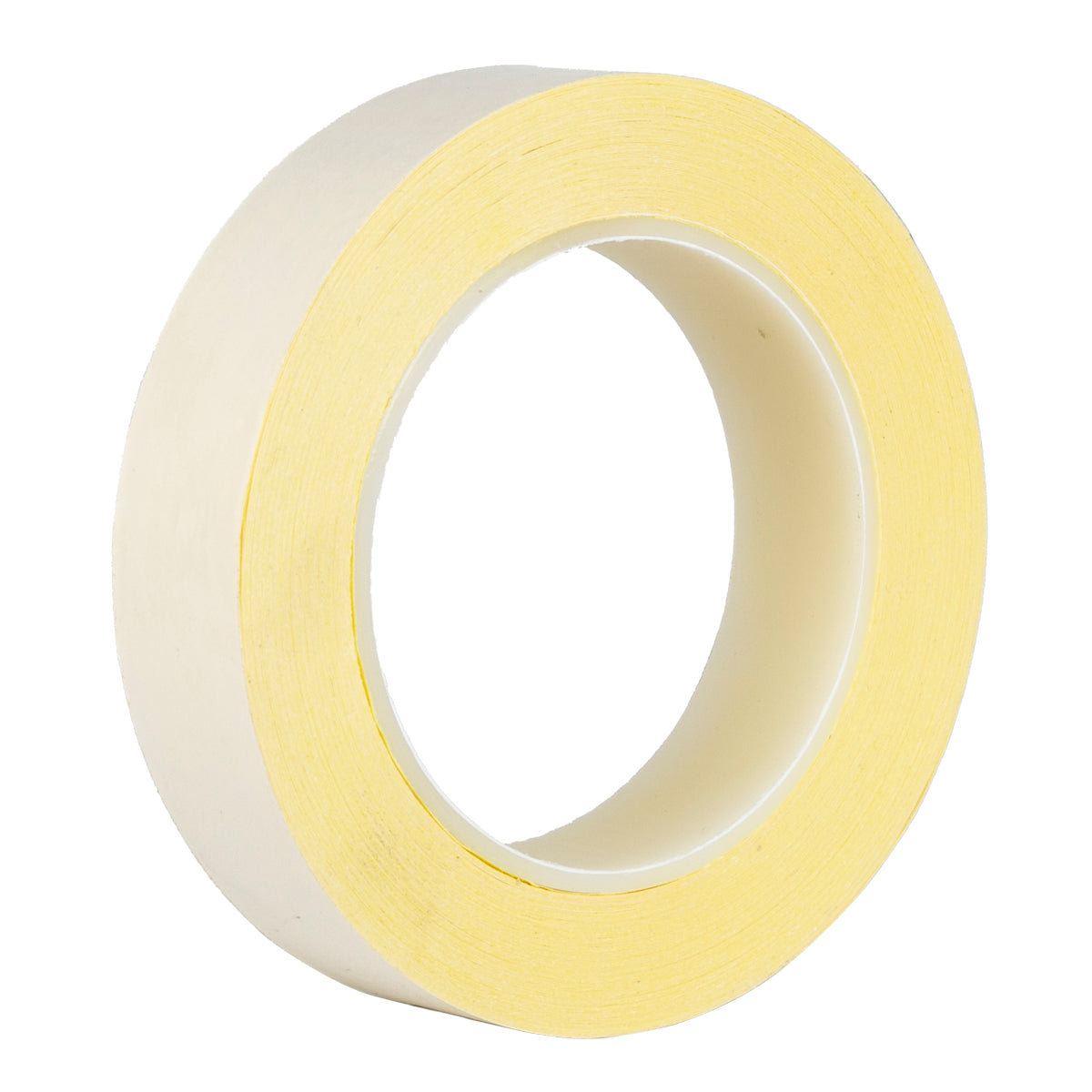

3M™ Double-Sided Polyester Film Electrical Tape 75
£10.53 GBP
Order by 2pm for next day UK delivery*
Product out of stock? Size not available? CONTACT US
DESCRIPTION
3Mâ„¢ 75 Tape is a double-coated 1-mil polyester film with rubber thermosetting adhesive.
Like all 3M insulating tapes, 3M 75 Tape is available in standard and custom widths and lengths. Standard length is 36 yards.
• Widths from 1/4” to 15.5
• Longer lengths up to several times normal length, dependent upon width. Check with our experts for more details.
APPLICATIONS
3M 75 Tape is especially suited for use in bonding applications requiring a positive insulation barrier.
FEATURES AND BENEFITS
- 1.0-mil polyester film backing
- Length: 33M
- Rubber thermosetting adhesive
- Supplied on 3 inch cores
MATERIAL DATA
| Properties | Typical Values |
| Adhesive | Rubber Thermosetting |
| Backing |
Polyester Film |
| Backing Thickness | 1.0 Mil |
| Total Thickness | 3.8 mils/0.096mm |
| Colour | Yellow |
| Temperature Class | 130°C / 266°F |
| Dielectric Breakdown | 6500 Volts |
| Insulation Resistance (megohms) | >1 x 10 8 |
| Breaking Strength | 25lbs./in. (44 n/10mm) |
| Elongation (% at break) | 100 |
| Electrolytic Corrosion Factor | 1.0 |
| Adhesion to Steel | 45 oz./in. (4,9 n/10mm) |
PRICE MATRIX
| Size | 12MM | 25MM |
| Price per reel | £10.53 | £20.84 |
