- Sku: 2100101
Relats Acrylic-Coated Braided Cable Sleeving/Tubing, 3kV
Order by 2pm for next day UK delivery*
Product out of stock? Size not available? CONTACT US
DESCRIPTION

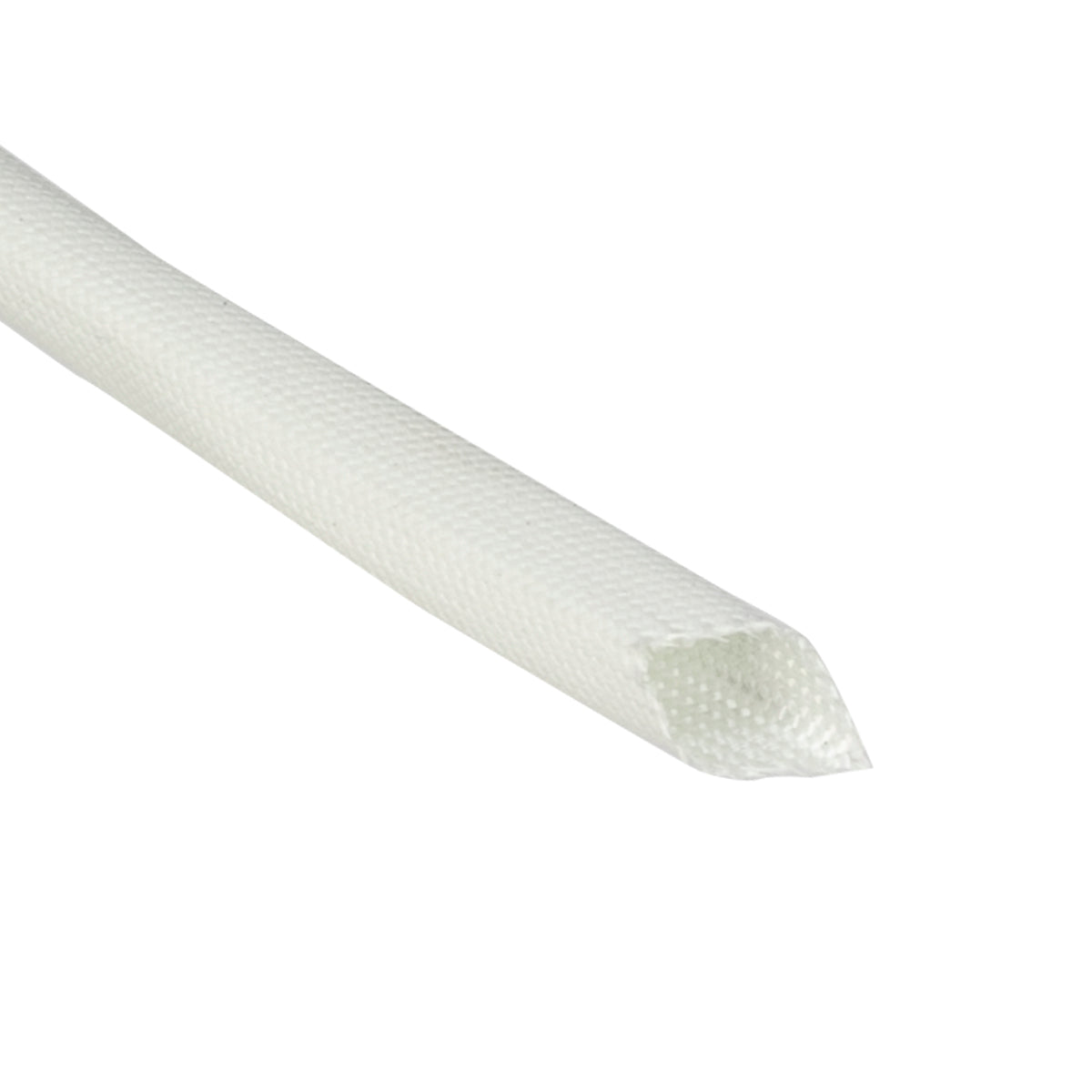

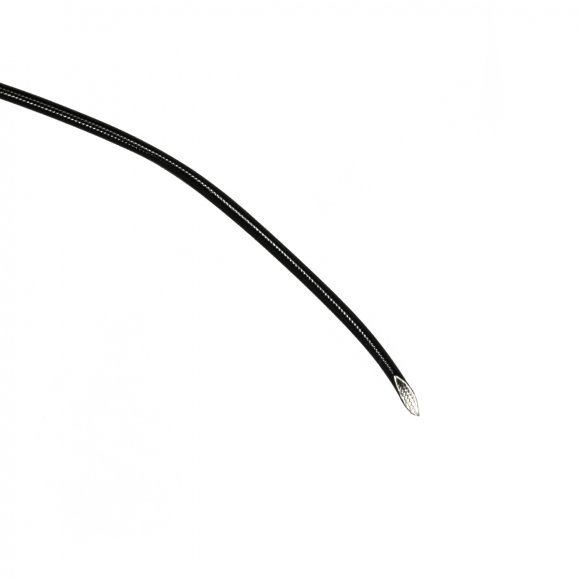

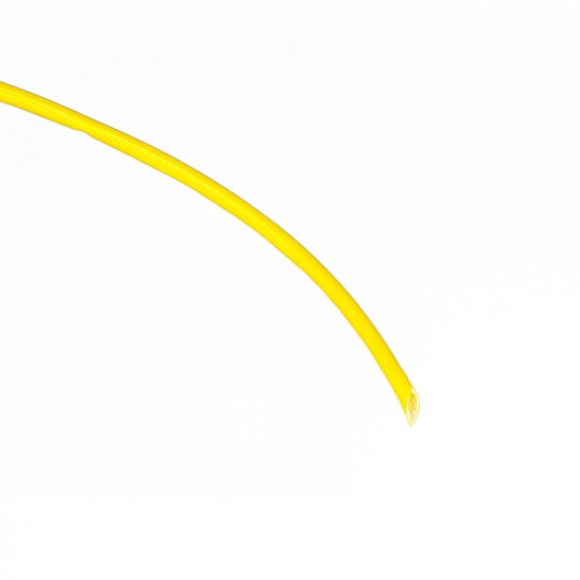

This is a fibreglass braid saturated in acrylic varnish making it a tough and flexible insulation material. It possesses good electrical and mechanical strength and has excellent compatibility with Class F impregnating resins and varnishes, making it ideal for protecting electrical conductors and terminals.
Please note: Care should be taken to minimise dust formation during handling and cutting this glass based material as dust or broken particles may cause skin irritation.
APPLICATIONS
- Harnessing
- Mechanical protection
- Electrical insulation
- Motor and transformer insulation
TECHNICAL INFO
| Property | Test | Result |
| Heat Resistance | Bending after heating IEC 60684 Part 2 Clause 13 48 hours at 180°C |
No cracking or detachment of coating shall be visible and the original colours shall be clearly recognisable |
| Flammability | Flame propagation IEC 60684 Part 2 Clause 26 Method A Vertical with mandrel |
Extinguishes within 60 seconds |
| Cold Resistance | Bending at low temperature: IEC 60684 Part 2 Clause 14 At -70°C |
No cracking or detachment of coating shall be visible |
| Chemical Resistance | Simulation of real operating conditions | Compatible with most insulating varnishes |
DIMENSIONS
| Reference | Nominal bore (mm) | Bore tolerance (mm) | Minimum Wall thickness (mm) | Standard Packaging (m) |
| VAC30_ _005 | 0.5 | + 0.20 | 0.20 | 400 |
| VAC30_ _010 | 1.0 | + 0.20 | 0.30 | 300 |
| VAC30_ _015 | 1.5 | + 0.20 | 0.30 | 300 |
| VAC30_ _020 | 2.0 | + 0.20 | 0.30 | 200 |
| VAC30_ _025 | 2.5 | + 0.20 | 0.30 | 200 |
| VAC30_ _030 | 3.0 | + 0.30 | 0.30 | 200 |
| VAC30_ _040 | 4.0 | + 0.30 | 0.30 | 200 |
| VAC30_ _050 | 5.0 | + 0.30 | 0.40 | 100 |
| VAC30_ _060 | 6.0 | + 0.30 | 0.40 | 100 |
| VAC30_ _070 | 7.0 | + 0.30 | 0.40 | 100 |
| VAC30_ _080 | 8.0 | + 0.50 | 0.45 | 100 |
| VAC30_ _100 | 10.0 | + 0.50 | 0.45 | 100 |
| VAC30_ _120 | 12.0 | + 0.50 | 0.45 | 50 |
| VAC30_ _140 | 14.0 | + 0.50 | 0.60 | 50 |
| VAC30_ _160 | 16.0 | + 0.50 | 0.60 | 50 |
| VAC30_ _180 | 18.0 | + 0.50 | 0.60 | 50 |
| VAC30_ _200 | 20.0 | + 0.50 | 0.60 | 25 |
| VAC30_ _220 | 22.0 | + 0.50 | 0.60 | 25 |
| VAC30_ _250 | 25.0 | + 0.50 | 0.60 | 25 |
FEATURES AND BENEFITS
- Good flexibility – electrical properties maintained after flexing
- Good temperature resistance
- Excellent chemical resistance (oils, fluids, aggressive chemical agents)
- Good mechanical resistance
- Halogen free
- Non fraying
- Good abrasion resistance
- Compatible with most insulating varnishes
MATERIAL DATA
|
Product Code |
210 |
|
Material |
Acrylic |
|
Standard Colour |
Natural, Black, Red, Yellow |
|
Operating Temperature – °C |
-25 – +155 |
|
Relevant Specifications |
UL 1441, IEC 60684 Part 2 |
DIELECTRIC STRENGTH
|
TEST |
METHOD |
VAC30 MINIMUM |
VAC30 AVE |
|
IEC 60684 |
250 mm.Inst. B / D Central Value ( kV) |
3.0 |
4.0 |
|
IEC 60684 |
250 mm.Inst. B / D Central Value ( kV) |
2.5 |
3.5 |
|
UL 1441 |
25 mm.Inst. B / D ( kV) |
4.0 |
4.5 |
PRICE MATRIX
|
SIZE (mm) |
1-1499 Metres |
1500+ Metres |
|
0.50 |
£14.65 |
£13.64 |
|
1.00 |
£16.20 |
£15.08 |
|
1.50 |
£19.08 |
£17.77 |
|
2.00 |
£20.94 |
£19.49 |
|
2.50 |
£24.94 |
£23.22 |
|
3.00 |
£28.97 |
£26.97 |
|
3.50 |
£32.34 |
£30.11 |
|
4.00 |
£38.74 |
£36.07 |
|
5.00 |
£43.83 |
£40.81 |
|
6.00 |
£50.07 |
£46.62 |
|
7.00 |
£58.94 |
£54.88 |
|
8.00 |
£76.59 |
£71.31 |
|
9.00 |
£89.86 |
£83.66 |
|
10.00 |
£104.27 |
£97.08 |
|
12.00 |
£119.73 |
£111.47 |
|
14.00 |
£151.57 |
£141.12 |
|
16.00 |
£193.81 |
£180.44 |
