- Sku: 2400301

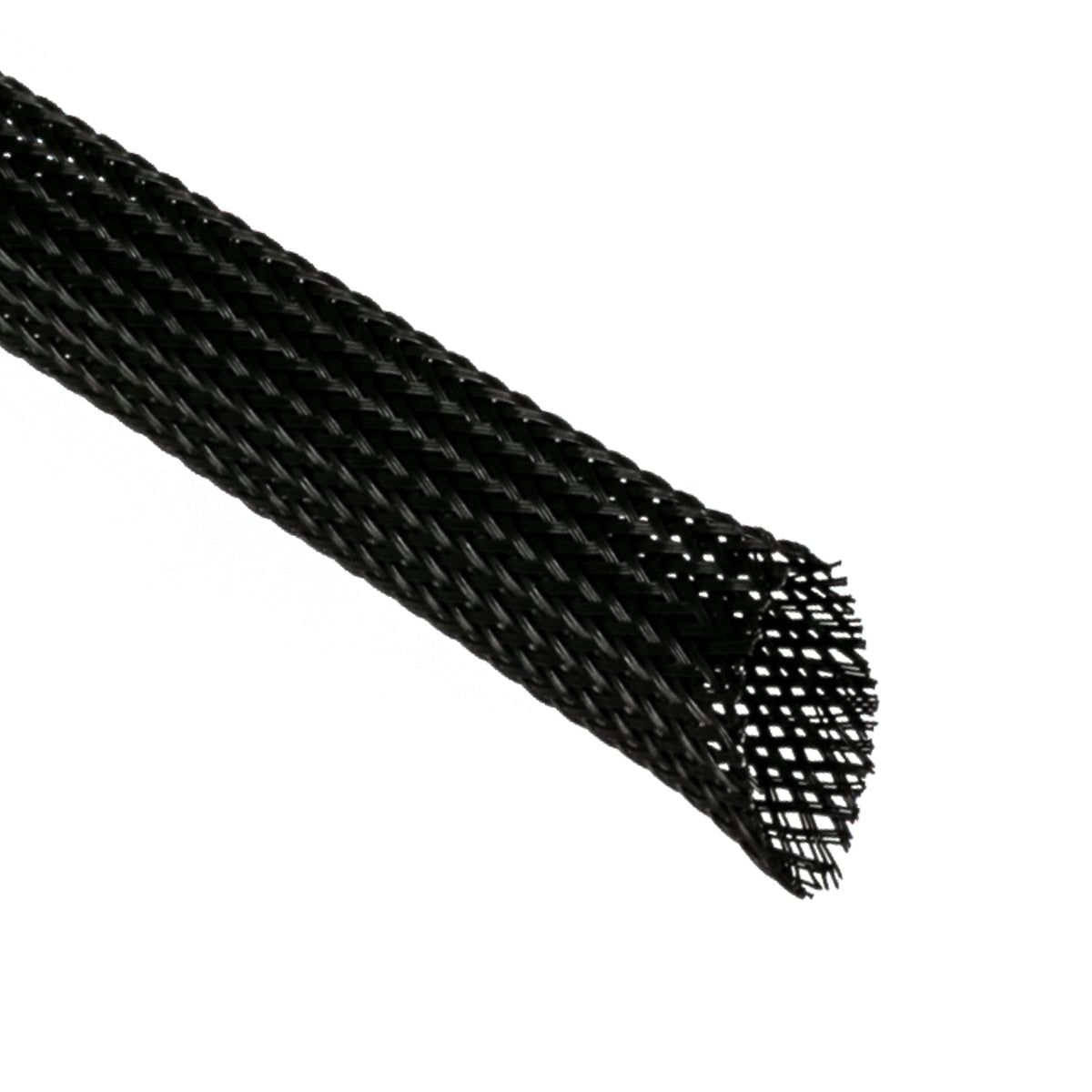

CroySleeve Expandable Polyester/Monofilament Braided Cable Sleeving/Tubing
Order by 2pm for next day UK delivery*
Product out of stock? Size not available? CONTACT US
DESCRIPTION
Made of 0.22mm diameter monofilament polyester, this sleeve is widely used in mechanical and thermal applications, providing good protection to cable bundles and offers excellent abrasion resistance. The special braiding allows this sleeve to considerably increase the inside diameter whilst at the same time contracting in length, is lightweight and very tough, making it an ideal general purpose cable harness sleeve.
Handling: No special handling requirements. To ensure sealed ends, it is recommended to cut to length using a hot knife.
APPLICATIONS
- Stress relief
- Harnessing
- Mechanical and thermal protection
TECHNICAL INFO
|
PROPERTY |
TEST |
RESULT |
||
|
Thermal overcharge and ageing resistance |
Simulation of real operating conditions |
Good resistance to thermal overcharges. Maintains its properties after accelerated thermal ageing: 10 days at 175°C |
||
|
Longitudinal change |
IEC 60684 – Part 2 Clause 9 4 hours at 175°C |
10% max. |
||
|
Flammability |
UL 224 |
Self-extinguishing |
||
|
Abrasion resistance |
SAE ARP 1536 A |
Min. 70,000 cycles ( Ñ„ 20mm) |
||
|
Cold resistance |
Bending at low temperature. IEC 60684 – Part 2 Clause 14 |
No cracking after bending at -40°C |
||
|
Chemical resistance |
Simulation of real operating conditions |
In general good resistance to aggressive chemical agents |
||
|
Fluid |
1 hour at 23°C |
5 minutes at 90°C |
||
|
Unleaded 98 octane petrol |
Pass |
---- |
||
|
Diesel Fuel |
Pass |
---- |
||
|
Antifreeze – Renault Glace RX Type D |
Pass |
---- |
||
|
Windscreen washer fluid – ad. Pro |
Pass |
---- |
||
|
White Spirit |
Pass |
|
||
|
Brake fluid - DOTS |
----- |
Pass |
||
|
Motor Oil |
----- |
Pass |
||
|
Cold degreaser – Renault 20 |
||||
FEATURES AND BENEFITS
- Extremely flexible
- 1:2 expansion ratio (approx.)
- Halogen free
- Good chemical resistance
- Very good abrasion resistance
- Self-extinguishing
MATERIAL DATA
| Product Code | 240 |
| Material | Monofilament Polyester |
| Standard Colour | Black, Grey |
| Expansion Ratio | 1:2 (approx.) |
| Operating Temperature – °C | -40 – +150 |
| Approval | UL 224, IEC 60684, SAE ARP 1536 A |
PRICE MATRIX
|
SIZE |
1-999 MTRS |
1000-4999 MTRS |
5000 MTRS + |
|
3MM |
£15.55 |
£14.54 |
£13.44 |
|
4MM |
£17.59 |
£16.46 |
£15.21 |
|
5MM |
£23.34 |
£21.84 |
£20.18 |
|
6MM |
£26.04 |
£24.36 |
£22.51 |
|
8MM |
£30.29 |
£28.33 |
£26.18 |
|
10MM |
£36.38 |
£34.03 |
£31.45 |
|
12MM |
£41.43 |
£38.76 |
£35.82 |
|
15MM |
£48.10 |
£44.99 |
£41.58 |
|
20MM |
£63.07 |
£59.00 |
£54.52 |
|
25MM |
£79.83 |
£74.68 |
£69.01 |
|
30MM |
£96.77 |
£90.52 |
£83.66 |
|
40MM |
£128.67 |
£120.36 |
£111.23 |
|
50MM |
£163.74 |
£153.18 |
£141.56 |
