- Sku: 2450801

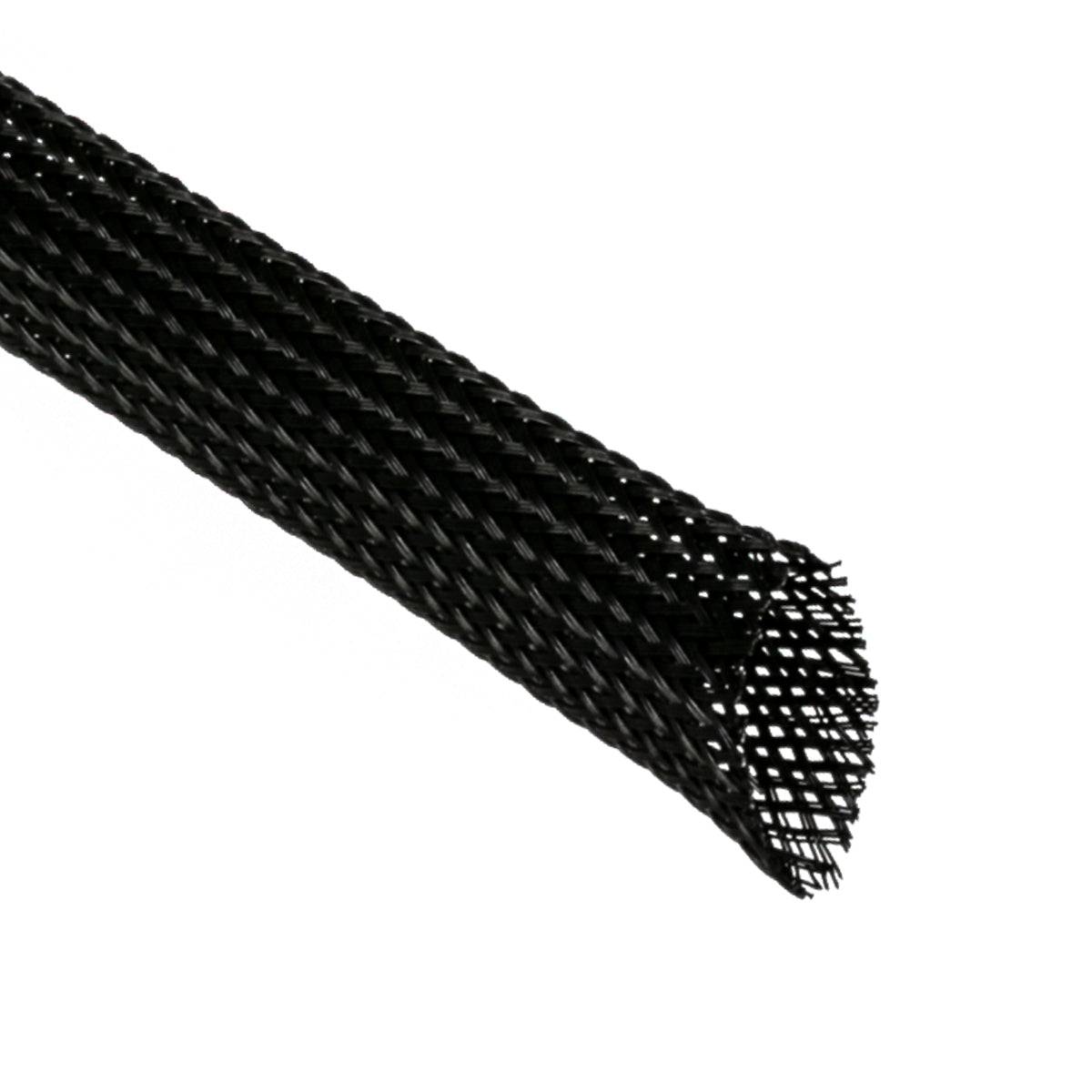

CroySleeve Flame Retardant Polyester Monofilament Braided Cable Sleeving/Tubing
Order by 2pm for next day UK delivery*
Product out of stock? Size not available? CONTACT US
DESCRIPTION
Made of 0.22mm diameter monofilament polyester, this sleeve is widely used in mechanical and thermal applications, providing good protection to cable bundles and offering excellent abrasion resistance. The special braiding allows this sleeve to considerably increase the inside diameter whilst at the same time contracting in length, is lightweight and very tough, making it an ideal general purpose cable harness sleeve.
Handling: No special handling requirements. To ensure sealed ends, it is recommended to cut to length using a hot knife.
APPLICATIONS
- Stress relief
- Harnessing
- Mechanical and thermal protection
- Rail harnesses-EN45545 HL1,2 & 3
TECHNICAL INFO
|
Property |
Test |
Results |
||
|
Thermal overcharge and ageing resistance |
Simulation of real operating conditions |
Good resistance to thermal overcharges. Maintains its properties after accelerated thermal ageing: 10 days at 175°C |
||
|
Longitudinal Change |
IEC 60684 – Part 2 Clause 9 4 hours at 175°C+2°C |
10% Maximum |
||
|
Chemical Resistance |
Simulations of real operating conditions |
Fluid |
1 hour @ 23°C |
5mins @ 90°C |
|
Unleaded 98 Octane Petrol |
Pass |
---- |
||
|
Diesel Fuel |
Pass |
---- |
||
|
Antifreeze - Renault Glaceol RX Type D |
Pass |
Pass |
||
|
Windscreen washer fluid - ad. Pro |
Pass |
---- |
||
|
White spirit |
Pass |
---- |
||
|
Brake fluid - DOT5 |
---- |
Pass |
||
|
Motor oil - Elf Competition 15W50S |
---- |
Pass |
||
|
Cold degreaser - Renault 20 |
---- |
Pass |
||
|
Flammability |
FMV SS302 |
Self-extinguishing |
|
|
|
Cold Resistance |
Bending at low temperature IEC 60684 – Part 2 Clause 14 |
No cracking after bending at -70°C |
||
|
Smoke Density |
ISO 5659-2 |
Ds max: 114 |
||
|
Gas Toxicity |
NF X-70-100-1 2006 NF X-70-100-2 2006 |
Conventional Toxicity Index ITC: 8,56 |
||
|
Oxygen Index |
NF EN ISO 4589-2 1999 |
I O: 34,3% |
||
|
Smoke Class |
NF F 16-101 |
Smoke Index IF: 12 ; Smoke Class: F1; Reaction to fire Class: I2 |
||
|
Fire Behaviour |
EN 45545-2 2013 |
R22&R23 : Hazard level HL1, HL2, HL3 |
||
FEATURES AND BENEFITS
- Extremely flexible
- 1:2 expansion ratio (approx.)
- Halogen free
- Good chemical resistance
- Very good abrasion resistance
- Self-extinguishing
- UL94 V0 (raw material)
- IEC60684 sheet 341
- EN 45545-2 2013
MATERIAL DATA
| Product Code | 245 |
| Material | Monofilament Polyester |
| Standard Colour | Black, Grey |
| Expansion Ratio | 1:2 (approx.) |
| Operating Temperature – °C | -70 – +150 |
| Approval | UL 224, IEC 60684, SAE ARP 1536 A |
| EN 45545-2 2013 |
PRICE MATRIX
|
SIZE (mm) |
Reel Size (m) |
Price per 100 Metres |
|
8.00 |
200 |
£35.84 |
|
10.00 |
200 |
£48.44 |
|
12.00 |
200 |
£49.06 |
|
15.00 |
200 |
£56.92 |
|
20.00 |
200 |
£74.68 |
|
25.00 |
100 |
£94.50 |
|
30.00 |
100 |
£114.58 |
|
40.00 |
50 |
£177.55 |
|
50.00 |
50 |
£193.84 |
