- Sku: 1630601

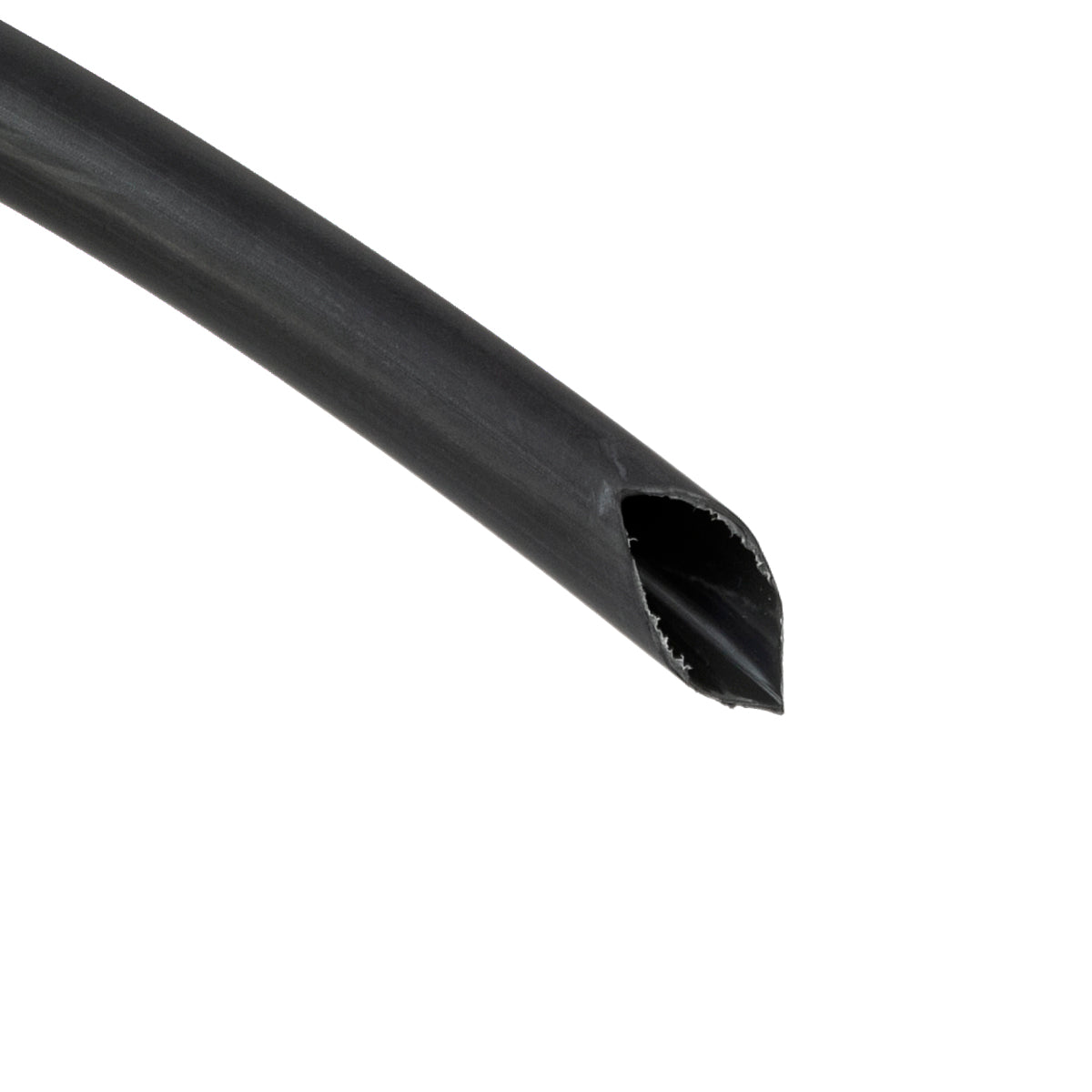

CroySleeve Heat Shrink Adhesive-Lined Cable Sleeving/Tubing
Order by 2pm for next day UK delivery*
Product out of stock? Size not available? CONTACT US
DESCRIPTION
A flame retardant, dual-wall polyolefin flexible heat shrink tube that offers environmental protection and a flexible water tight barrier. The outer wall is polyolefin heat shrink, whilst the inner wall is a hot melt adhesive. Once exposed to heat, the inner layer begins to melt and flow, which then encapsulates the component, wire, cable joints, splices etc. The 3:1 shrink ratio makes this an extremely versatile product.
APPLICATIONS
- Component protection
- Cable harnessing where an environmental seal is required
- Joint covering
- Electrical Insulation for cable splices and terminations
- Flame retardant jacketing
TECHNICAL INFO
Dielectric Strength | 12 KV/mm | ||
Installation Temperature | 80°C to 110°C | ||
Relevant Specifications | UL E853381 | RoHS | AMS DTL 23053/4 |
Size | Minimum ID Supplied (mm) | Maximum ID Recovered (mm) | Recovered Wall Thickness (mm) |
3/1 | 3.0 | 1.0 | 1.00 |
4.5/1.5 | 4.5 | 1.5 | 1.10 |
6/2 | 6.0 | 0.2 | 1.10 |
9/3 | 9.0 | 3.0 | 1.40 |
12/4 | 12.0 | 4.0 | 1.78 |
18/6 | 19.0 | 6.0 | 2.25 |
24/8 | 24.0 | 8.0 | 2.54 |
39/13 | 40.0 | 13.0 | 2.54 |
FEATURES AND BENEFITS
- Flexible
- Offers environmental protection (IP67/IP68)
- Self-extinguishing
- Good dielectric strength
- Flame retardant
- CSA/UL Approved
MATERIAL DATA
Product Code | 163 |
Material Jacket | Polyolefin |
Inner Jacket | Polyamide |
Standard Colour | Black |
Shrink Ratio | 3:1 |
Operating Temperature – °C | -55 – +110 |
PRICE MATRIX
Size |
Reel Size |
Price per Metre |
3/1 |
150 MTS |
£0.81 |
6/2 |
60 MTS |
£1.29 |
9/3 |
60 MTS |
£1.45 |
12/4 |
60 MTS |
£1.87 |
18/6 |
60 MTS |
£2.43 |
24/8 |
30 MTS |
£3.26 |
