- Sku: 1010101

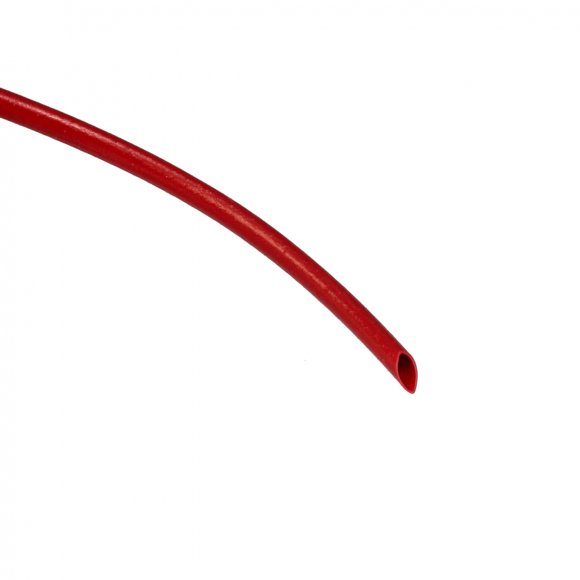

CroySleeve 70T Standard/General Purpose Extruded PVC Cable Sleeving/Tubing
Order by 2pm for next day UK delivery*
Product out of stock? Size not available? CONTACT US
DESCRIPTION
P.V.C sleeving is supplied in a wide size range and in eleven colours. In addition to the three grades shown below we can offer material to BS3858, Type 3, which has a thinner wall, and general purpose sleeving which is useful where cost savings are required.
APPLICATIONS
- Electrical insulation earth wiring
- Wire harnessing
- General protection
TECHNICAL INFO
| STD | 85T | 105T | Inside dia.mm | Nominal wall mm | Coil size m |
| 1 | 1 | 1 | 1 | 0.5 | 100 |
| 1.5 | 1.5 | 1.5 | 1.5 | 0.5 | 100 |
| 2 | 2 | 2 | 2 | 0.5 | 100 |
| 3 | 3 | 3 | 3 | 0.5 | 100 |
| 4 | 4 | 4 | 4 | 0.5 | 100 |
| 5 | 5 | 5 | 5 | 0.5 | 100 |
| 6 | 6 | 6 | 6 | 0.5 | 100 |
| 7 | 7 | 7 | 7 | 0.5 | 100 |
| 8 | 8 | 8 | 8 | 0.5 | 100 |
| 9 | 9 | 9 | 9 | 0.5 | 100 |
| 10 | 10 | 10 | 10 | 0.5 | 100 |
| 12 | 12 | 12 | 12 | 0.5 | 100 |
| 15 | 15 | 15 | 15 | 0.5 | 100 |
| 20 | 20 | 20 | 20 | 0.5 | 100 |
| 25 | 25 | 25 | 25 | 0.5 | 100 |
FEATURES AND BENEFITS
- Very flexible
- Good dielectric strength
- Good chemical resistance
- Fungus resistant
- Low water absorption
MATERIAL DATA
| STD | 85T | 105T | |
| Product Code | 101 | 102 | 105 |
| Material | Polyvinyl Chloride (PVC) | Polyvinyl Chloride (PVC) | Polyvinyl Chloride (PVC) |
| Standard Colour | Black, yellow, red, blue, white, brown, green, violet grey, orange, pink and clear | Black, yellow, red, blue, white, brown, green, violet grey, orang, pink | Black, yellow, red, blue, white, brown, green, violet grey, orang, pink |
| Flammability | Self- extinguishing in 30 seconds | Self -extinguishing in 30 seconds | Self- extinguishing in 30 seconds |
| Operating Temperature – oC | -20 to 70°C | -20 to 85°C | -40 to 105°C |
| Elongation at Break – % | 220% | 220% | 250% |
| Dielectric Strength – kV | 20 kV/mm | 20 kV/mm | 20 Kv/MM |
| Tensile Strength – Mpa | 15 MPa | 15 MPa | 18 MPa |
| Insulation Resistance – Ohm/cm | 1010 | 1010 | 1012 |
| Hardness | BSS20-30 | BSS20-30 | BSS25-35 |
| Relevant Specifications | N.A. | BS2848/3/85T | BS2848/3/105T |
| RoHS compliant | Yes | Yes | yes |
PRICE MATRIX
|
Size (mm) |
1-299 Mts |
300-999 Mts |
1000-4999 Mts |
5000+ Mts |
|
0.5 x 0.5 |
£0.1092 |
£0.0760 |
£0.0471 |
£0.0425 |
|
1 x 0.5 |
£0.1176 |
£0.0818 |
£0.0507 |
£0.0457 |
|
1.5 x 0.5 |
£0.1259 |
£0.0876 |
£0.0543 |
£0.0490 |
|
2 x 0.5 |
£0.1342 |
£0.0934 |
£0.0579 |
£0.0522 |
|
2.5 x 0.5 |
£0.1425 |
£0.0992 |
£0.0615 |
£0.0554 |
|
3 x 0.5 |
£0.1584 |
£0.1102 |
£0.0683 |
£0.0616 |
|
4 x 0.5 |
£0.2045 |
£0.1423 |
£0.0882 |
£0.0795 |
|
5 x 0.5 |
£0.2533 |
£0.1762 |
£0.1092 |
£0.0985 |
|
6 x 0.5 |
£0.2533 |
£0.1762 |
£0.1092 |
£0.0985 |
|
8 x 0.5 |
£0.3531 |
£0.2456 |
£0.1522 |
£0.1373 |
|
10 x 0.5 |
£0.5443 |
£0.3787 |
£0.2347 |
£0.2117 |
|
14 x 0.5 |
£0.7613 |
£0.5297 |
£0.3283 |
£0.2961 |
