- Sku: 1390503

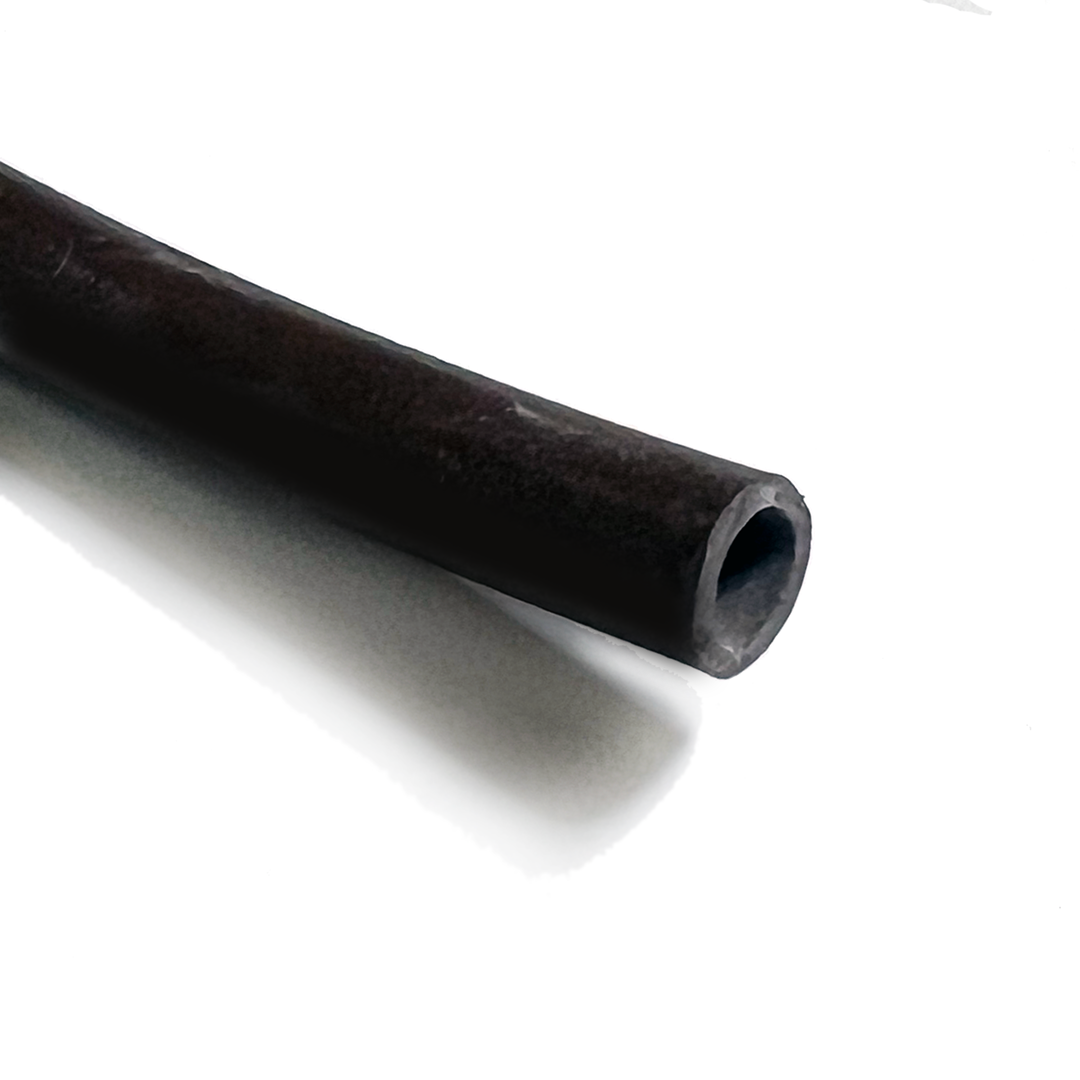

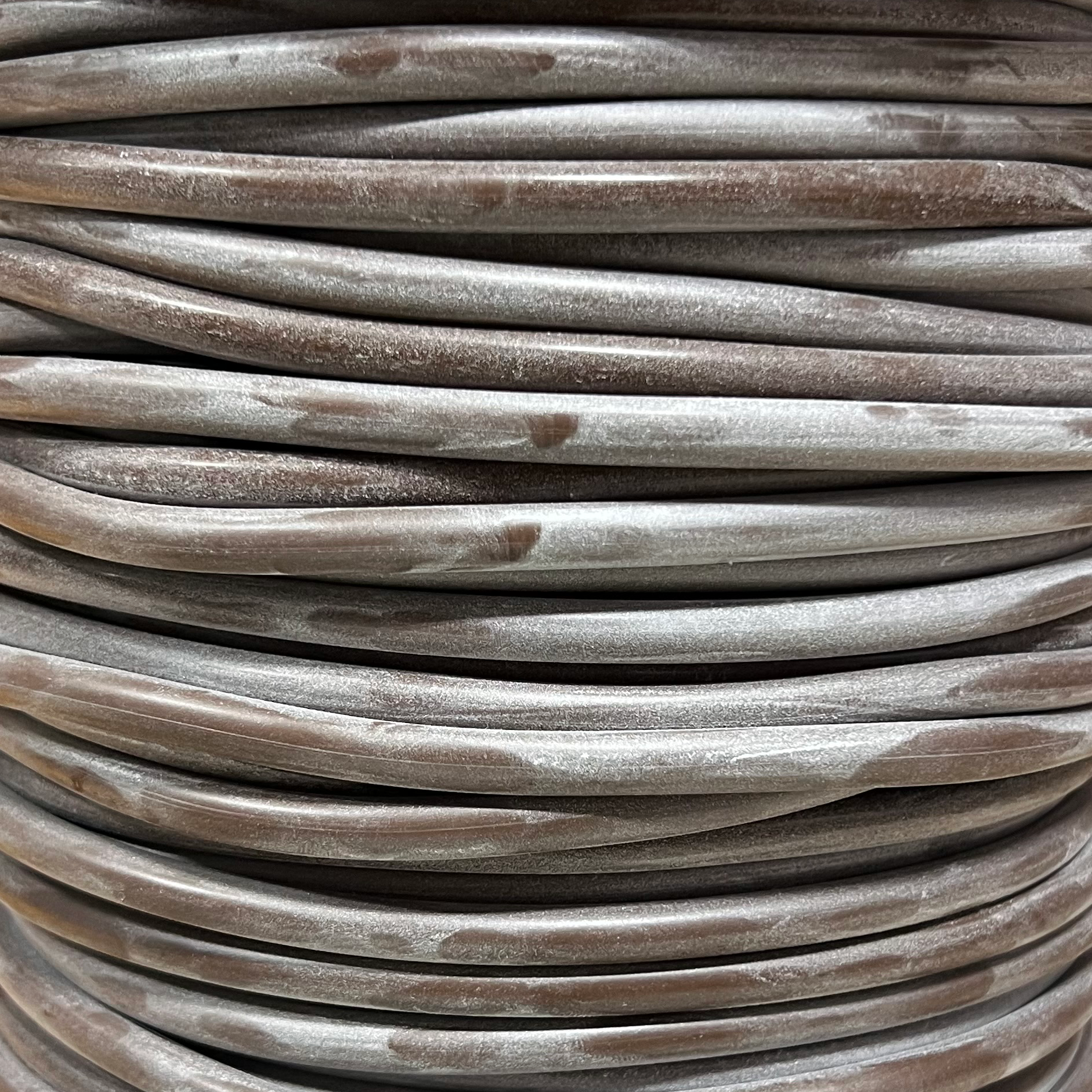

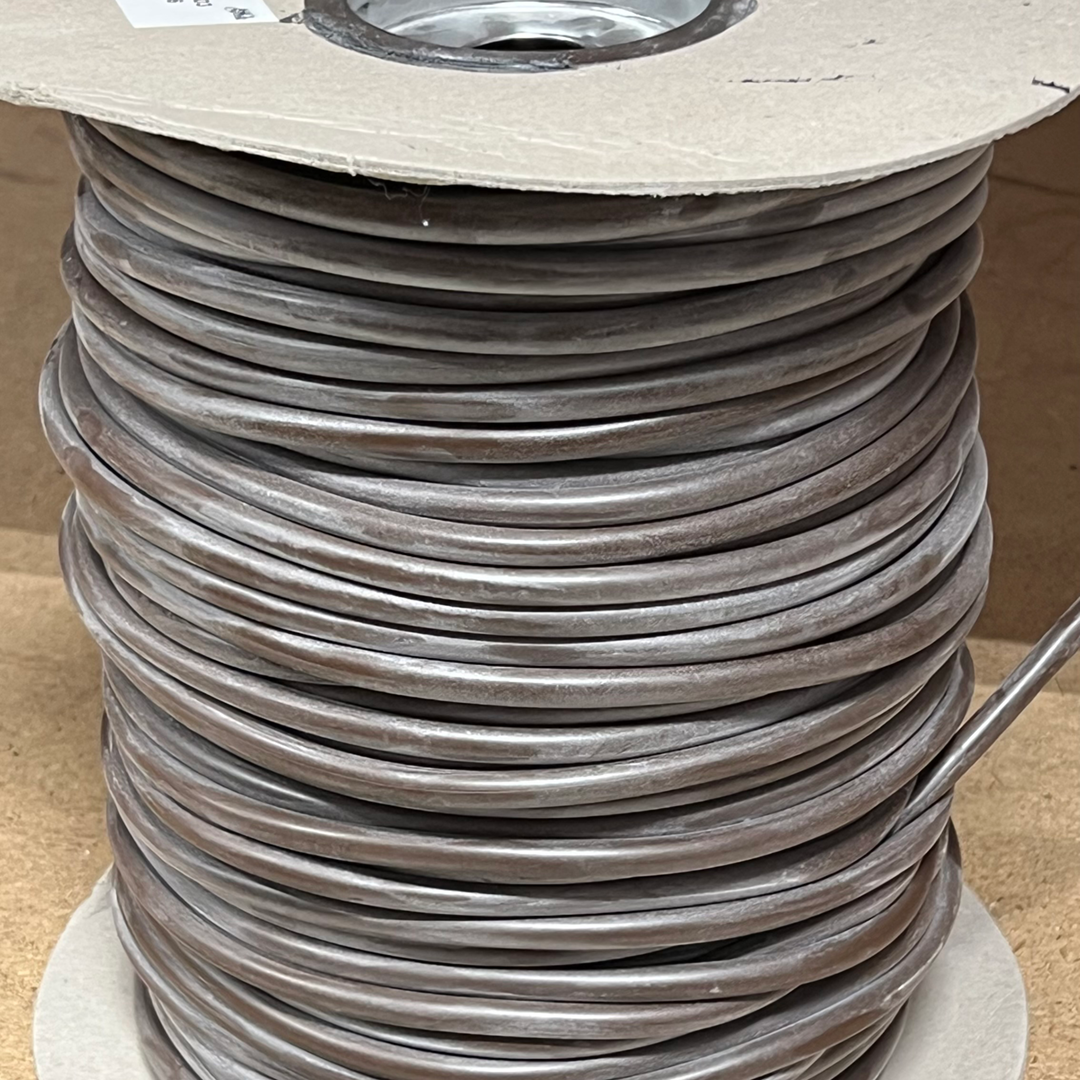

Croysleeve SE5559 Cable Sleeve made of UL-approved Silicone Rubber
£40.50 GBP
Order by 2pm for next day UK delivery*
Size not available? Contact us
International orders: shipping calculated after checkout
DESCRIPTION
SE5559 UL is a 57 durometre flame retardant silicone rubber compound suggested for applications such as moulded corona rings and anode caps. SE5559 has been utilised as insulation for electrical and electronics wiring applications where UL94 V-O flame retardancy is specified.
Cutting, winding, and packaging available for all cables and sleeving - see all services here and email sales@croylek.co.uk for a quote
APPLICATIONS
- Lead-outs
- Connections in transformers and coils employing fine gauge winding wire
- Insulate carbon brushes and thyristor connections
FEATURES AND BENEFITS
- Flexible
- Resistance to soldering
- Operating temperature -60°C to 250°C
MATERIAL DATA
| Thermal Classification | Class H (180°C) |
| Maximum Short Term Temperature | 250°C |
| Bore Sizes | 5-125.0mm |
| Wall Thickness (mm) | 0.2, 0.4, 0.5, 1 |
| Electrical Strength | 1.0kV per 0.1mm wall thickness |
| Specific Gravity | 1.28-133 |
| UL File No | E36952 |
PRICING
| SIZE | Reel Size (m) |
1-499 Mtrs | 500-1999 Mtrs | 2000 Mtrs + |
| 0.7MM ID X 0.2MM WALL | 100 | £0.2650 | £0.22525 | £0.19875 |
| 1.5MM ID X 0.4MM WALL | 100 | £0.5176 | £0.43996 | £0.3882 |
| 0.5MM ID X 0.5MM WALL | 100 | £0.3848 | £0.2491 | £0.2180 |
| 1MM ID X 0.5MM WALL | 100 | £0.5126 | £0.43571 | £0.38445 |
| 3MM ID x 1MM WALL | 100 | £0.8766 | £0.74511 | £0.65745 |
| 4MM ID X 1MM WALL | 100 | £2.55 | £2.1675 | £1.9125 |
| 5MM ID X 1MM WALL | 100 | £2.9750 | £2.52875 | £2.23125 |
| 6MM ID X 1MM WALL | 100 | £3.40 | £2.89 | £2.55 |
| 7MM ID X 1MM WALL | 100 | £3.85 | £3.2725 | £2.8875 |
| 10MM ID X 1MM WALL | 100 | £5.28 | £4.488 | £3.96 |
| 12MM ID X 1MM WALL | 50 |
£6.10 |
£5.18 | £4.57 |
