- Sku: 2700401

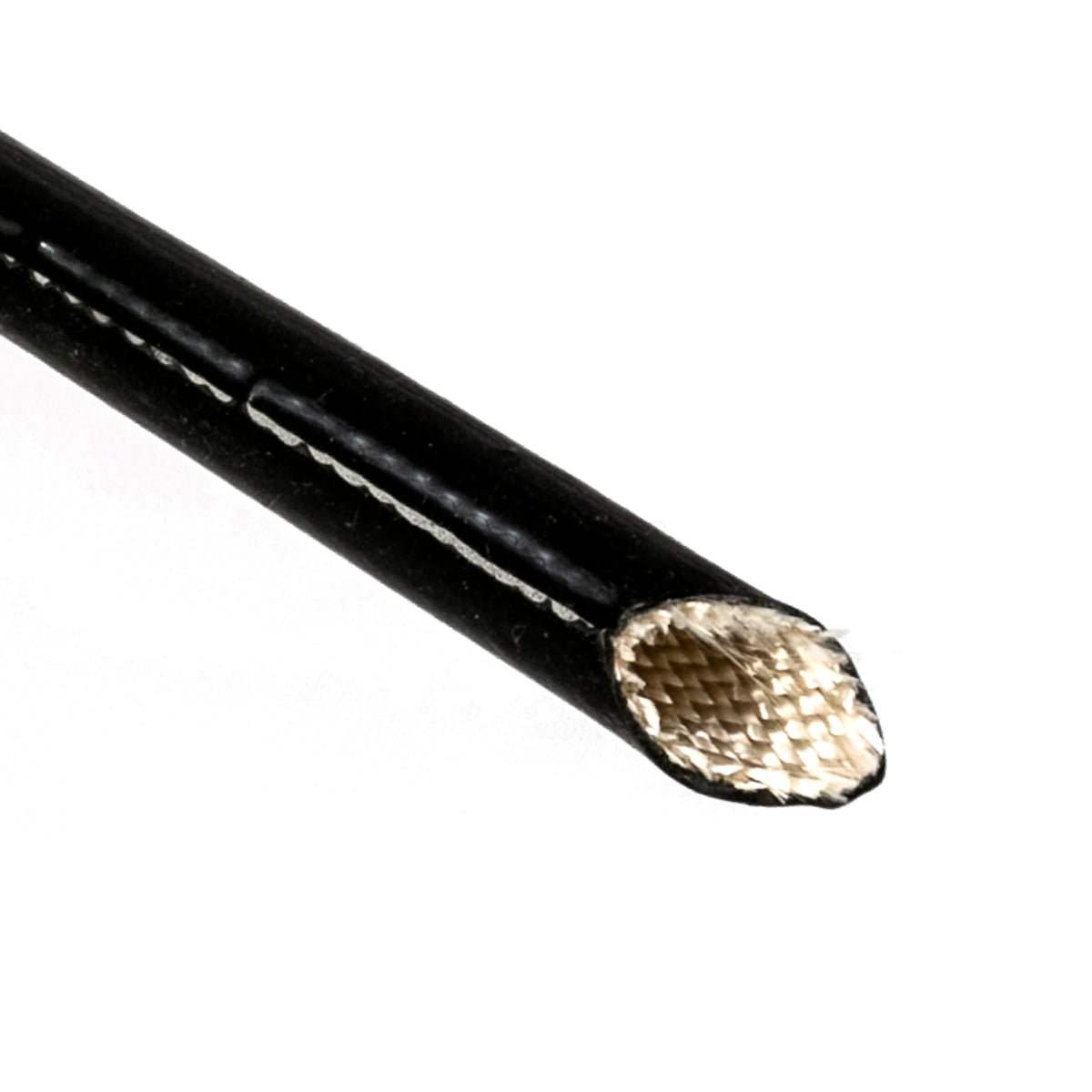

Relats Expandable Silicone Rubber-Coated Braided Cable Sleeving/Tubing, 4kV Standard - 2.5kV Expanded
Order by 2pm for next day UK delivery*
Product out of stock? Size not available? CONTACT US
DESCRIPTION
Silicone rubber sleeving is well known for its high temperature resistance, flexibility and elastic characteristics. The material is post-cured to give it the added stability. The sleeving can be used for variety of industrial applications, ranging from simple fluid carrying applications to very critical environments requiring specialist materials. It is available in a number of different hardness.
APPLICATIONS
- Component protection
- Harnessing
- Terminal protection
- Alternative to heat shrink in heat/flame sensitive applications
TECHNICAL INFO
PROPERTY | TEST | Results |
Heat Resistance | UL 1441: 7 days at 265 1 hour at 300 |
No cracking or detachment of coating shall be visible and the original colour shall be recognisable |
Flammability | UL 1441 | Self-extinguishing VW1 |
Cold Resistance | Bending at low temperature IEC 60684 Part 2 Clause 14 |
After 1 hour at -40°C there are no cracks |
Chemical Properties | Simulation of real operating conditions | Resistance to oils, solvents, varnishes and aggressive chemical agents in general. |
Chemical Resistance | After 96 h. at +100°C in ASTM oil n.2 | Resistance to oils, solvents, varnishes and aggressive chemical agents in general. |
Nominal bore (mm) | Bore tolerance (mm) | Minimum Wall thickness (mm) | Standard Packaging (m) |
2 | + 0.20 | 0.65 | 200 |
3 | + 0.20 | 0.75 | 200 |
4 | + 0.30 | 0.75 | 200 |
6 | + 0.30 | 0.85 | 100 |
8 | + 0.30 | 1.00 | 100 |
10 | + 0.50 | 1.00 | 100 |
12 | + 0.50 | 1.00 | 50 |
14 | + 0.50 | 1.20 | 50 |
16 | + 1.00 | 1.20 | 50 |
18 | + 1.00 | 1.20 | 50 |
20 | + 1.00 | 1.30 | 25 |
22 | + 1.00 | 1.30 | 25 |
25 | + 1.00 | 1.30 | 25 |
FEATURES AND BENEFITS
- High operating temperature
- Extremely flexible
- Ozone resistant
- U.V. resistant
- Fungus resistant
- Self Extinguishing
- Conforms to BS4G198 Type 4
- Conforms to BS3858 Type 5
- Conforms to Def Stan 59-15
MATERIAL DATA
Product Code | 270 |
Material | Silicone Rubber Coated Fibre Glass Braid |
Standard Colour | Black |
Expansion Ratio | 1:1.6 |
Operating Temperature – °C | -40 – +235 (Peaks at +300°C) |
Dielectric Strength – kV | 4kV Normal 2.5kV Expanded |
Relevant Specifications | UL1441, IEC 60684 Part 2 |
PRICE MATRIX
SIZE |
1-1499 Metres |
1500+ Metres |
2 mm |
£61.03 |
£56.67 |
3 mm |
£76.92 |
£71.42 |
4 mm |
£99.61 |
£92.50 |
6 mm |
£140.32 |
£130.30 |
8 mm |
£188.72 |
£175.24 |
10 mm |
£228.10 |
£211.81 |
12 mm |
£311.02 |
£288.81 |
14 mm |
£386.64 |
£3.5902 |
16 mm |
£490.18 |
£455.17 |
