- Sku: 2510201

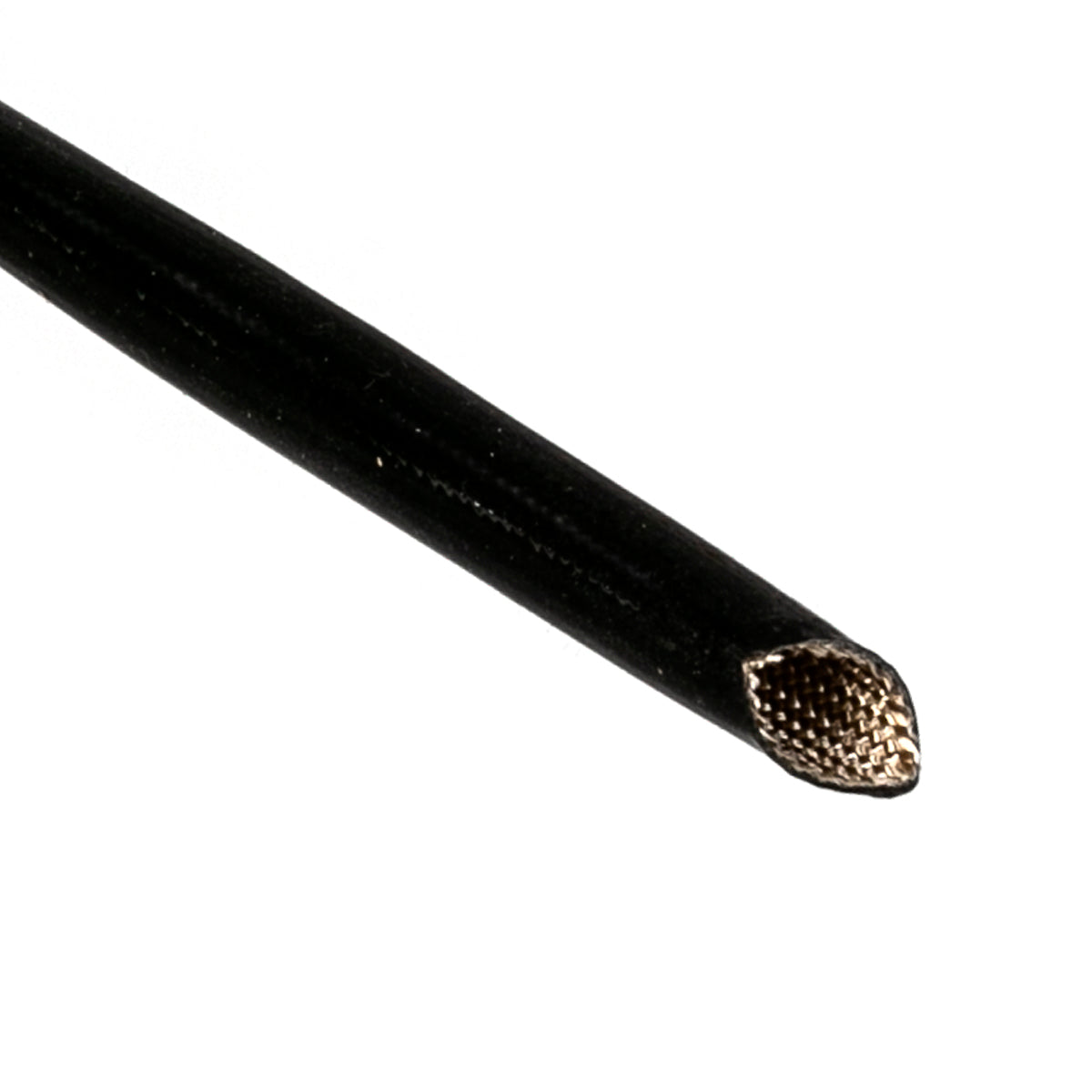

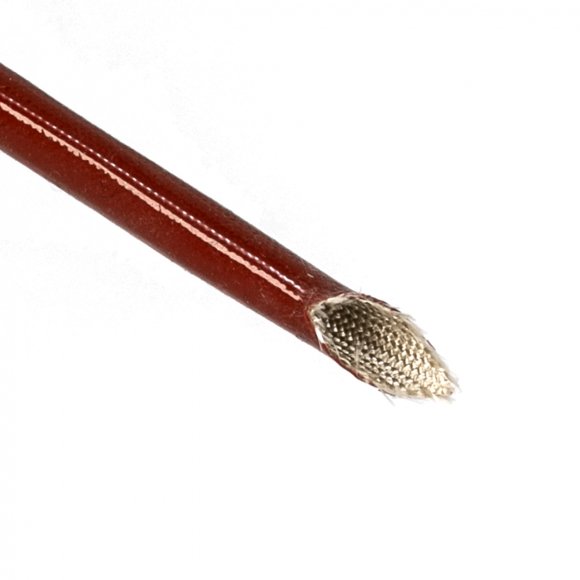

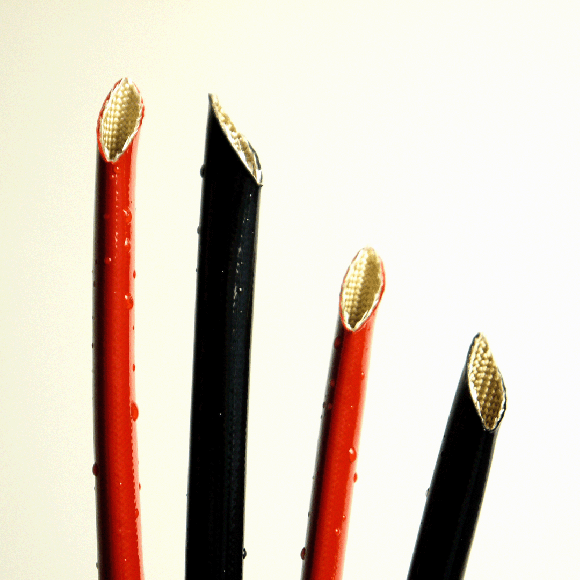

CroySleeve Silicone Rubber-Coated Braided Cable Sleeving/Tubing, 2.5kV
Order by 2pm for next day UK delivery*
Product out of stock? Size not available? CONTACT US
DESCRIPTION
This sleeving gives the benefits of both extruded silicone rubber and fibreglass sleeving, offering good strength, flexibility and excellent dielectric strength at high temperature.
Please note: Care should be taken to minimise dust formation during handling and cutting this glass based material as dust or broken particles may cause skin irritation.
APPLICATIONS
- Electrical insulation
- Harnessing
- Terminal protection
- High temp rated domestic appliances
- Heating appliances
- Central heating boilers
TECHNICAL INFO
|
PROPERTY |
TEST |
RESULTS |
|
HEAT RESISTANCE |
UL 1441: 7 days at +265oC 60 days at +235oC 1 hour at +300 oC |
No cracking or detachment of coating shall be visible and the original colour shall be clearly recognisable |
|
FLAMMABILITY |
Flame propagation IEC 60684 Part 2 Clause 26 Method B vertical without mandrel UL 1441 |
Extinguishes within 60 seconds
Self-extinguishing VW1 or FT-1 (sleeving in vertical position) |
|
COLD RESISTANCE |
Bending at low temperature IEC 60684 Part 2 Clause 14 at -40 oC UL 1441 (cold bend test) |
No cracking or detachment of coating shall be visible. No cracking after 1 hour at -30oC |
|
CHEMICAL RESISTANCE |
Resistance to hydrocarbons (UL 1441): After 96 h. at +100oC in ASTM oil n.2 |
16.000 V |
|
After 1440 h. at +80ºC in ASTM oil n.2 |
16.200 V |
|
|
Resistance to impregnation varnishes and resins (UL1441) |
Excellent |
DIMENSIONS
| Nominal bore (mm) | Bore Tolerance (mm) | Minimum Wall Thickness (mm) | Standard Packaging (m) |
| 0.5 | + 0.20 | 0.20 | 400 |
| 0.8 | + 0.20 | 0.20 | 400 |
| 1.0 | + 0.20 | 0.30 | 400 |
| 1.5 | + 0.20 | 0.30 | 200 |
| 2.0 | + 0.20 | 0.30 | 200 |
| 2.5 | + 0.20 | 0.30 | 200 |
| 3.0 | + 0.20 | 0.30 | 200 |
| 3.5 | + 0.30 | 0.30 | 200 |
| 4.0 | + 0.30 | 0.30 | 200 |
| 4.5 | + 0.30 | 0.40 | 200 |
| 5.0 | + 0.30 | 0.40 | 200 |
| 6.0 | + 0.30 | 0.40 | 200 |
| 7.0 | + 0.30 | 0.40 | 200 |
| 8.0 | + 0.30 | 0.45 | 100 |
| 9.0 | + 0.50 | 0.45 | 100 |
| 10.0 | + 0.50 | 0.45 | 100 |
| 11.0 | + 0.50 | 0.45 | 100 |
| 12.0 | + 0.50 | 0.45 | 100 |
| 13.0 | + 0.50 | 0.60 | 100 |
| 14.0 | + 0.50 | 0.60 | 50 |
| 15.0 | + 0.50 | 0.60 | 50 |
| 16.0 | + 1.00 | 0.60 | 50 |
| 18.0 | + 1.00 | 0.60 | 50 |
| 20 | + 1.00 | 0.90 | 50 |
FEATURES AND BENEFITS
- Good dielectric strength
- Good mechanical resistance
- Highly flexible
- Excellent chemical resistance to oils, fluids and aggressive chemical agents.
- Flame retardant
- Halogen free
- Self-extinguishing
MATERIAL DATA
| Product Code | 251 |
| Material | Silicone Rubber Coated Fibreglass |
| Standard Colour | Black |
| Operating Temperature – oC | -40 – +235 (Peaks at +300) |
| Dielectric Strength – kV/mm | 2.5 |
| Relevant Specifications | IEC 60684, UL 1441 |
| UL Recognised | E151092 |
PRICE MATRIX
|
SIZE (MM) |
1-1499 Metres |
1500 Metres + |
|
0.5 |
£20.33 |
£19.13 |
|
1.00 |
£23.16 |
£21.80 |
|
1.50 |
£25.87 |
£24.34 |
|
2.00 |
£29.77 |
£28.02 |
|
2.50 |
£33.63 |
£31.65 |
|
3.00 |
£37.43 |
£35.23 |
|
3.50 |
£45.53 |
£42.85 |
|
4.00 |
£50.13 |
£47.18 |
|
5.00 |
£61.39 |
£57.78 |
|
6.00 |
£71.91 |
£67.68 |
|
7.00 |
£86.22 |
£81.15 |
|
8.00 |
£95.12 |
£89.52 |
|
9.00 |
£114.21 |
£107.49 |
|
10.00 |
£119.80 |
£112.75 |
|
12.00 |
£146.00 |
£137.41 |
