- Sku: 2520201

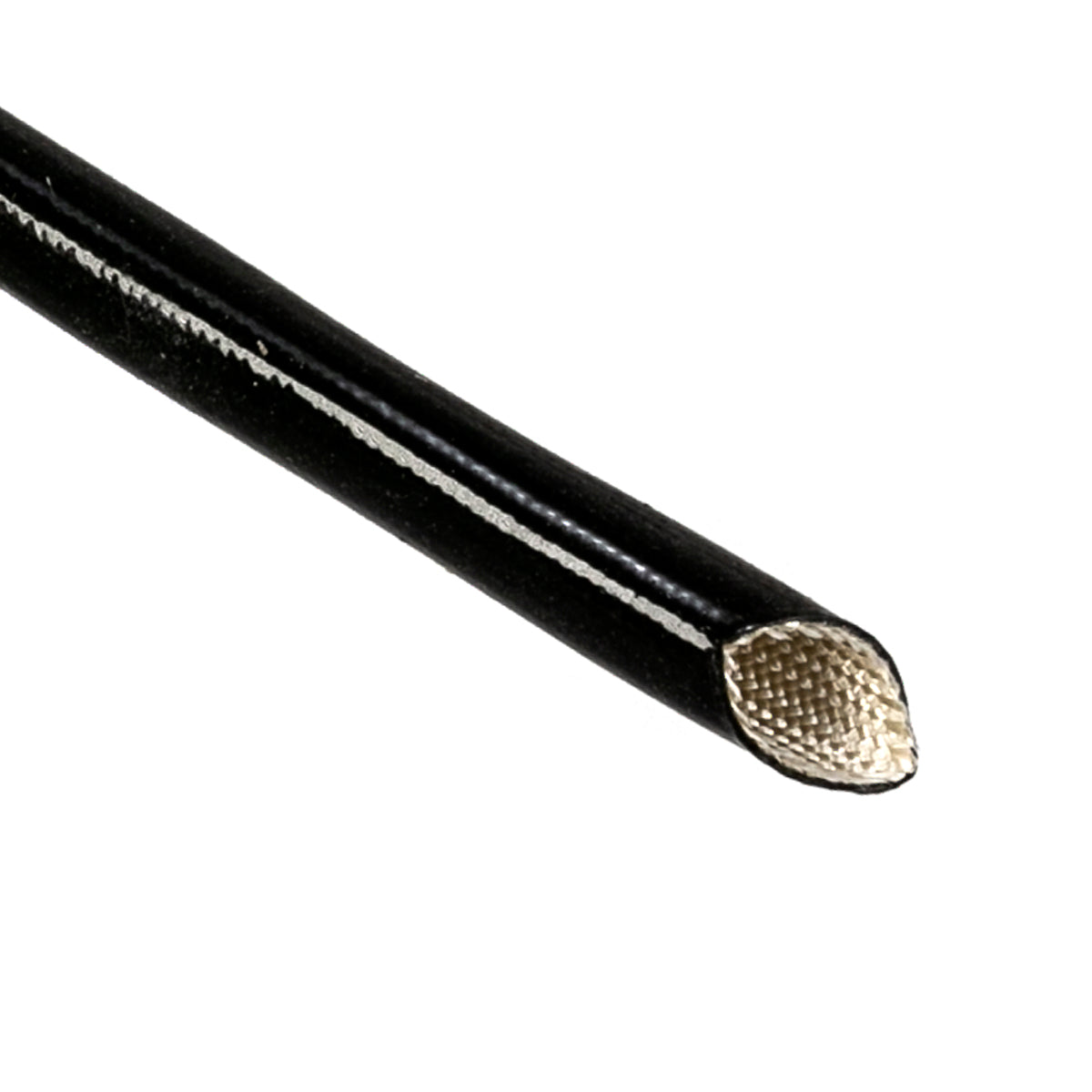

CroySleeve Silicone Rubber-Coated Braided Cable Sleeving/Tubing, 7.5kV
Order by 2pm for next day UK delivery*
Product out of stock? Size not available? CONTACT US
DESCRIPTION
This sleeving is made of a special silicone rubber coated fibreglass braid. It gives both the benefits of an extruded silicone rubber as well as fibreglass sleeving, giving good strength and flexibility as well as excellent dielectric strength at high temperature. This sleeving peaks at 300 °C. Grade A (7000 V) UL and cUL approved (file No. 121222)
Please note: Care should be taken to minimise dust formation during handling and cutting this glass based material as dust or broken particles may cause skin irritation.
APPLICATIONS
- Electrical insulation
- Harnessing
- Terminal protection
FEATURES AND BENEFITS
- Good dielectric strength
- Halogen free
- Self-extinguishing VW 1
- Good mechanical resistance
- Highly flexible
- Flame retardant
- Excellent chemical resistance to oils, fluids and aggressive chemical agents
- Class 200 electrical insulating sleeve, rated 200 ������C and 600V
- UL and cUL approved.
MATERIAL DATA
| Product Code | 252 |
| Material | Silicone Rubber Coated Fibreglass |
| Standard Colour | Black |
| Operating Temperature – oC | -60 – +200 |
| Elongation at Break – % | 7.96 |
| Dielectric Strength – kV/mm | 7.5 |
| Tensile Strength – MPa | 1.983 |
| Relevant Specification | IEC 60684, UL 1441 |
PRICE MATRIX
|
SIZE |
REEL SIZE |
PRICE PER 100M |
|
1MM |
200M |
£51.82 |
|
1.5MM |
200M |
£60.66 |
|
2MM |
200M |
£73.30 |
|
2.5MM |
200M |
£84.06 |
|
3MM |
200M |
£98.14 |
|
4MM |
200M |
£141.12 |
|
5MM |
100M |
£182.22 |
|
6MM |
100M |
£200.00 |
|
7MM |
100M |
£247.26 |
|
8MM |
100M |
£270.14 |
|
10MM |
100M |
£349.80 |
|
12MM |
50M |
£406.02 |
|
14MM |
50M |
£496.44 |
|
16MM |
50M |
£531.72 |
|
20MM |
50M |
£1070.62 |
|
25MM |
50M |
£1791.72 |
