- Sku: 1200501

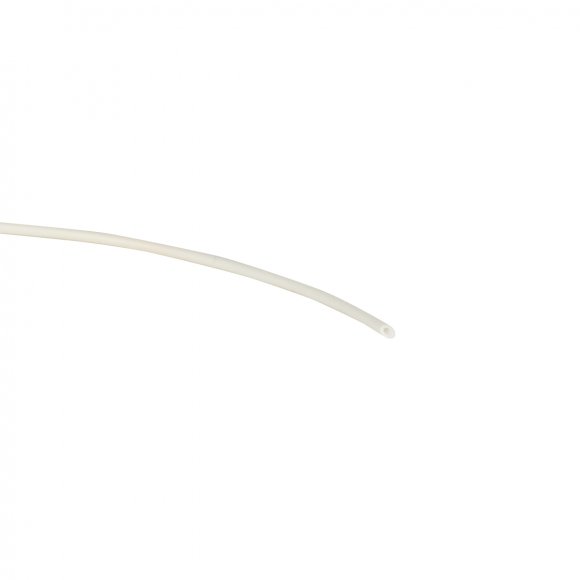

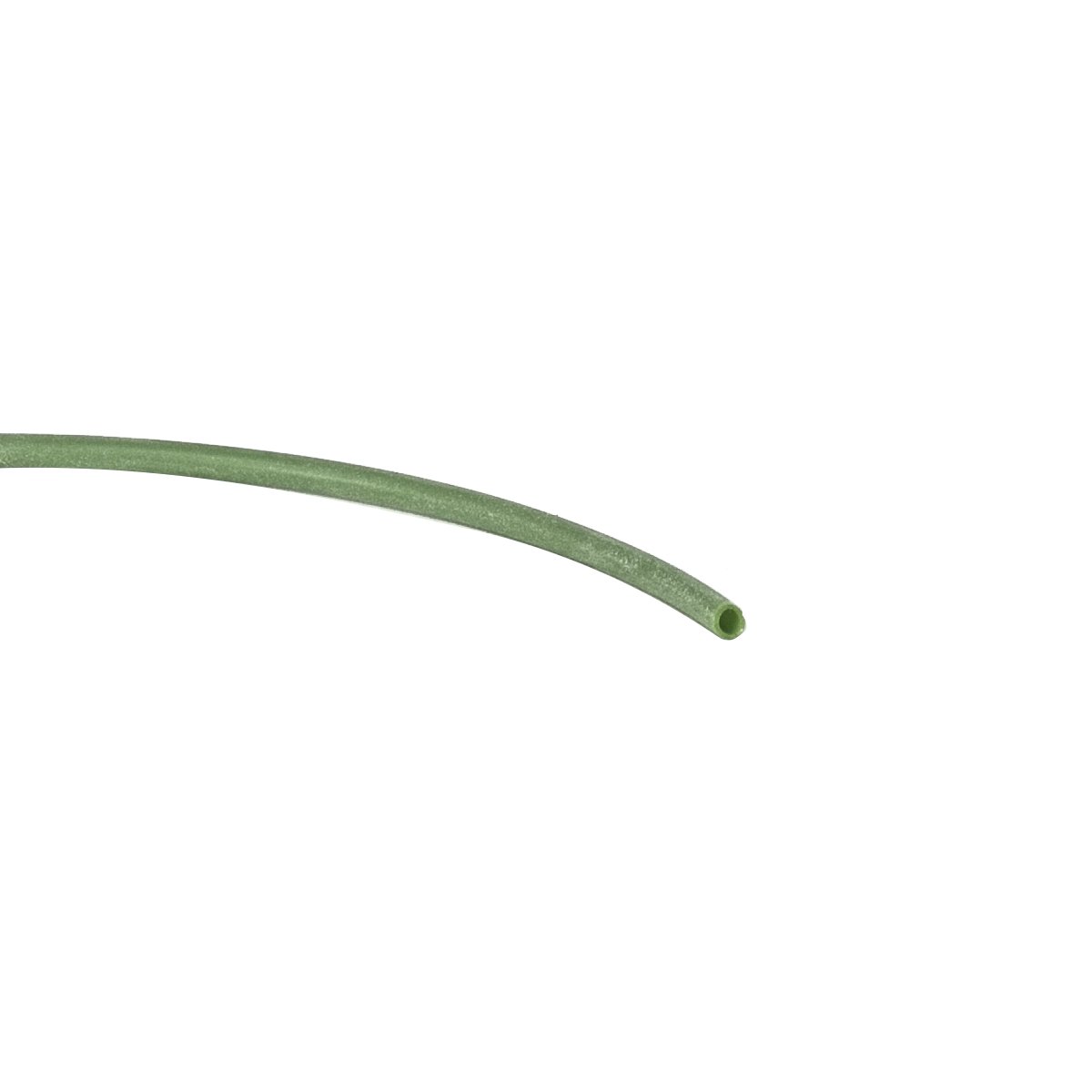

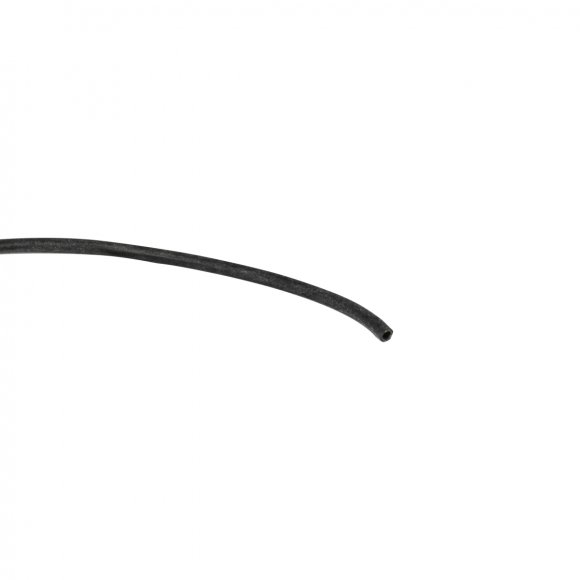

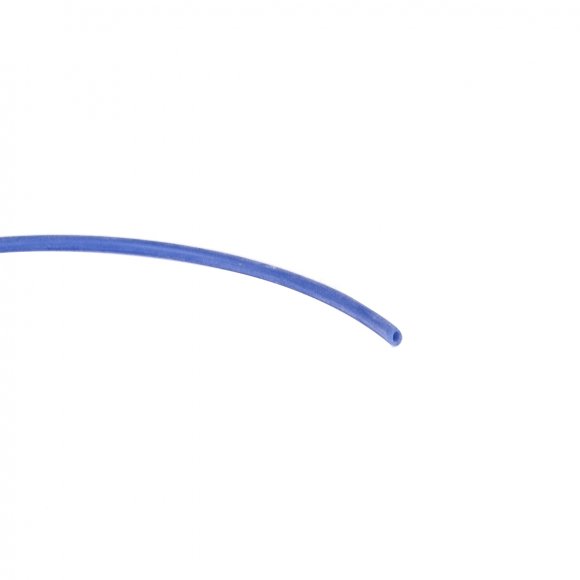

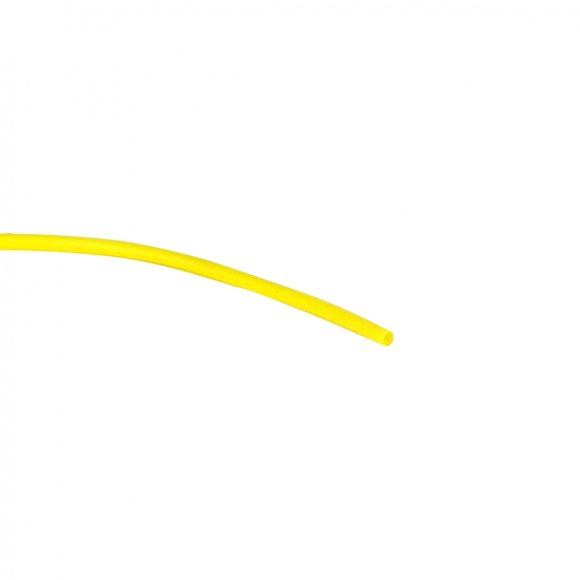

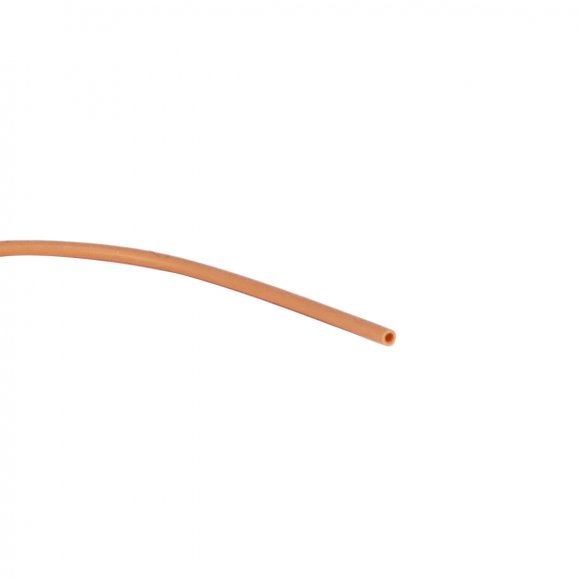

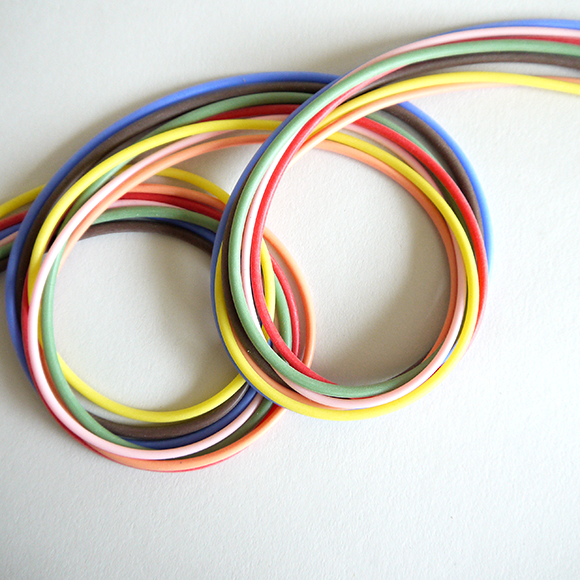

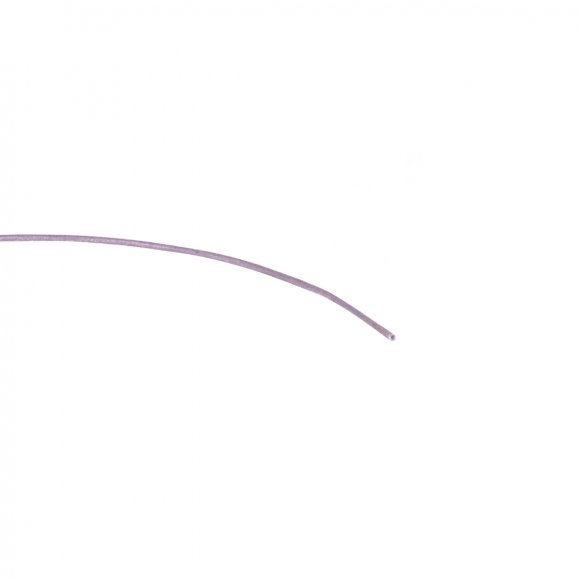

CroySleeve Silicone Rubber Cable Sleeving/Tubing, 0.2mm wall
£30.23 GBP
Order by 2pm for next day UK delivery*
Product out of stock? Size not available? CONTACT US
Get Your Sleeving Cut to Length
Get Your Sleeving Cut to Length
Save time and money
Minimum order is just one reel
Add a note to your order with the required length and we'll get back to you with a quote
DESCRIPTION
Silicone rubber sleeving is well known for its high temperature resistance, flexibility and elastic characteristics. The material is post-cured to give it the added stability. The sleeving can be used for variety of industrial applications, ranging from simple fluid carrying applications to very critical environments requiring specialist materials. It is available in a number of different hardness.
APPLICATIONS
- Harnessing
- Electrical insulation
- Marker sleeves
- Peristaltic pump tubing
TECHNICAL INFO
| Supplied Diameter (mm) | Wall Thickness (mm) | Coil Length (m) |
| 0.5 | 0.5 | 100m Coil |
| 1 | 0.5 | 100m Coil |
| 1.5 | 0.5 | 100m Coil |
| 2 | 0.5 | 100m Coil |
| 3 | 0.5 | 100m Coil |
| 4 | 0.5 | 100m Coil |
FEATURES AND BENEFITS
- High operating temperature
- Extremely flexible
- Ozone resistant
- U.V. resistant
- Fungus resistant
- Self Extinguishing
- Conforms to BS4G198 Type 4
- Conforms to BS3858 Type 5
- Conforms to Def Stan 59-15
MATERIAL DATA
| Product Code | 124 |
| Material | Silicone |
| Standard Colour | Black, Red, Yellow, Green, Blue, Brown, Orange, White |
| Operating Temperature – oC | -60 – +180 |
| Elongation at Break – % | 250 |
| Dielectric Strength – kV/mm | 20 |
| Tensile Strength – kg/cm2 | 60 |
| Relevant Specifications | Conforms to be BS4G198 Type 4 |
| Conforms to BS3858 Type 5 | |
| Conforms to Def Stan 59-15 |
PRICE MATRIX
| SIZE | Reel Size |
0-499 Mtrs | 500-1999 Mtrs | 2000 Mtrs + |
| 0.5MM ID X 0.2MM WALL | 100m | £0.3023 | £0.2546 | £0.2227 |
| 0.7MM ID X 0.2MM WALL | 100m | £0.2654 | £0.2235 | £0.1956 |
| 1MM ID X 0.2MM WALL | 100m | £0.2955 | £0.2488 | £0.2177 |
