- Sku: 2300200

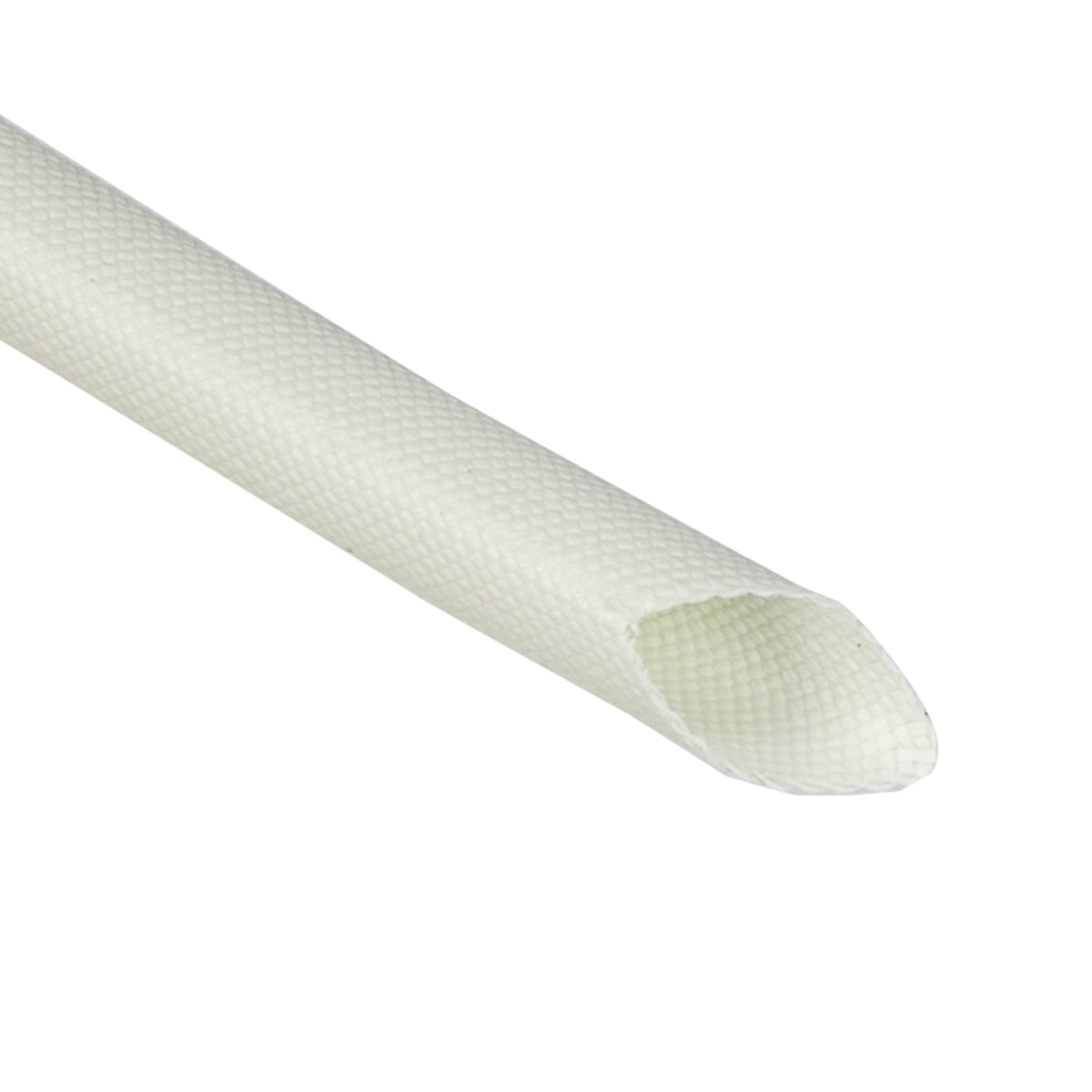

Relats VSR10 Silicone-Impregnated Braided Cable Sleeving/Tubing
Order by 2pm for next day UK delivery*
Product out of stock? Size not available? CONTACT US

Get Your Sleeving Cut to Length

Get Your Sleeving Cut to Length
Save time and money
Minimum order is just one reel
Add a note to your order with the required length and we'll get back to you with a quote
DESCRIPTION
Impregnated with silicone varnish, this sleeving is ideal for thermal and electrical insulation applications where high operating temperatures exist. It’s a highly flexible braided glass sleeve that is ideal for use where low fire hazard properties are required, particularly in mass transit and underground applications.
Please note: Care should be taken to minimise dust formation during handling and cutting this glass based material as dust or broken particles may cause skin irritation.
APPLICATIONS
- Harnessing
- Electrical insulation
- Rail harnesses – EN45545 Approved
- High temperature protection
- Rail tunnel applications
TECHNICAL INFO
PROPERTY | TEST | RESULT |
THERMAL OVERCHARGE AND AGEING RESISTANCE | Simulation of real operating conditions | 10 days at +350°C |
HEAT RESISTANCE | Bending after heating IEC 60684 Part 2 Clause 13, 48 hours at +400°C | No cracking. Silicone varnish will burn off. |
CHEMICAL RESISTANCE | Simulation of real operating conditions | Excellent resistance to solvents. Compatible with most insulating varnishes |
FLAMMABILITY | Flame propagation: IEC 60684 Part 2 Clause 26 Method B vertical wire. Flame test: UL 1441 VW-1 vertical with wire |
Will not ignite Will not ignite |
ABRASION RESISTANCE | SEA ARP 1536 | Minimum 4.000 cycles (Ø=20mm) |
COLD RESISTANCE | Bending at low temperature IEC 60684-Part 2 Clause 14 | No cracking after bending at -70°C |
OXYGEN INDEX (I.O.) | UNE EN ISO 4589 | 10 = 64,5% |
TOXICITY | NF X 70-100 | ITC = 4,08 |
SMOKE DENSITY | NF X 10-702 (Test conduced in flame mode) | V0F4 = 3,2 Dmax = 3 |
SMOKE INDEX | NF F 16-101 | IF = 2,2 |
FIRE BEHAVIOUR | EN 45545 – 2 - 2013 | R22&R23: Hazard level HL1, HL2, HL3 |
Nominal Bore (mm) | Bore Tolerance (mm) | Minimum Wall Thickness (mm) | Standard Packaging |
0.5 | +0.20 | 0.20 | 400 |
1.0 | +0.20 | 0.25 | 300 |
1.5 | +0.20 | 0.25 | 300 |
2.0 | +0.20 | 0.25 | 300 |
2.5 | +0.20 | 0.25 | 300 |
3.0 | +0.20 | 0.25 | 300 |
3.5 | +0.30 | 0.25 | 300 |
4.0 | +0.30 | 0.30 | 300 |
4.5 | +0.30 | 0.30 | 300 |
5.0 | +0.30 | 0.30 | 200 |
6.0 | +0.30 | 0.30 | 200 |
7.0 | +0.30 | 0.30 | 200 |
8.0 | +0.0 | 0.30 | 200 |
9.0 | +0.50 | 0.30 | 200 |
10.0 | +0.50 | 0.30 | 200 |
12.0 | +0.50 | 0.45 | 100 |
14.0 | +0.50 | 0.45 | 100 |
16.0 | +1.0 | 0.45 | 100 |
18.0 | +1.0 | 0.55 | 100 |
20.0 | +1.0 | 0.55 | 100 |
22.0 | +1.0 | 0.60 | 50 |
25.0 | +1.0 | 0.60 | 50 |
FEATURES AND BENEFITS
- Expandable – versatile wiring harness assembly
- Excellent temperature resistance
- Highly resilient
- LSZH
- Self-extinguishing
- Oxygen index 64.5%
- Good fray resistance
- Compatible with most impregnating varnish systems
- Excellent resistance to solvents
MATERIAL DATA
Product Code | 230 |
Material | Silicone Impregnated Fibreglass |
Standard Colour | Natural |
Operating Temperature – °C | -40 – +300 (Peaks at 450 °C) |
Dielectric Strength – kV | 1 |
Relevant Specifications | IEC 60684, UL 1441, LUL Approved, EN 45545 – 2 – 2013;R22&R23: Hazard level HL1, HL2, HL3 |
PRICE MATRIX
Size |
Reel Size (Metres) |
0-1499M |
1500M+ |
0.5 mm |
400 |
£0.1141 |
£0.1060 |
1.0 mm |
300 |
£0.1320 |
£0.1223 |
1.5 mm |
300 |
£0.1623 |
£0.1504 |
2.0 mm |
300 |
£0.2040 |
£0.1890 |
3.0 mm |
300 |
£0.2433 |
£0.2255 |
4.0 mm |
300 |
£0.3306 |
£0.3064 |
5.0 mm |
200 |
£0.4319 |
£0.4002 |
6.0 mm |
200 |
£0.4623 |
£0.4284 |
7.0 mm |
200 |
£0.5558 |
£0.5150 |
8.0 mm |
200 |
£0.6369 |
£0.5902 |
10 mm |
100 |
- |
£0.9128 |
12 mm |
100 |
- |
£104.64 |
16 mm |
100 |
- |
£156.17 |
20 mm |
100 |
- |
£201.68 |
25 mm |
50 |
- |
£290.91 |
