- Sku: 2321000
Relats VSR10 Expandable Silicone-Impregnated Braided Cable Sleeving/Tubing
Order by 2pm for next day UK delivery*
Size not available? Contact us
International orders: shipping calculated after checkout
DESCRIPTION

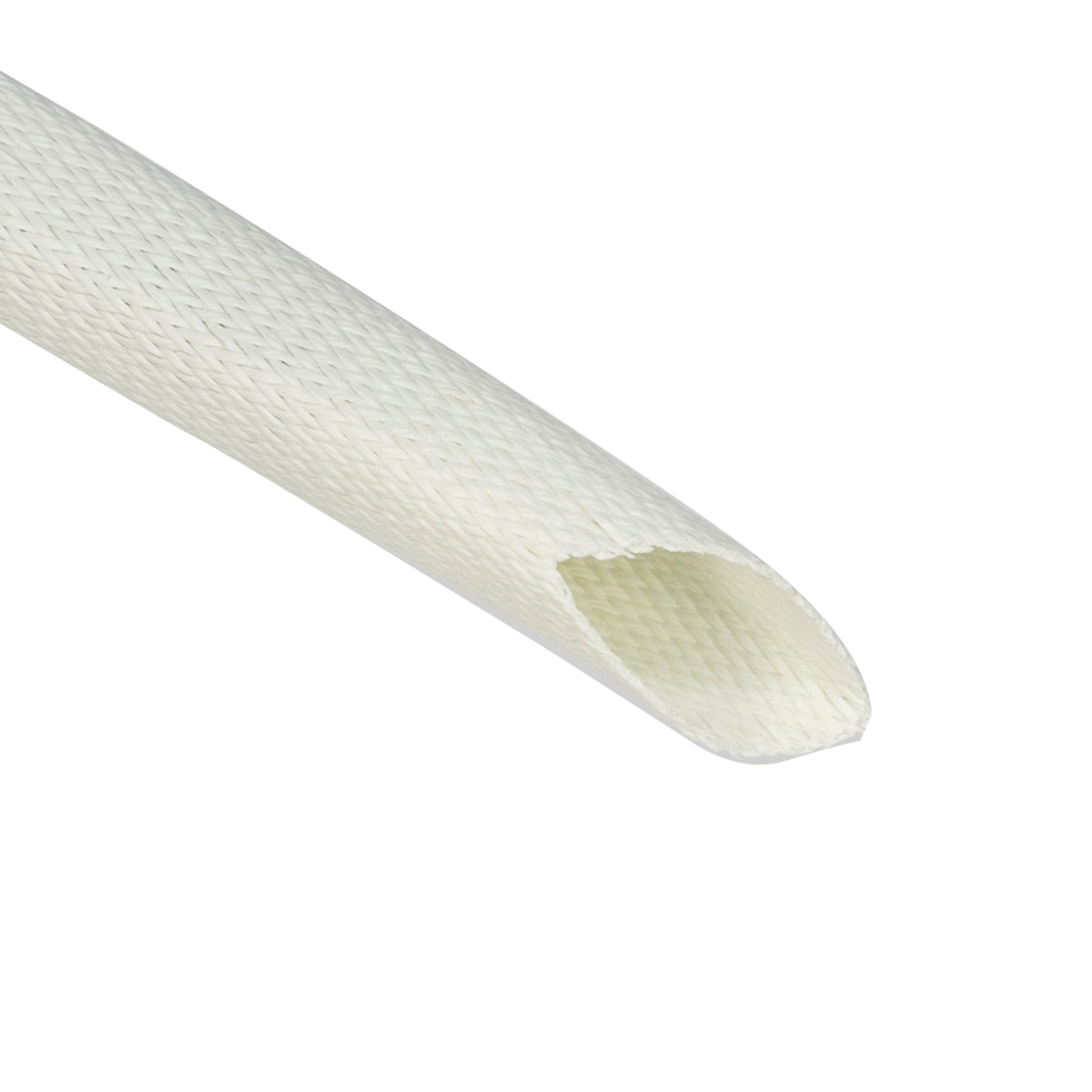

Impregnated with silicone varnish, this sleeving is ideal for thermal and electrical insulation applications where high operating temperatures exist. It’s a highly flexible braided glass sleeve that is ideal for use where low fire hazard properties are required, particularly in mass transit and underground applications.
Please note: Care should be taken to minimise dust formation during handling and cutting this glass based material as dust or broken particles may cause skin irritation.
Cutting, winding, and packaging available for all cables and sleeving - see all services here and email sales@croylek.co.uk for a quote
APPLICATIONS
- Harnessing
- Flexible conduit
- Electrical insulation
- Mass transit cable protection
- Exhaust assemblies/system components
TECHNICAL INFO
| PRODUCT | TEST | RESULT |
| THERMAL OVERCHARGE AND AGEING RESISTANCE | Simulation of real operating conditions | 10 days at 350°C |
| HEAT RESISTANCE | Bending after heating IEC 60684 Part 2 Clause 13, 48 hours at 400°C |
No cracking. Silicone varnish will burn off |
| CHEMICAL RESISTANCE | Simulation of real operating conditions | Excellent resistance to solvents. Compatible with most insulating varnishes |
| FLAMMABILITIY | Flame propagation IEC 60684 Part 2 Clause 26 Method B vertical with wire. Flame test: UL 1441 VW-1 vertical with wire |
Will not ignite |
| ABRASION RESISTANCE | 13mm ground drill rod abrader, 1kg weight, 20mm amplitude, 150 cycles/min. | Minimum 25,000 cycles |
| COLD RESISTANCE | Bending at low temperature IEC 60684 – Part 2 Clause 14 | No cracking after bending at -40°C |
| OXYGEN INDEX (I.O.) | UNE EN ISO 4589 | I.O. = 64.5% |
| TOXICITY | NF X 70-100 | ITC = 4.08 |
| SMOKE DENSITY | NF X 10-702 (Test conducted in flame mode) |
V0F4 = 3.2 Dmax = 3 |
| SMOKE INDEX (IF) | NF F 16-101 | IF = 2.2 |
DIMENSIONS
| Diameter minimum | Diameter Maximum (*) | Minimum Wall Thickness (mm) | Standard Packaging |
| 4 | 9 | 0.60 | 100 |
| 6 | 16 | 0.60 | 100 |
| 8 | 20 | 0.60 | 100 |
| 10 | 22 | 0.60 | 100 |
| 12 | 28 | 0.60 | 100 |
| 14 | 35 | 0.60 | 100 |
| 16 | 40 | 0.60 | 100 |
| 20 | 55 | 0.60 | 50 |
| 25 | 65 | 0.60 | 50 |
| 30 | 75 | 0.60 | 50 |
| 40 | 90 | 0.60 | 50 |
| 50 | 120 | 0.60 | 25 |
FEATURES AND BENEFITS
- Expandable – versatile wiring harness assembly
- Excellent temperature resistance
- Highly resilient
- LSZH
- Self-extinguishing
- Oxygen index 64.5%
- Good fray resistance
- Compatible with most impregnating varnish systems
- Excellent resistance to solvents
MATERIAL DATA
| Product Code | 232 |
| Material | Silicone impregnated fibreglass |
| Standard Colour | Natural |
| Operating Temperature – °C | -40 – +300 (Peaks at +450°C) |
| Relevant Specifications | IEC 60684, UL No. E151092, UL 1441, LUL Approved |
PRICING
|
SIZE |
REEL SIZE |
PRICE PER 100M |
|
4MM |
200M |
£37.16 |
|
6MM |
200M |
£58.24 |
|
10MM |
100M |
£97.10 |
|
12MM |
100M |
£113.92 |
|
14MM |
100M |
£132.68 |
|
16MM |
100M |
£161.91 |
|
20MM |
50M |
£170.91 |
