- Sku: 3311210

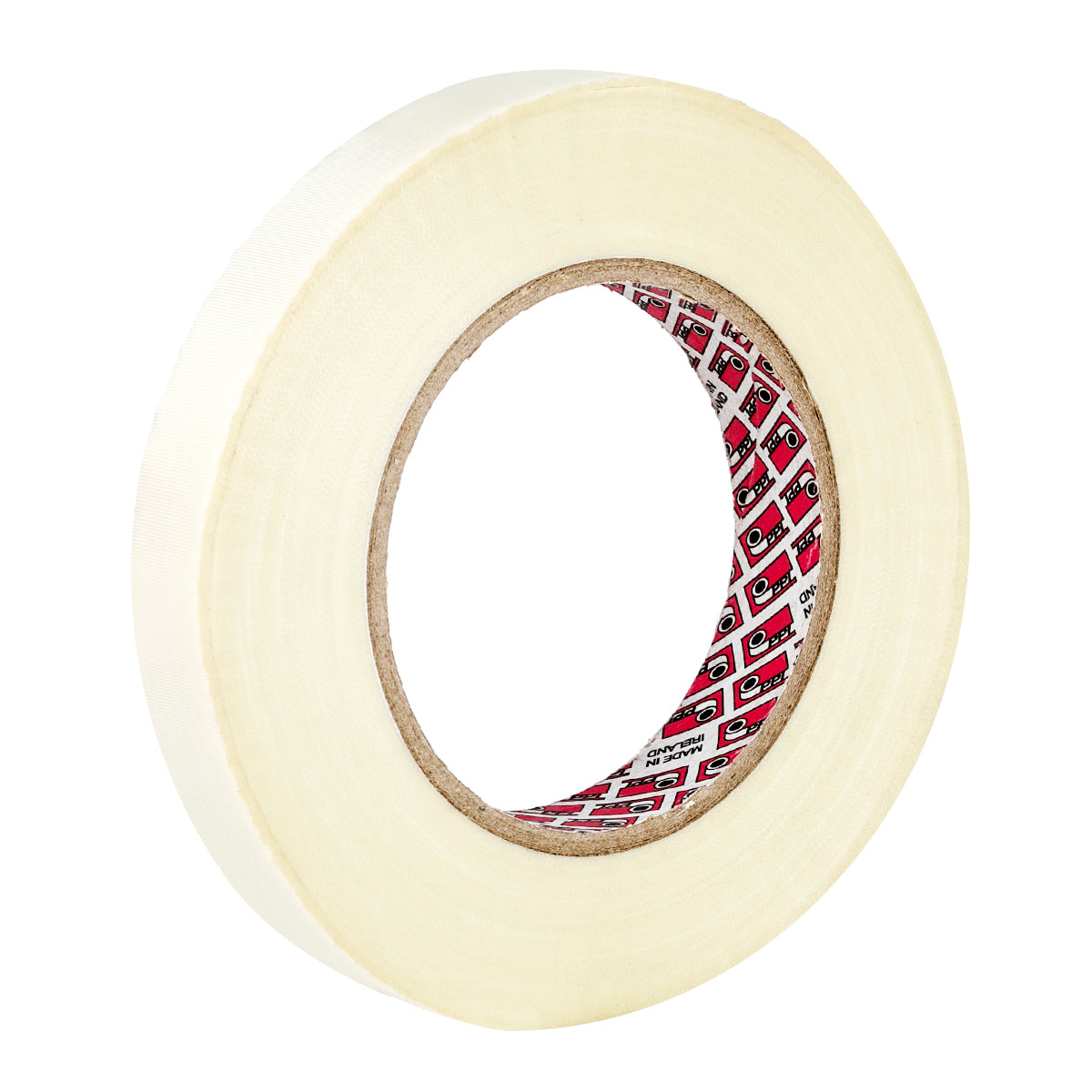

Croytape Glass Thermal Class F
Order by 2pm for next day UK delivery*
Product out of stock? Size not available? CONTACT US
DESCRIPTION
This tape is composed on inert, temperature resistant high tensile strength glass cloth with a partially cured thermosetting acrylic pressure sensitive adhesive. This adhesive may be further cured after application to provide outstanding resistant to oils, solvents, and chemicals.
APPLICATIONS
- Electrical insulation
- Harnessing
- Stress relief
- Interlayer insulation
- Motor repair
- Coil insulation
TECHNICAL INFO
|
Properties |
EN Value |
ASTM Value |
|
Ultimate Elongation: |
10% |
10% |
|
Tensile Strength: |
250 N/cm |
140 LBS/INCH |
|
Dielectric Strength: |
3000 VOLTS |
3000 VOLTS |
|
Electrolytic |
|
|
|
Corrosion Factor*: |
A 1.2 |
A 1.2 |
|
Combustibility: |
Bu 1 |
Bu1 |
|
Heat Class: |
F (TEMPERATURE ANGE UP TO 155°C |
|
|
Recommended Curing Cycle: |
1 Hour at 150°C |
|
|
Or 2 hours at 130°C |
||
FEATURES AND BENEFITS
- Good temperature resistance+
- Length: 50M
- Good mechanical resistance
- Highly conformable
- Varnish absorbent
- High tensile strength
MATERIAL DATA
|
Properties |
EN Value |
ASTM Value |
|
Supporting Base: |
Glasscloth |
|
|
Base Thickness: |
0.120 mm |
4.7 MIL |
|
Total Thickness: |
0.170 mm |
6.7 MIL |
|
Adhesive: |
Synthetic Resin Precured Thermosetting |
|
|
Adhesive Strength: |
3.0 N/cm |
28 OZ/INCH |
|
Adhesive Coating: |
Single-Faced |
|
|
Colour: |
White |
|
|
Length |
55M |
|
|
|
66M |
|
PRICE MATRIX
|
Size |
0-24 ROLLS |
25 ROLLS + |
|
12 X 55M |
£7.50 |
£6.97 |
|
19 X 55M |
£11.89 |
£11.04 |
|
25 X 55M |
£15.64 |
£14.52 |
|
32 X 55M |
£20.03 |
£18.60 |
|
38 X 55M |
£23.79 |
£22.09 |
|
50 X 55M |
£31.28 |
£29.04 |
