- Sku: 3321210

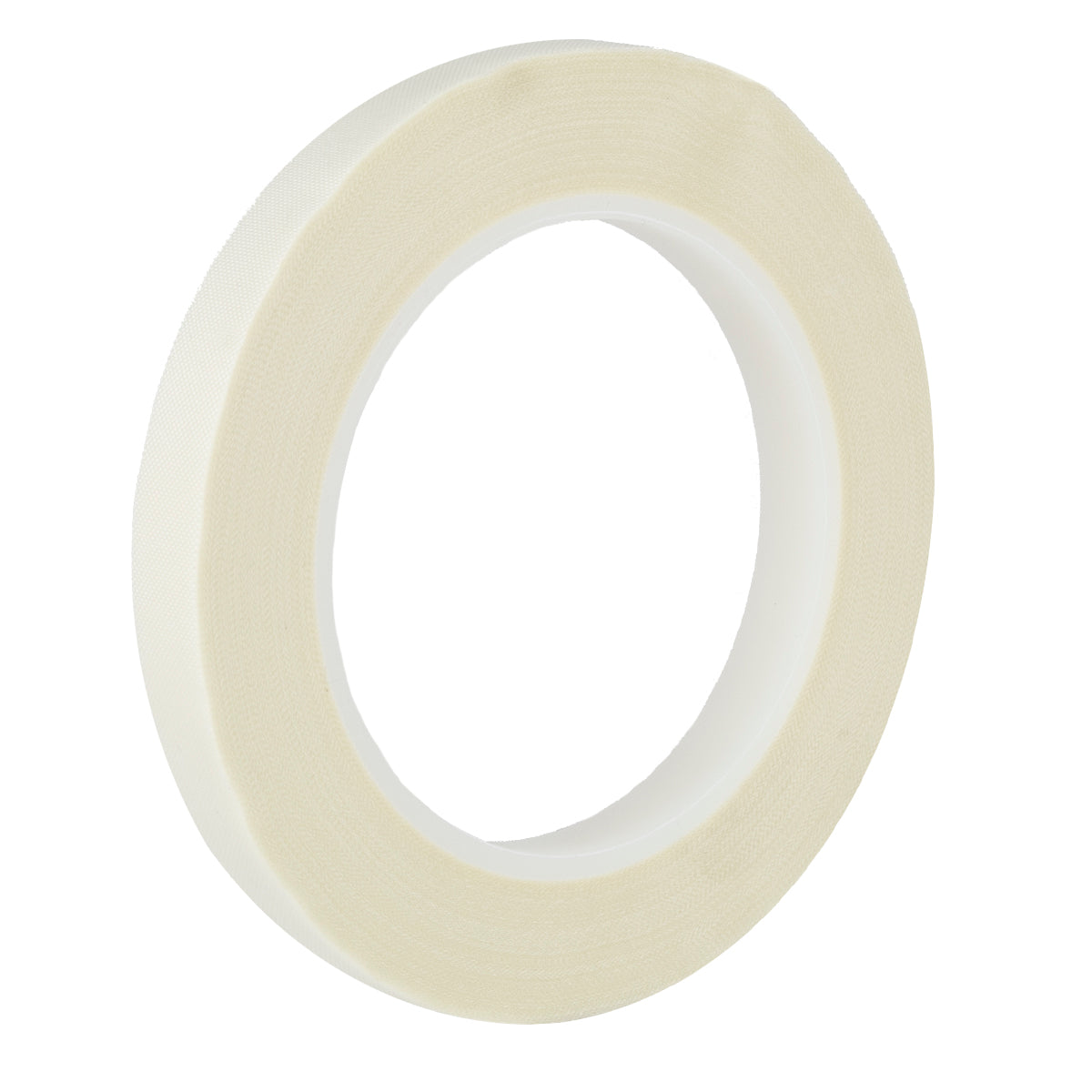

CroyTape Glass Thermal, Class H
£6.89 GBP
Order by 2pm for next day UK delivery*
Product out of stock? Size not available? CONTACT US
DESCRIPTION
This strong, flexible, high temperature tape is widely used for both thermal and mechanical ability. Designed to resist edge fraying, the materials are very good over long term ageing.
APPLICATIONS
- Electrical insulation
- Harnessing
- Stress relief
- Interlayer insulation
- Hold down
TECHNICAL INFO
| Physical Properties | US Measurements | Metric |
| Backing | Glass fabric | Glass fabric |
| Backing Thickness | 5.0 mils | 0.13mm |
| Total Thickness | 7.0 mils | 0.18mm |
| Adhesive System | Silicone | Silicone |
| Adhesion to Steel | 40.0 oz/in.width | 11.0 n/25.4mm |
| Insulation Class | 200°C | 200°C |
| Dielectric Strength | 3,000 Volts | 3,000 Volts |
| Tensile | 170.0 lbs./in.width | 744.0 n/25.4 mm. |
| Elongation | 8.0% | 8.0% |
| Color | White | White |
FEATURES AND BENEFITS
- Glass cloth backing provides abrasion protection and puncture resistance.
- Tape Length: 33M
- Silicone adhesive system delivers under extreme temperature conditions
- Resists contamination from solvents and chemicals
- Meets U.S. government specification MIL-19166c.
- UL Listed under file number E82910
MATERIAL DATA
| Operating Temperature | 180°C |
| Thermal Class | H |
| Dielectric Strength | 2.5 Kv |
| Tensile Strength | 850 N/25mm |
| Adhesion | 8.5 N/25mm |
PRICE MATRIX
| SIZE | 0-24 RLS | 25+ RLS |
| 12MM | £6.89 | £6.40 |
| 15MM | £8.65 | £8.03 |
| 19MM | £11.04 | £10.22 |
| 25MM | £14.36 | £13.34 |
| 50MM | £29.23 | £27.14 |
