- Sku: 9130008

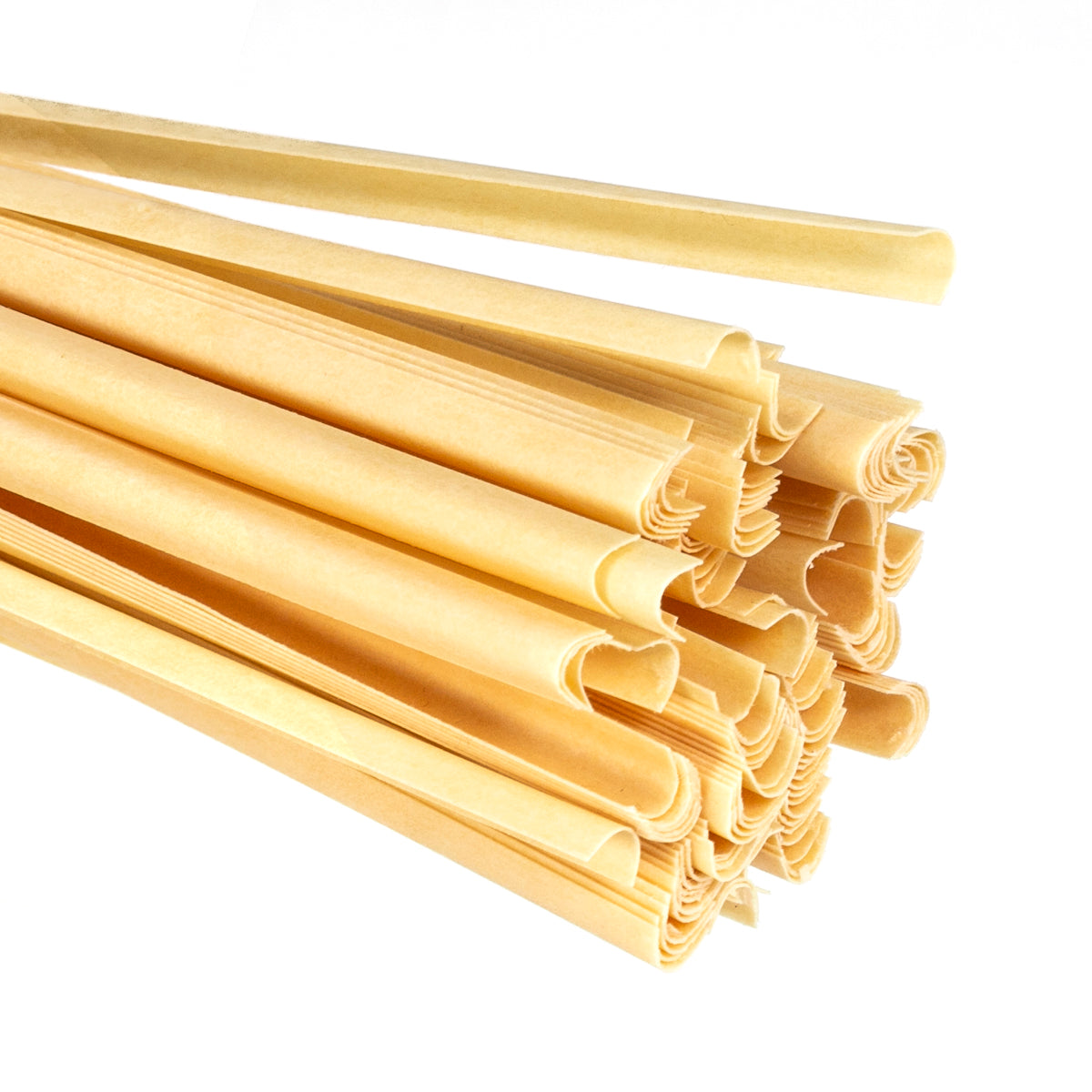

DMD Slot Closures
£12.46 GBP
Order by 2pm for next day UK delivery*
Product out of stock? Size not available? CONTACT US
DESCRIPTION
Slot closures are made in polyester film (class B), in Thernomid 20.04 VF (Class F), and in NMN (class H) and are designed for perfect adaption to slot openings of various sizes.Our slot closures complement both DMD and NMN slot insulations, commonly used in class F rotating machines for liners and interphase insulation.
APPLICATIONS
- Electrical motors: slot insulation and slot closing phase separation
- Transformers: dry and casted for interlayers insulation
- Rotating machines
- Interphase insulation
FEATURES AND BENEFITS
- In accordance with CEI 626
- Material registered under UL E157509
- Compatible with impregnation varnishes and resins.
MATERIAL DATA
| Operating Class | Class F |
| Approval | E157509 |
| Thickness | 0.35mm |
| Tolerance +/-1..% | 10 |
| Film Thickness | 250 |
| Weight | 432 g/m2 |
| Yield | 2.3 m2/kg |
| Tensile Strength MD | 350 N/cm |
| Elongation MD | 20% |
| Tensile Strength TD | 300 N/cm |
| Elongation TD | 50% |
| Breakdown Voltage | 18 kV |
PRICE MATRIX
|
Size (mm) Half Round |
Price per 100 mtrs |
|
8 |
£12.46 |
|
10 |
£13.30 |
|
12 |
£27.28 |
|
15 |
£19.94 |
|
18 |
£24.24 |
|
21 |
£28.38 |
|
24 |
£32.34 |
|
28 |
£36.08 |
