- Sku: 2000101

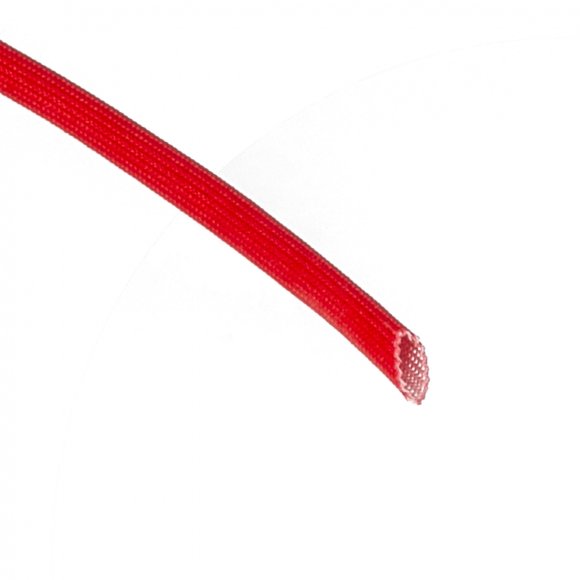

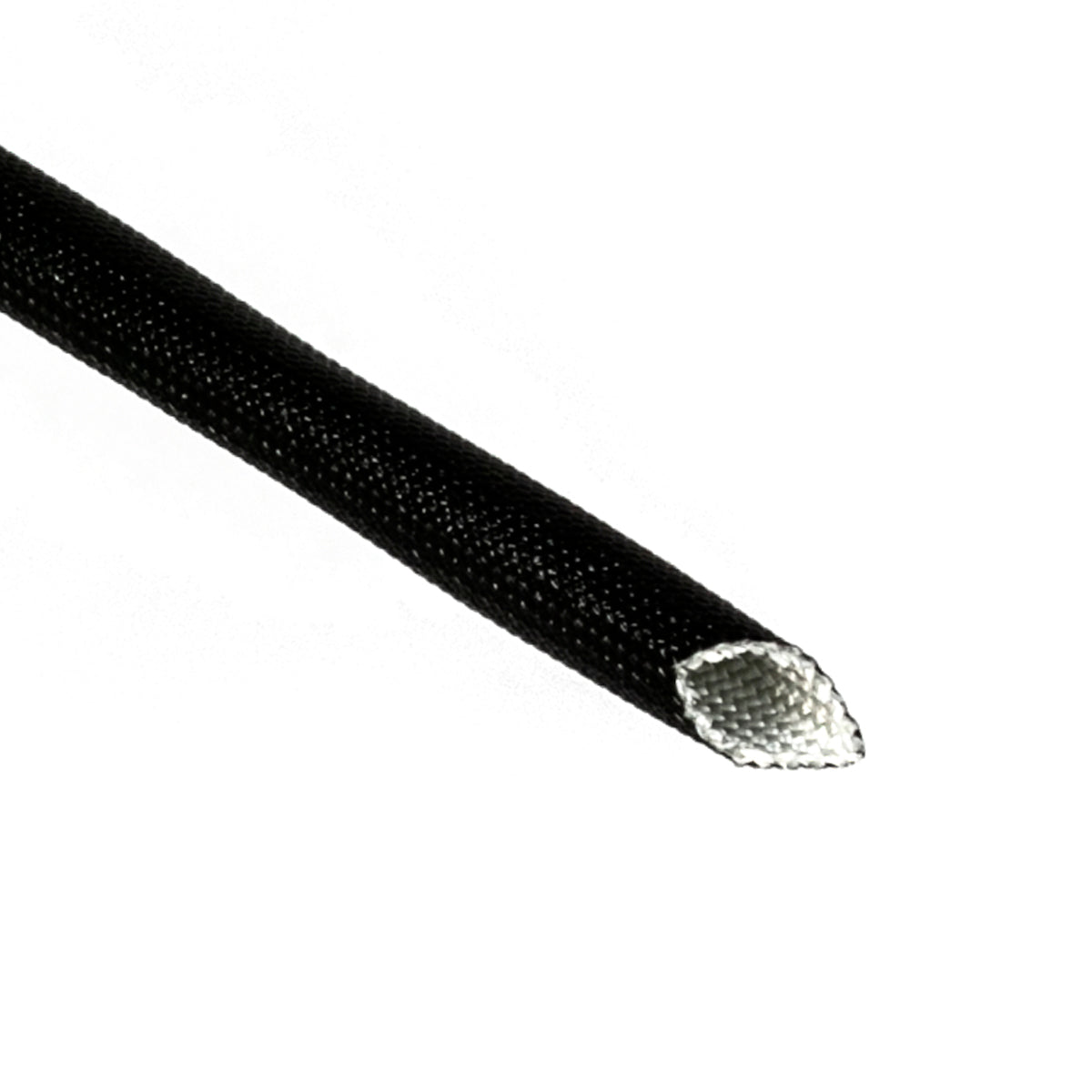

Relats Heat Resistant Braided Cable Sleeving/Tubing, 1kV
Order by 2pm for next day UK delivery*
Product out of stock? Size not available? CONTACT US
Get Your Sleeving Cut to Length
Get Your Sleeving Cut to Length
Save time and money
Minimum order is just one reel
Add a note to your order with the required length and we'll get back to you with a quote
DESCRIPTION
This is a Class F electrical insulating sleeving impregnated with acrylic resin/ making it a tough and flexible insulation material. It possesses good electrical and mechanical strength and has excellent compatibility with Class F impregnating resins and varnishes, making it ideal for protecting electrical conductors and terminals.
Please note: Care should be taken to minimise dust formation during handling and cutting this glass based material as dust or broken particles may cause skin irritation.
Note: Standard colour: Yellow and Black
Other diameters supplied
APPLICATIONS
- Harnessing
- Mechanical protection
- Electrical insulation
- Motor and transformers
- Lighting
- Domestic appliances
TECHNICAL INFO
| Property | Test | Result |
| Heat Resistance | Bending after heating IEC 60684 Part 2 Clause 13 48 hours at 180 |
No cracking or detachment of coating shall be visible and the original colours shall be clearly recognisable. |
| Flammability | Flame propagation IEC 60684 Part 2 Clause 6 Method A Vertical with mandrel |
Extinguishes within 60 seconds. |
| Cold Resistance | Bending at low temperature: IEC 60684 Part 2 Clause 14 At -70 |
No cracking or detachment of coating shall be visible. |
DIMENSIONS
| Reference | Nominal bore (mm) | Bore tolerance (mm) | Minimum Wall thickness (mm) | Standard Packaging (m) |
| VAC15_ _005 | 0.5 | + 0.20 | 0.20 | 400 |
| VAC15_ _010 | 1.0 | + 0.20 | 0.25 | 300 |
| VAC15_ _015 | 1.5 | + 0.20 | 0.25 | 300 |
| VAC15_ _020 | 2.0 | + 0.20 | 0.25 | 200 |
| VAC15_ _025 | 2.5 | + 0.20 | 0.25 | 200 |
| VAC15_ _030 | 3.0 | + 0.30 | 0.25 | 200 |
| VAC15_ _040 | 4.0 | + 0.30 | 0.35 | 200 |
| VAC15_ _050 | 5.0 | + 0.30 | 0.35 | 100 |
| VAC15_ _060 | 6.0 | + 0.30 | 0.35 | 100 |
| VAC15_ _070 | 7.0 | + 0.30 | 0.35 | 100 |
| VAC15_ _080 | 8.0 | + 0.50 | 0.35 | 100 |
| VAC15_ _100 | 10.0 | + 0.50 | 0.35 | 100 |
| VAC15_ _120 | 12.0 | + 0.50 | 0.45 | 50 |
| VAC15_ _140 | 14.0 | + 0.50 | 0.45 | 50 |
| VAC15_ _160 | 16.0 | + 0.50 | 0.45 | 50 |
| VAC15_ _180 | 18.0 | + 0.50 | 0.55 | 50 |
| VAC15_ _200 | 20.0 | + 0.50 | 0.55 | 25 |
| VAC15_ _220 | 22.0 | + 0.50 | 0.60 | 25 |
| VAC15_ _250 | 25.0 | + 0.50 | 0.60 | 25 |
FEATURES AND BENEFITS
- Good flexibility – electrical properties maintained after flexing
- Good temperature resistance
- Excellent chemical resistance (oils, fluids, aggressive chemical agents)
- Good mechanical resistance
- Halogen free
- Non fraying
- Good abrasion resistance
- Compatible with most insulating varnishes
MATERIAL DATA
|
Product Code |
200 |
|
Material |
Acrylic Coated Braided Fibre Glass |
|
Standard Colour |
Natural, Black, Red |
|
Operating Temperature – °C |
-25 – +155 |
|
Relevant Specifications |
IEC 60684 Part 2, UL1441 |
DIELECTRIC STRENGTH
|
Test |
Method |
VAC10 |
|
IEC 60684 |
250 mm.Inst. B/D Central Value (kV) |
0,8 |
|
IEC 60684 |
250 mm.Inst. B/D Central Value (kV) |
0,7 |
|
UL 1441 |
25 mm.Inst B/D (kV) |
1,0 |
PRICE MATRIX
|
SIZE (mm) |
1-1499 Metres |
1500+ Metres |
|
0.50 |
£12.54 |
£11.68 |
|
1.00 |
£13.54 |
£12.61 |
|
1.50 |
£18.75 |
£17.46 |
|
2.00 |
£18.04 |
£16.79 |
|
3.00 |
£25.24 |
£23.50 |
|
4.00 |
£30.71 |
£28.59 |
|
5.00 |
£37.05 |
£34.49 |
|
6.00 |
£42.08 |
£39.18 |
|
7.00 |
£49.75 |
£46.32 |
|
8.00 |
£64.83 |
£60.36 |
|
9.00 |
£75.79 |
£70.56 |
|
10.00 |
£88.20 |
£82.12 |
|
12.00 |
£101.18 |
£94.20 |
