- Sku: 9100008

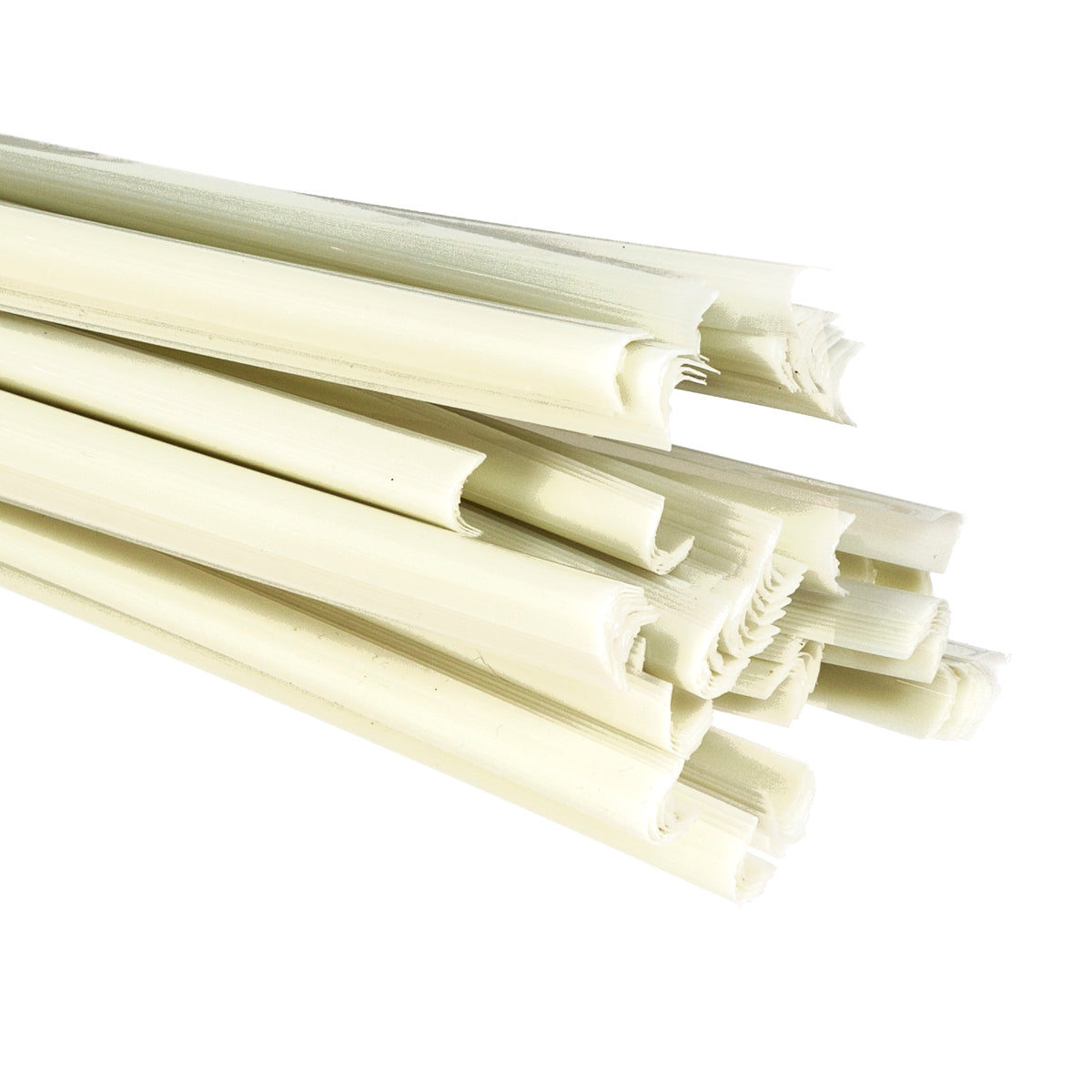

NMN Slot Closures, bundle of 100 in 1m lengths
£28.90 GBP
2pm cutoff for next day UK delivery*
Size or colour out of stock? Contact us
International customers: shipping will be calculated after checkout
DESCRIPTION
Slot closures are made in polyester film (class B), in Thernomid 20.04 VF (Class F), and in NMN (class H) and are designed for perfect adaption to slot openings of various sizes. Our slot closures complement both DMD and NMN slot insulations, commonly used in class F rotating machines for liners and interphase insulation.
APPLICATIONS
- Electrical motors: slot insulation and slot closing phase separation
- Transformers: dry and casted for interlayers insulation
- Rotating machines
- Interphase insulation
FEATURES AND BENEFITS
- In accordance with CEI 626
- Material registered under UL E157509
- Compatible with impregnation varnishes and resins
MATERIAL DATA
| Operating Class | Class H |
| Approval | E157509 |
| Thickness | 0.37mm |
| Tolerance | 10 |
| Film Thickness | 250 µm |
| Weight | 443 g/m2 |
| Yield | 2.3 m2/kg |
| Tensile Strength MD | 330 |
| Elongation MD | 20% |
| Peak Breakdown Voltage | 23 kV |
PRICE MATRIX
|
Size (mm) Half Round |
Price per 100 mtrs |
|
8 |
£28.90 |
|
10 |
£19.56 |
|
12 |
£23.46 |
|
14 |
£28.31 |
|
15 |
£29.30 |
|
16 |
£31.21 |
|
18 |
£35.64 |
|
19 |
£38.79 |
|
21 |
£41.37 |
|
24 |
£47.54 |
|
25 |
£48.58 |
