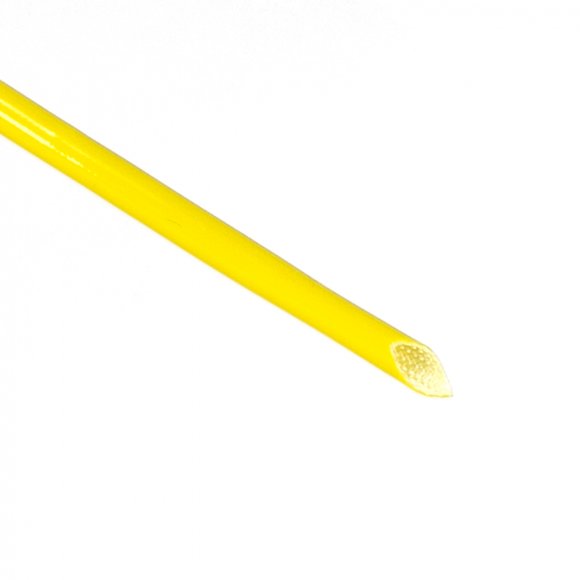

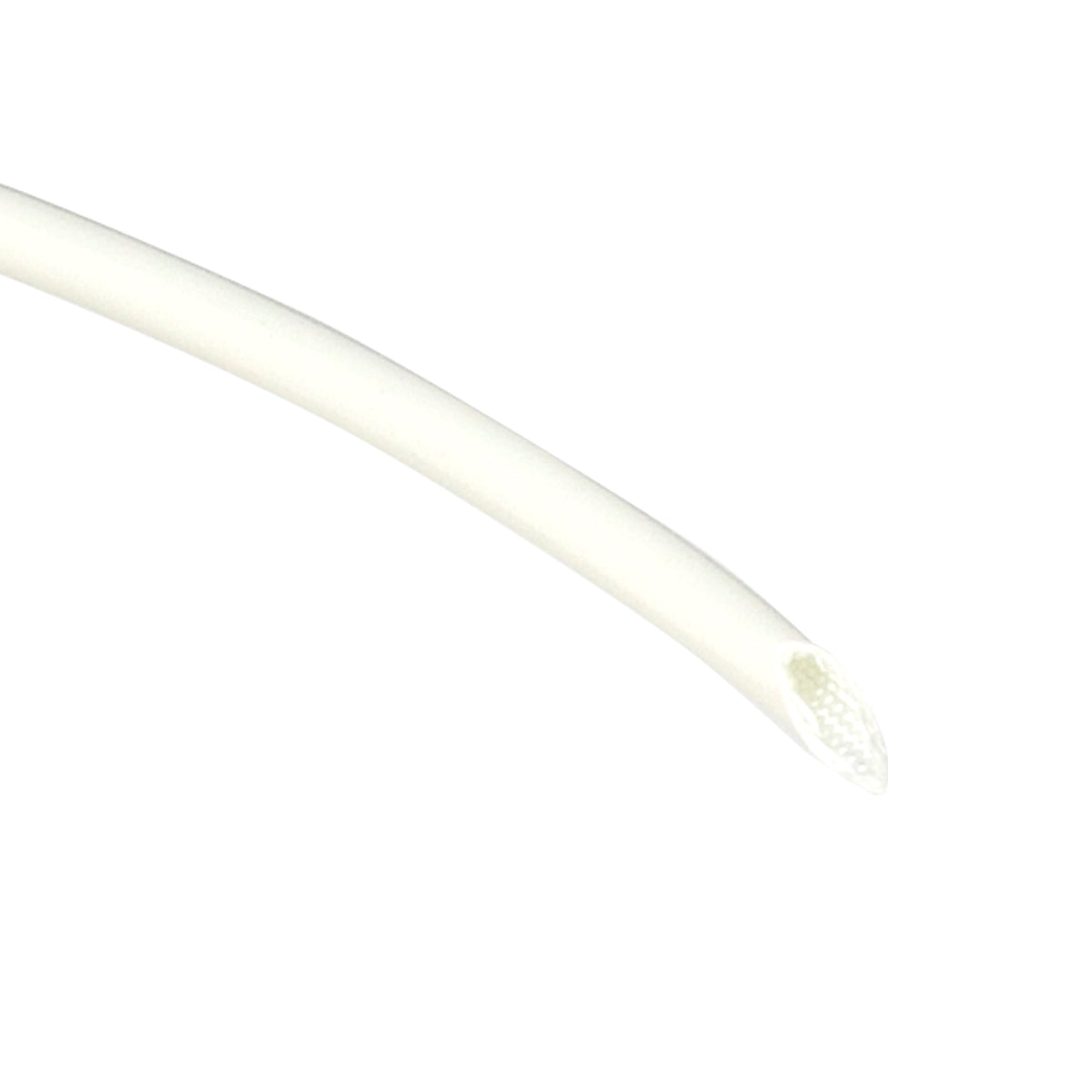

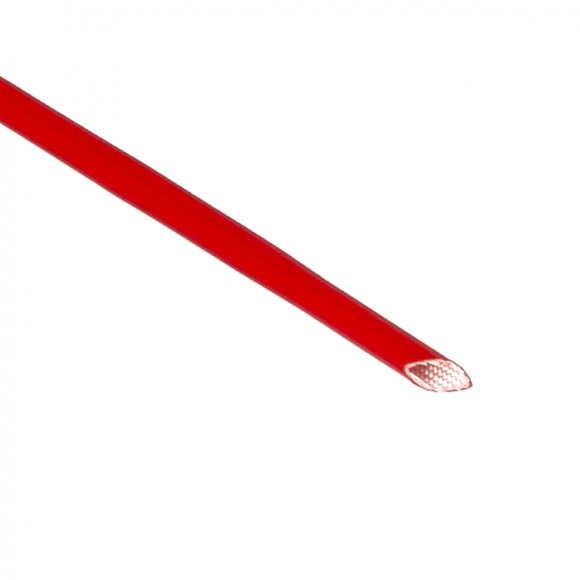

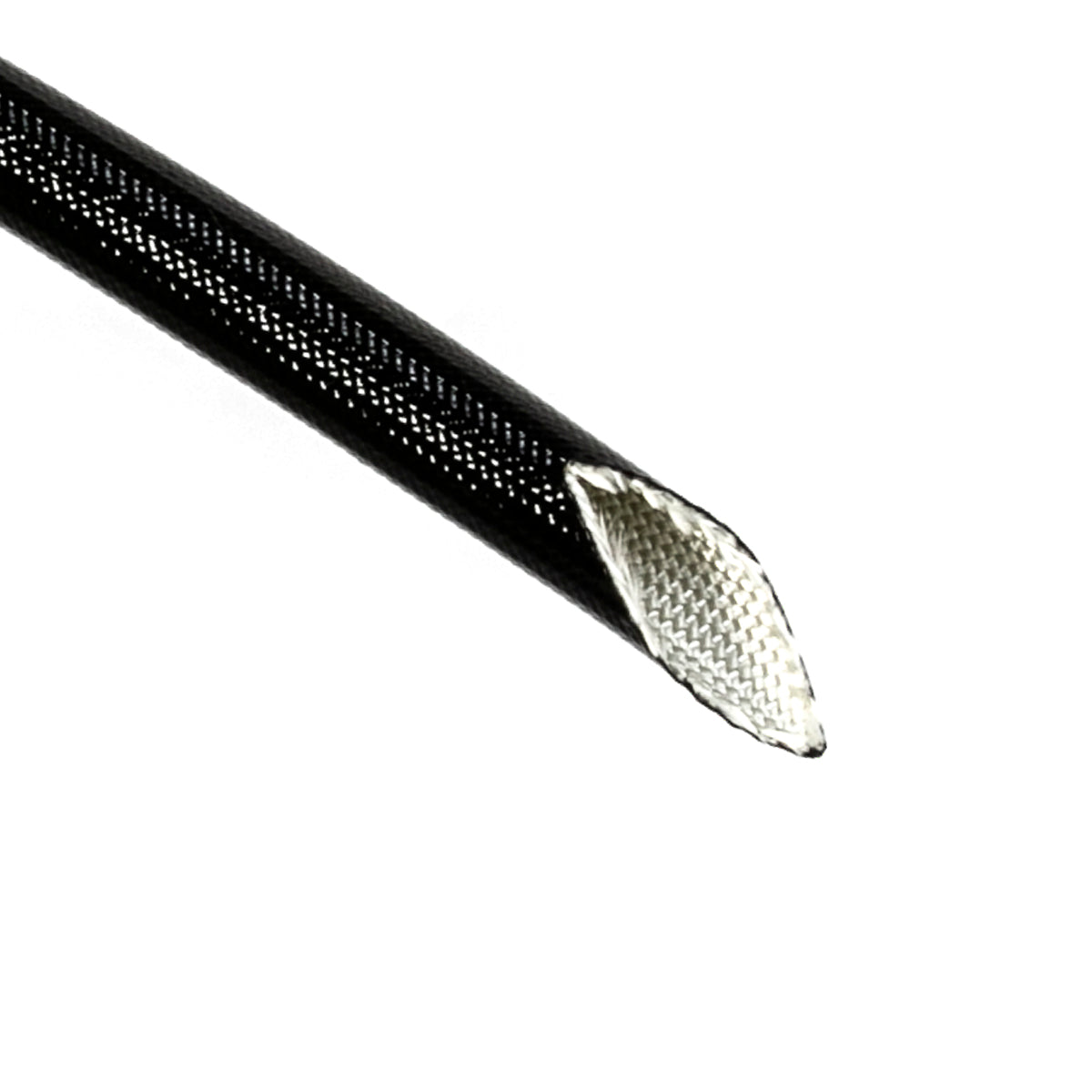

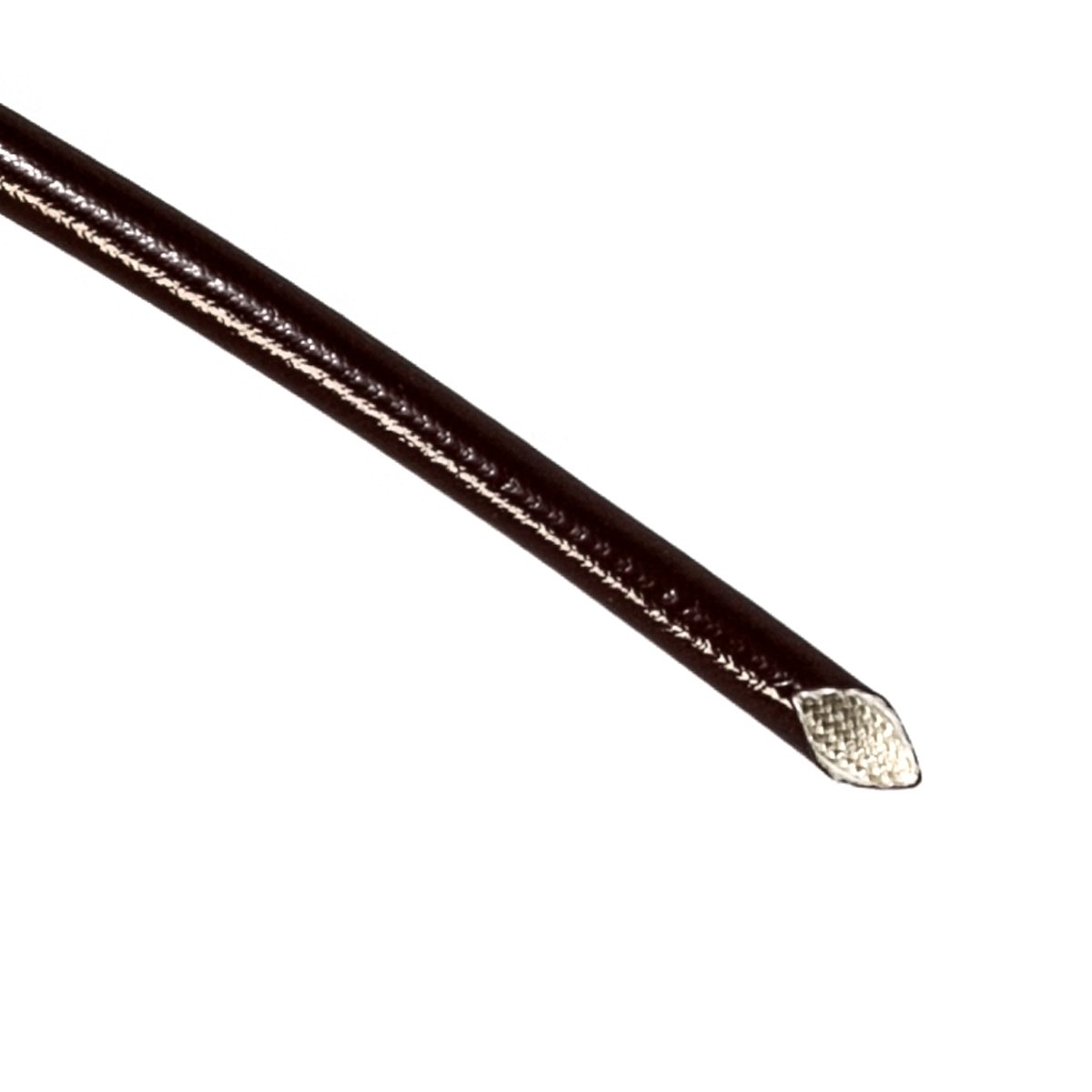

Relats Acrylic-Coated Braided Cable Sleeving/Tubing, 8kV

Sleeve Colour
Sleeve Size

Datasheet

Price per Reel (300m per Reel)
£137.33 GBP

Order by 2pm for next day UK delivery*

Product out of stock? Size not available? CONTACT US

View full details

Get Your Sleeving Cut to Length

Get Your Sleeving Cut to Length

Save time and money

Minimum order is just one reel

Add a note to your order with the required length and we'll get back to you with a quote

DESCRIPTION

This is a fibreglass braid saturated in acrylic varnish making it a tough and flexible insulation material. It possesses good electrical and mechanical strength and has excellent compatibility with Class F impregnating resins and varnishes, making it ideal for protecting electrical conductors and terminals.

Please note: Care should be taken to minimise dust formation during handling and cutting this glass based material as dust or broken particles may cause skin irritation.

APPLICATIONS

  • Harnessing
  • Mechanical protection
  • Electrical insulation
  • Motor and transformer insulation

TECHNICAL INFO

Property Test Result
Heat Resistance Bending after heating IEC 60684 Part 2 Clause 13 48 hours at 180°C
UL 1441-60 days at 190°C		 No cracking or detachment of coating shallbe visible and the original colours shall be clearly recognisable
Dielectric strength after ageing: average breakdown 5000V.
Flammability Flame propagation IEC 60684 Part 2 Clause 26 Method A Vertical with mandrel
UL 1441 Horizontal Flame test		 Extinguishes within 60 seconds
Passes.
Cold Resistance Bending at low temperature: IEC 60684 Part 2 Clause 14 At -70°C
UL 1441-1h.at -10°C		 No cracking or detachment of coating shall be visible
No cracking.
Chemical Resistance Simulation of real operating conditions Compatible with most insulating varnishes

DIMENSIONS

Reference Nominal bore (mm) Bore tolerance (mm) Minimum Wall thickness (mm) Standard Packaging (m)
VAC80_ _005 0.5 + 0.20 0.28 400
VAC80_ _008 0.8 + 0.20 0.35 400
VAC80_ _010 1.0 + 0.20 0.38 400
VAC80_ _015 1.5 + 0.20 0.38 300
VAC80_ _020 2.0 + 0.20 0.38 200
VAC80_ _025 2.5 + 0.20 0.46 200
VAC80_ _030 3.0 + 0.20 0.46 200
VAC80_ _035 3.5 + 0.20 0.46 200
VAC80_ _040 4.0 + 0.40 0.51 200
VAC80_ _050 5.0 + 0.50 0.51 100
VAC80_ _060 6.0 + 0.50 0.51 100
VAC80_ _070 7.0 + 0.50 0.51 100
VAC80_ _080 8.0 + 0.50 0.64 100
VAC80_ _090 9.0 + 0.60 0.64 100
VAC80_ _100 10.0 + 0.60 0.64 100
VAC80_ _120 12.0 + 0.60 0.64 50
VAC80_ _140 14.0 + 0.70 0.64 50
VAC80_ _160 16.0 + 0.70 0.64 50
VAC80_ _180 18.0 + 0.90 0.64 25
VAC80_ _200 20.0 + 0.90 0.64 25

FEATURES AND BENEFITS

  • Good flexibility – electrical properties maintained after flexing
  • Good temperature resistance
  • Excellent chemical resistance (oils, fluids, aggressive chemical agents)
  • Good mechanical resistance
  • Halogen free
  • Non fraying
  • Good abrasion resistance
  • Compatible with most insulating varnishes

MATERIAL DATA

Product Code 212
Material Acrylic
Standard Colour Natural, Black, Red, Yellow
Operating Temperature – °C -25  –  +155
Dielectric Strength – kV 8
Relevant Specifications UL 1441, IEC 60684 Part 3
  UL Recognized File no: E121222

DIELECTRIC STRENGTH

Test Method VAC80 UL GRADE
IEC 60684 250 mm.Inst. B/D Central Value (kV) 7.0
IEC 60684 250 mm.Inst. B/D Lowest Value (kV) 6.0
DIN 40620 200 mm. 60 sec. Proof. ( kV) 5.0
UL 1441 25 mm.Inst B/D (kV) 8.0

PRICE MATRIX

SIZE COLOUR Reel Size
 1-1499 Mtrs 1500 Mtrs +
1.5MM BLACK 300m £0.4578 £0.4262
1.5MM YELLOW 300m £0.4578 £0.4262
2.5MM NATURAL 200m £0.6515 £0.6066
2.5MM BLACK 200m £0.6515 £0.6066
2.5MM RED 200m £0.6515 £0.6066
2.5MM YELLOW 200m £0.6515 £0.6066
3MM BROWN 200m £0.6625 £0.6168
3MM YELLOW 200m £0.6625 £0.6168
4MM BLACK 200m £0.9070 £0.8444
4MM RED 200m £0.9070 £0.8444
4MM YELLOW 200m £0.9070 £0.8444
7MM BLACK 100m £1.5213 £1.4164
7MM YELLOW 100m £1.5213 £1.4164
8MM NATURAL 100m £1.5698 £1.4615
8MM BLACK 100m £1.5698 £1.4615
